Calendering Machine GT-D24 Calendering Machine GT-D24 Calendering Machine GT-D24 Calendering Machine GT-D24 Calendering Machine GT-D24

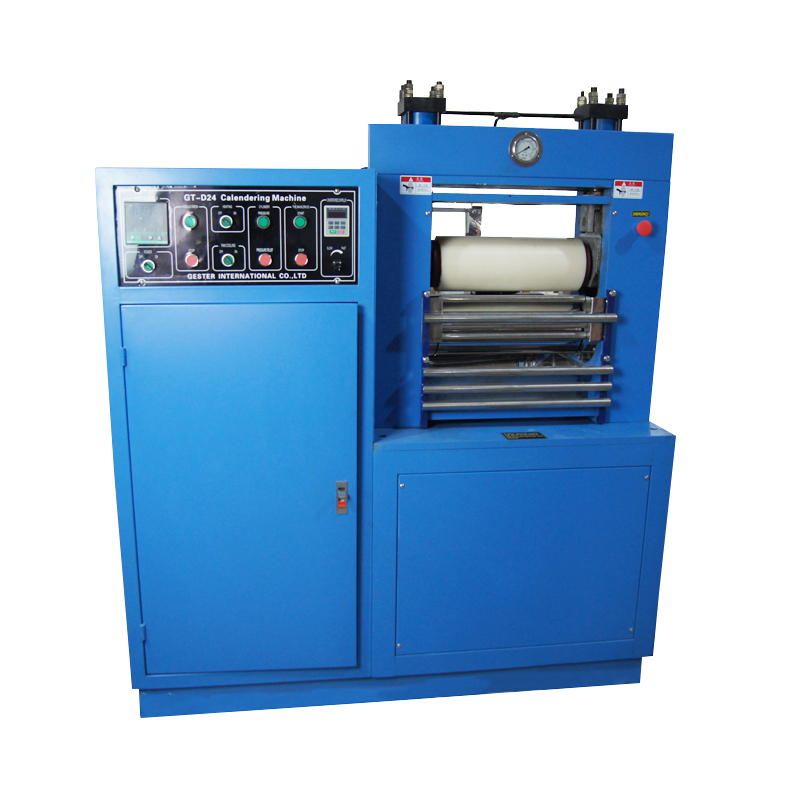

Calendering Machine GT-D24
  • Brand:

    GESTER
  • Item No.:

    GT-D24
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    China Port
  • Lead Time:

    30 days
  • Payment:

    T/T, L/C
contact now

Calendering Machine GT-D24


Product Introduction

Application:

This Calendering Machine is used in dyeing and finishing process in laboratory. The machine is mainly used help to adjust the formula of fabric and auxiliaries. It can be applied to the calendering process of pure cotton, polyester cotton, silk fabrics, chemical fiber, fiber, wool spinning and other combination fabric, as well as roll compacting process of building materials, plastic packaging materials and paper products.



Feature


1.This machines equipped with a pair of roller, the upper one is nylon roller which can resist temperature up to 180℃, and the lower one is chromeplate heating roller which can let the fabric have different luster by heat, friction and press.
2.Hydraulic pressure model can make the lineal pressure up to 5T.

3.Equipped with emergency stop to protect the machine and operators.


Dimensions



Calendering Machine



Key Specifications

Model

GT-D24

The upper roller

Nylon Roller, 150×400mm

The lower roller

Chromeplate Roller, 150×400mm

Rotate Speed

0-6m/Min

Compression Method

Hydraulic Type, The Largest Line Pressure 5T.

Heating Mode

Electrical Heating , 3KW

Safety Devices

Shield, and Emergency Stop Switch

Rollers Position

Vertical

Dimensions

1450×550×1400mm

Weight

700kg



Application Industry

All kinds of materials can be tested on the Calendering Machine

  Calendering Machine
