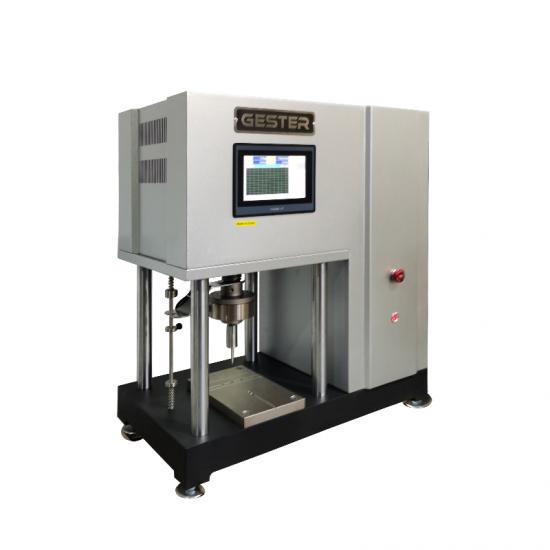

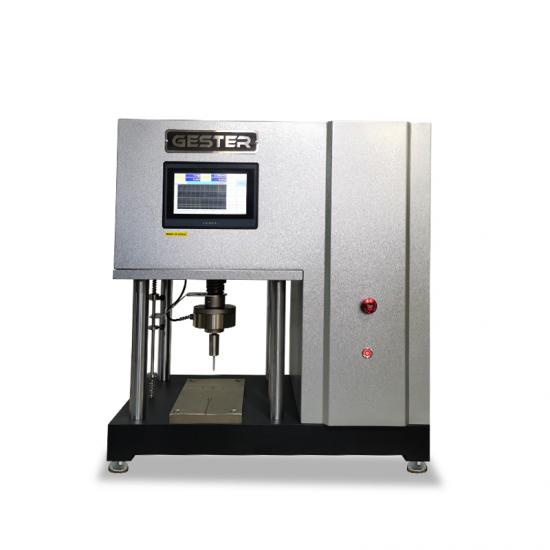

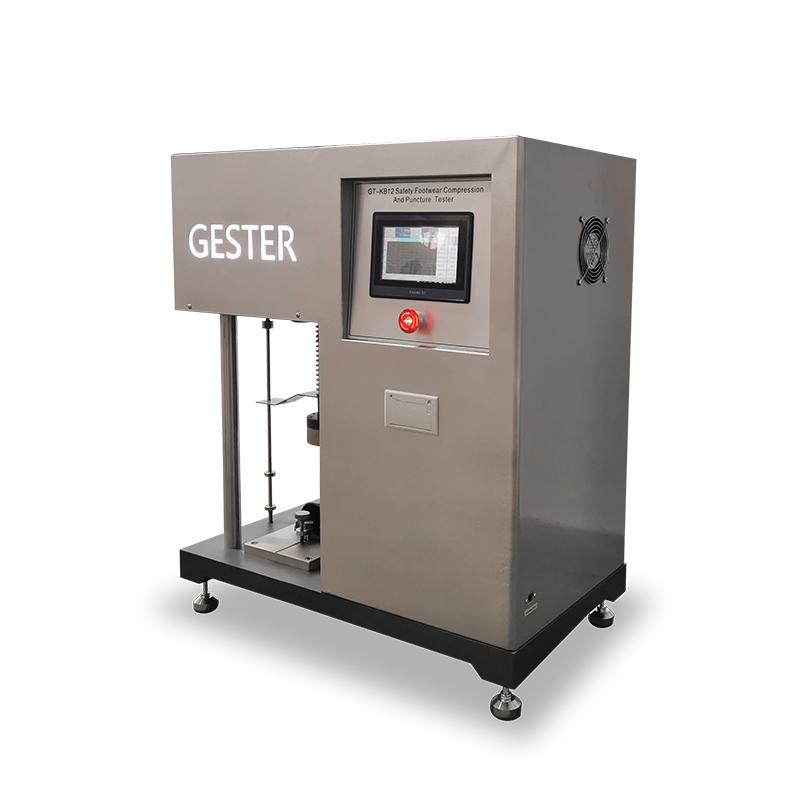

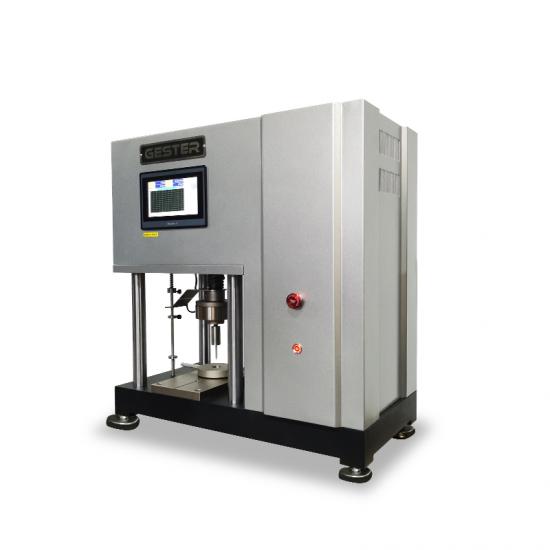

The GESTER GT-KB12B is a professional PPE testing equipment designed to evaluate the toecap compression resistance and sole puncture resistance of safety footwear. Built with a robust 50 KN loading capacity, it precisely measures internal clearance under heavy static crushing loads and evaluates penetration force through steel or composite anti-puncture insoles.
This Safety shoe compression puncture tester complies with standards including ISO 20344, ISO 20345, ASTM F2413, EN 12568, EN 388. It is an essential testing solution for PPE quality control laboratories and safety shoe manufacturers worldwide.
Brand:
GESTERItem NO.:
GT-KB12BOrder(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail
Compression And Puncture Tester GT-KB12B
Application:
Standards
EN12568, EN 344, EN 388
ASTM F2412, ASTM F2413
GB/T 20991, GB/T12017
ISO 20344, ISO 20345, ISO 22568
BS-953, NOM-113-STPS, CSA Z 195, AS/NZS2210.2
|
Model |
GT-KB12B |
|
Max. Capacity |
50KN |
|
Force Resolution |
1/10000 |
|
Force Accuracy |
≤+/-0.2%FS |
|
Stroke Range |
0-300mm |
|
Stroke Resolution |
0.01mm |
|
Compression Load |
15KN or 10KN |
|
Test Nail |
Ø4.5mm, Ø3.0±0.03mm |
|
Compression Speed |
5±2mm/min |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions |
84x61x78cm |
|
Weight |
156kg |
Accessories
Standards accessories
1pc
Compression platen
2pcs
Test nail
1set
Lower clamp for compression test for shoe
3 Sets
Lower clamp for puncture test for shoe
1Set
English software
1pc
Power line
Optional accessories
EN 388 Lower clamp for glove puncture test (inner dimension 20mm)
ASTM F2412/F2413 Lower clamp for compression test
