The GESTER GT-KB12A Compression and Puncture Tester is engineered to evaluate the protective performance of safety footwear. Specifically designed for universal safety compliance, it measures both the compression resistance of protective toe caps (steel or composite) and the puncture penetration resistance of protective sole insoles/plates.
Featuring a maximum force capacity of 30 KN with high-precision strain gauge sensors (≤+/-0.2%FS), the GT-KB12A ensures safety shoes satisfy stringent global PPE regulations, including ISO 20344, ISO 20345, EN 12568, and ASTM F2412/F2413.
Brand:
GESTERItem NO.:
GT-KB12Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
10-30 daysProduct Detail

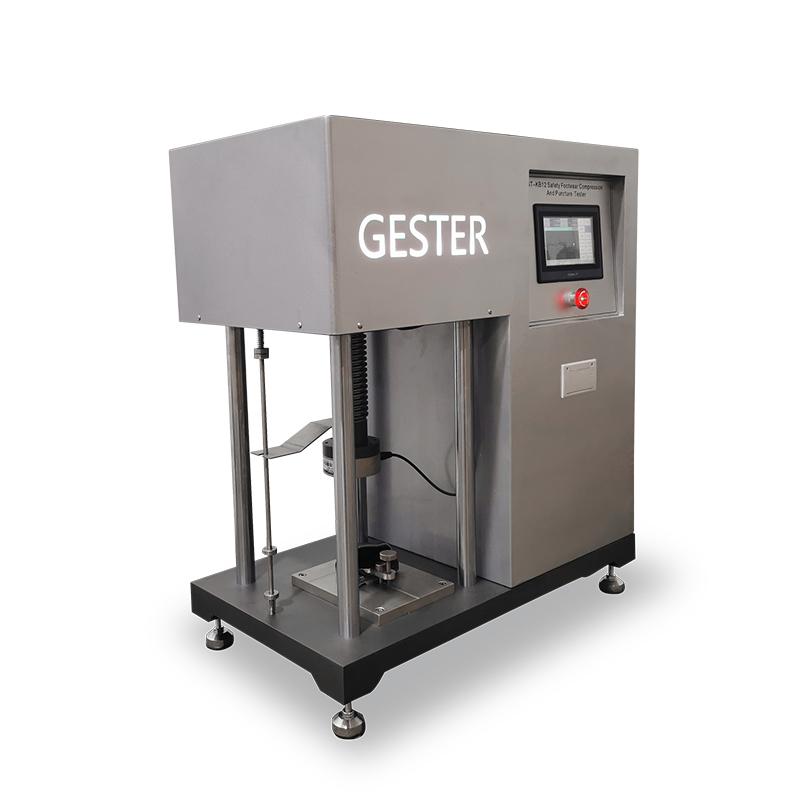

Compression And Puncture Tester GT-KB12A
Compression And Puncture Tester is used to measures the compression strength for safety shoes toecap and puncture-resistant performance for sole steel plate.It is suitable for all types of safety shoes toecap compression testing and sole steel plate puncture resistant test, and to prevent the injury of accident to operators in the workplace by wearing owing to the security of shoes.
Standards:
ISO 20344 / ISO 20345 Section 5.5 (Toecap Compression) & Section 5.8/5.9/5.10 (Penetration Resistance)
ISO 22568-1 / 22568-2 / 22568-3 / 22568-4 – Foot and leg protectors — Requirements and test methods for footwear components
EN 12568 / EN 344-1 / EN 388 – Requirements and test methods for toecaps and penetration resistant inserts
ASTM F2412 / ASTM F2413 Section 5.3, 5.4, 5.8 & Section 6, 11 – Protective Footwear Performance Requirements
GB/T 20991 / GB/T 12017 / AS/NZS 2210.2 / CSA Z195 / BS 953 / NOM-113-STPS
Applications & Scope:
Safety Footwear Manufacturing: Testing steel, aluminum, and composite toecaps against crush loads.
Sole Insert Compliance: Testing steel plates, Kevlar inserts, and anti-puncture midsoles against sharp object penetration.
Personal Protective Equipment (PPE) Testing Labs: Third-party certification according to ISO 20345 / ASTM F2413.
|
Model |
GT-KB12A |
|
Max. Capacity |
30KN |
|
Force Resolution |
1/10000 |
|
Force Accuracy |
≤+/-0.2%FS |
|
Stroke Range |
0-300mm |
|
Stroke Resolution |
0.01mm |
|
Compression Load |
15KN or 10KN |
|
Test Nail |
Ø4.5mm, |
|
Compression Speed |
5±2mm/min |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions |
84x61x78cm |
|
Weight |
156kg |
Accessories:
Standards accessories
1pc
Compression platen
2pcs
Test nail
1set

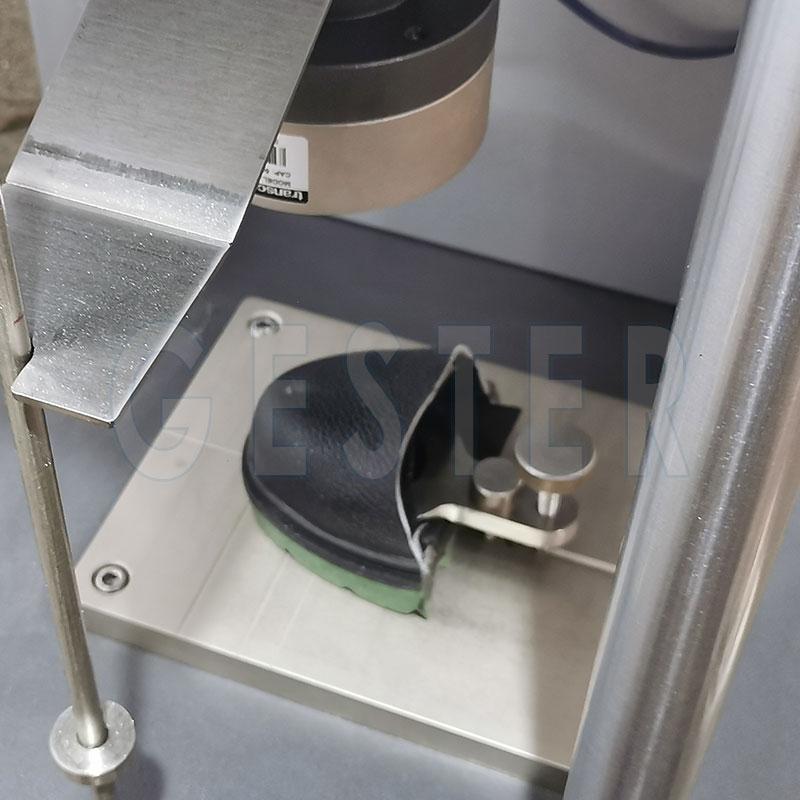

Lower clamp for compression test for shoe
3 Sets

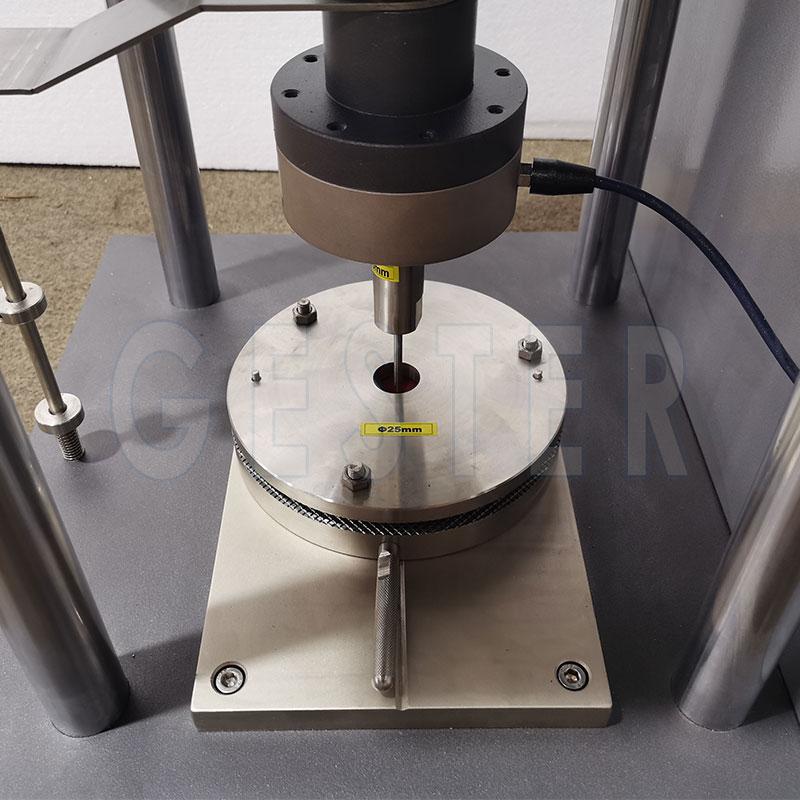

Lower clamp for puncture test for shoe
1Set

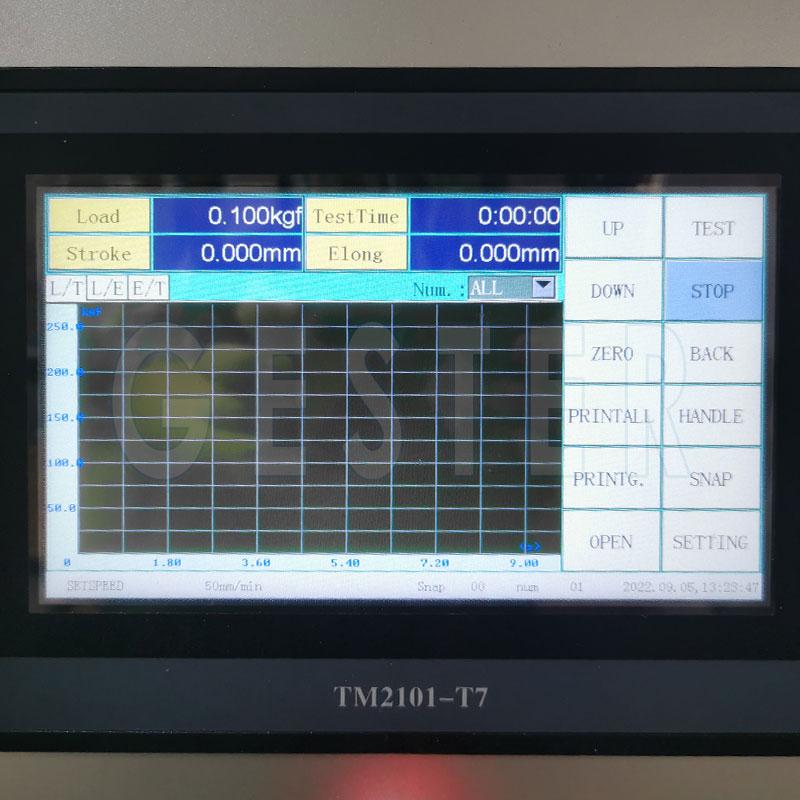

English software
1pc
Power line
Optional accessories
EN 388 Lower clamp for glove puncture test (inner dimension 20mm)
ASTM F2412/F2413 Lower clamp for compression test
