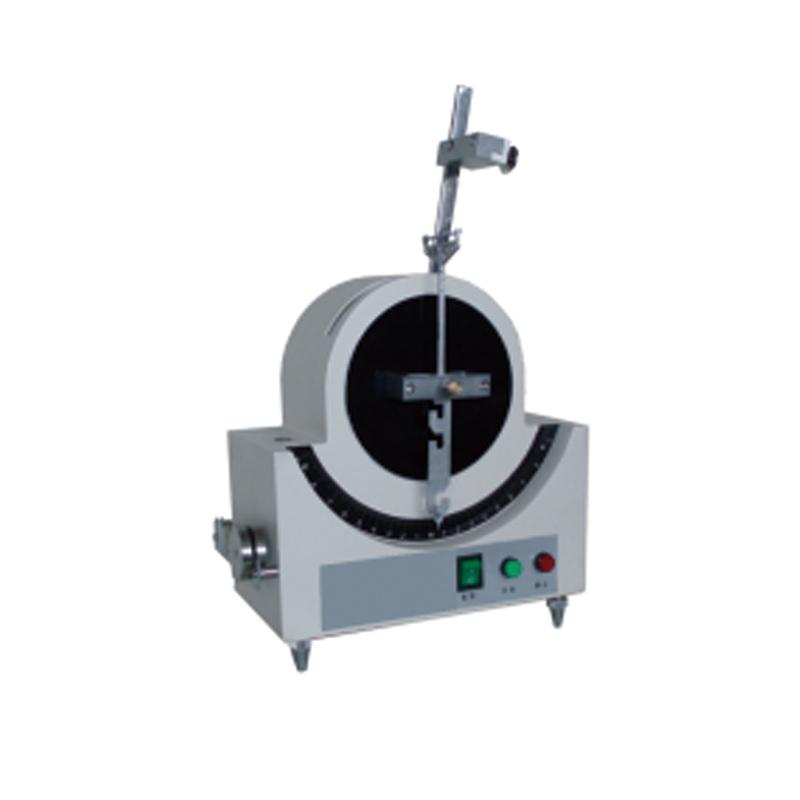

Gurley Stiffness Tester GT-N33

Measuring range

1.39 mg to 56888 mg (Gurley's stiffness unit)

or 141 mn to 5802576 mn

Sample length

25.4 mm (1 in.), 38.1 mm (1.5 in.), 63.5 mm (2.5 in.), 88.9 mm (3.5 in.), 114.3 mm (4.5 in.)

Sample width

50.8 mm (2 in.)

Sample clamp position (test length)

12.7 mm, 25.4 mm, 50.8 mm, 76.2 mm, 101.6 mm

Sample holder swing speed

2 r/min

Weights

5g, 10g, 25g, 50g, 200g

Center Distance of Weight Grooves

Dl＝25.4mm, D2＝50.8mm, D3=101.6mm

Power

AC 220V 50HZ 30W

Dimension

40cm×40cm×50cm

Weight

8kg
