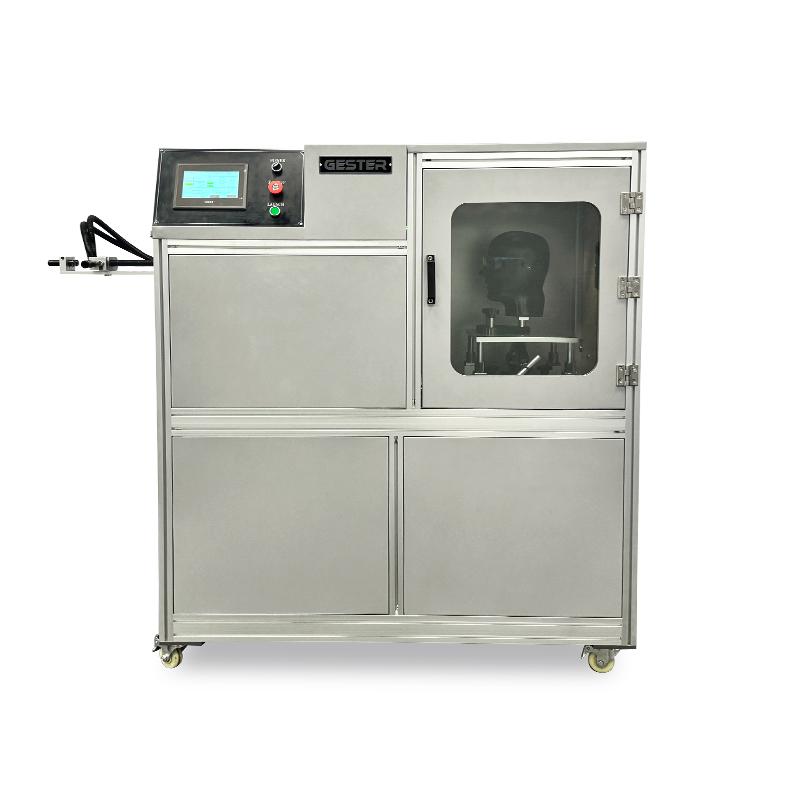

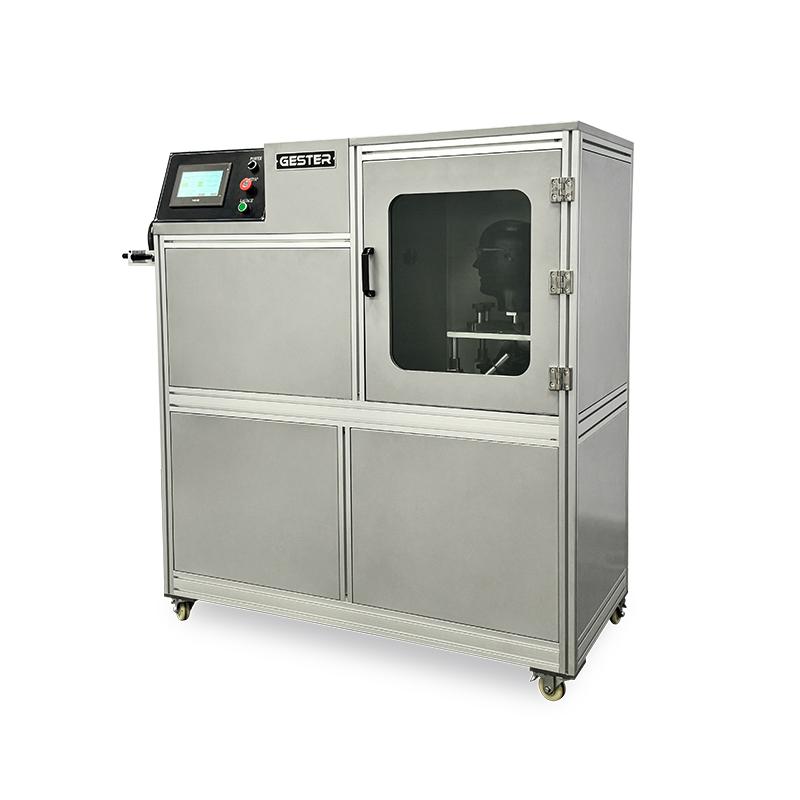

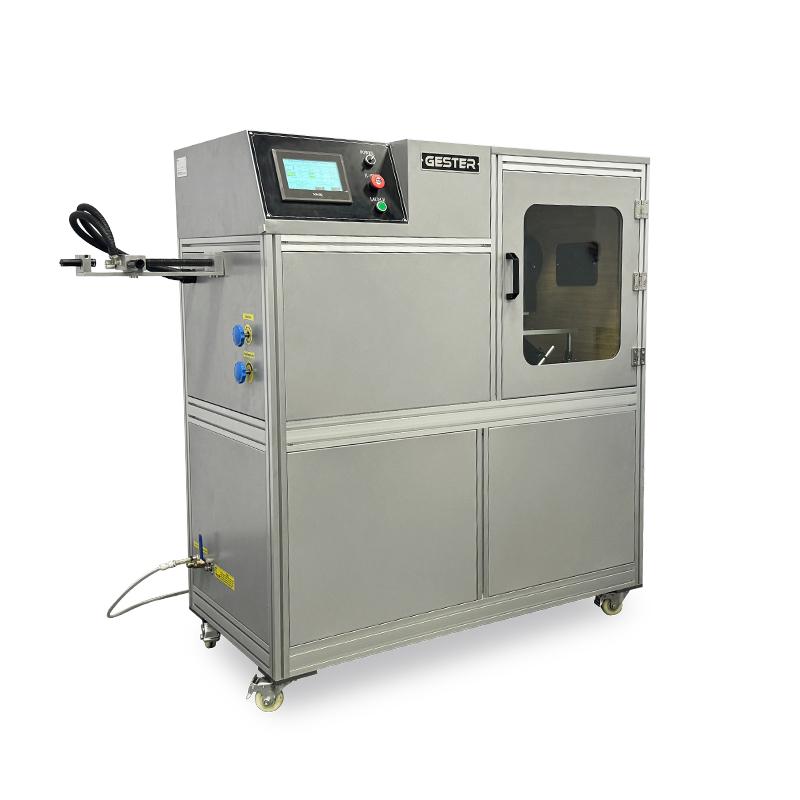

High Velocity Impact Testing Machine GT-RB05

ISO 4855 high-speed impact testing machine

Inquire now

Product Introduction

Application

To test the impact resistance of glasses, goggles and masks at a certain speed.

Standards

ISO 4855, ANSI Z87.1 2020 Clause 9.12, EN 166 2001 Clause 7.2.2, ISO 16321 Clause 7.10

AS1337.1 Clause 2.6, 2.7, 2.8, CSA Z94-2020 Clause 6.1

Specifications

Model	GT-RB05
Stainless Steel Ball	Mass 0.86g, Dia. 6.0mm, Speed: 190m/s
High Velocity Measurement System	Adopts high precision laser speed measurement and induction device.
Equipped with Safety Alarm Light	It can not enter test if the machine door have not closed well.
Headform Angle	Can be adjusted（0-90°）
Fixed Fixture for Headform	Can be pushed forward and backward by hand, with locking device.
Control Mode	Touch-screen Control, can display speed unit
Headform Material	Silica gel，to simulate the human head（with ears, nose and mouth)
Air Supply	Flow≥500l/min, Pressure≥ 0.65Mpa
Power Supply	AC 220V 50HZ
Dimension	16806801485mm(LWH)
Weight	About 300kgs
