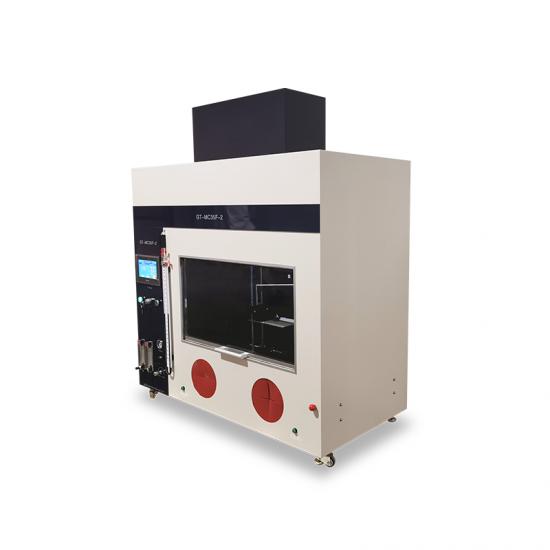

Horizontal and Vertical Flame Chamber GT-MC35F-2

Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.
  • Brand:

    GESTER
  • Item NO.:

    GT-MC35F-2
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Shipping Port:

    Xiamen
  • Lead Time:

    Have in stock
  • Product Detail


 Application

Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade. Outdoor grade powder coating technology, high texture, no discoloration. Import control components, safe and reliable. Horizontal Vertical Flame Chamber is according for ASTM D5025 dedicated burner , Easy for adjust flame height and with stable.


Standards:

UL 94

IEC 60695-11-3

IEC 60695-11-4

ISO 9772.3/6722

ASTM D635/3801/4804/4986


Dimensions



 Horizontal and Vertical Flammability Tester



Control System



Time controller

Touch Screen Control

Differential gauge

U-pressure direct-reading meter

Flow meter

Specific methane flow


Key Specifications

Internal dimensions

120 x 60 x 112cm (WxDxH)

External dimensions

120 x 65 x 150cm (WxDxH)

Inside cubage

0.8m3

Flame height:

15-175mm/min (can be adjustment)

Gas flowmeter

20-200ml/min (can be adjustment)

Gas press

5-200mm (can be adjustment)

Flame angle

0-45degree (can be adjustment)

Burner height adjust

50mm

Sample vertical move distance

450mm

Sample horizontal move distance

180mm

Burn time

0-99.99s (can be adjustment)

After flame time / after glow time

0.1s-99.99s (can be adjustment)

Precision

0.01s





Application Industry

All kinds of  materials can be tested on the Horizontal and Vertical Flame Chamber ( Touch Screen Control)


Main Body Assembly

 Box material

The test vehicle both inside and outside use of 2mm cold plate CNC forming

 Inside lamp source

Explosion-proof light ( Osram or Philips 40W halogen lamp)

 Exhaust system

Standard 180W exhaust fan

 Viewing window

5mm armoured glass ( 60 x 40cm)

 Design of viewing window

Adopt principles of electrical counterweight, Mute rail design,  weightlessness, without noise

Transmit mechanism

Axis linear bearing drive with chrome design

Clamp design

Imported anodized aluminum

Standard accessories

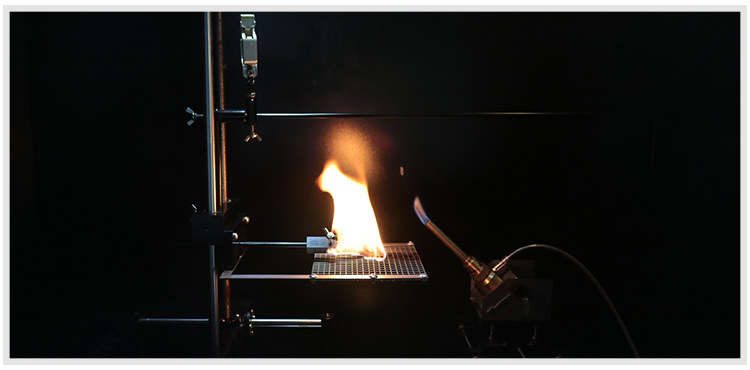

HB (ASTM D 635, ISO 1210) - Horizontal Burning Test and test fixture



V-0-1-2 (ASTM D 3801, IEC 60695-11-10) -  50W (20 mm) Vertical Burning Test and test fixture



Flame height gauge

Optional accessories

5VA/5VB (ASTM D 5048, ISO 9772, IEC 60695-11-20) -- 500 W (125 mm) Vertical Burning Test and test fixture



HBF/ HF 1-2 (ASTM D 4986) -  Horizontal Burning Foamed Material Test and  test fixture



VTM-0-1-2 (ASTM D 4804, ISO 9773) - Thin Material Vertical Burning Test and  test fixture



Thermocouple and Temperature Calibration Device



Medical Absorbent Cotton
