Hot Wire Ignition Tester GT-MC38

  • Brand:

    GESTER
  • Item NO.:

    GT-MC38
  • Order(MOQ):

    1
  • Lead Time:

    30 days
  • Product Detail

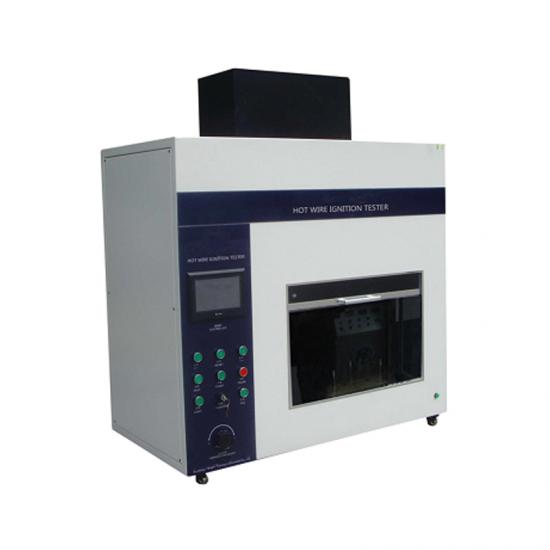

Hot Wire Ignition Tester GT-MC38

Product Introduction

Standards:

IEC60950, GB4943, IEC 60477-1 clause 5.2.5.4


Feature

  1. Programmable control system
  2. Precision adjustable power supply
  3. Imported aluminum fixture
  4. Equipped with test ventilation device
  5. One-button timing device
  6. Advanced power control system
  7. Multiple safety protection system
  8. Tempered glass window



Key Specification



Model

GT-MC38

Internal dimensions

1120mm*600mm*1020mm (W*D*H)

Internal volume

≥0.5m³

Controller

7-inch programmable controller

Hot wire material

Nickel-Chromium wire (Nickel 80%, Chromium 20%)

Hot wire length

250mm

Hot wire diameter

0.5mm

Hot wire cold resistance

5.28Ω

Hot wire power

0.26W/mm±4%

Test time

0.01-999.99S can be set

Ignite time

0.01-999.99S

Stop burning time

0.01-999.99S



Accessories

Standard Accessories

1 pc

 Hot wire

1 pc

 Fixture

1.5metres

 Current line

2.5metres

 Exhaust pipe

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Horizontal and Vertical Flame Chamber
Horizontal and Vertical Flame Chamber GT-MC35F-2
Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.
Read More
needle flame tester
Needle Flame Test Apparatus GT-MC35G
Needle Flame Tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. Apply to the test standards IEC60695,GB5169, etc.
Read More
Glow Wire Tester
Glow Wire Test Apparatus (LED Display) GT-MC35H-1
Glow Wire Test Apparatus is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. The glow wire tester is apply to the latest test standards IEC60695,GB5169, etc.
Read More
Glow Wire Tester
Touch Screen Glow Wire Tester GT-MC35H-2
Glow wire tester is the latest release of the flaming test equipment, with programmable touch screen control model, adopted with imported components.
Read More
Mooney Viscometer

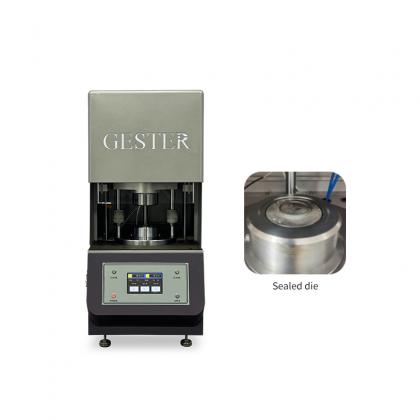

Mooney Viscometer GT-KR03
