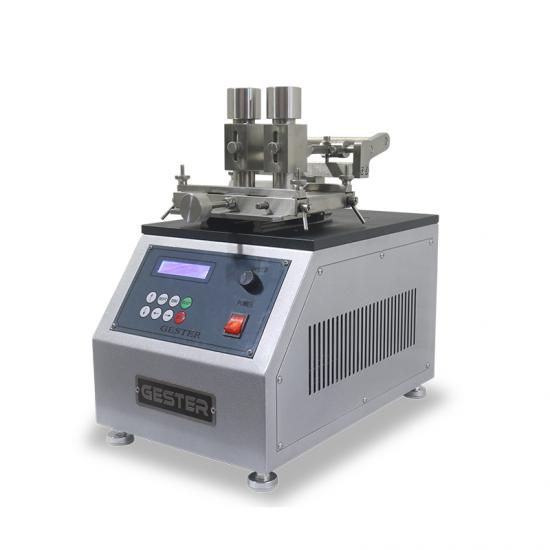

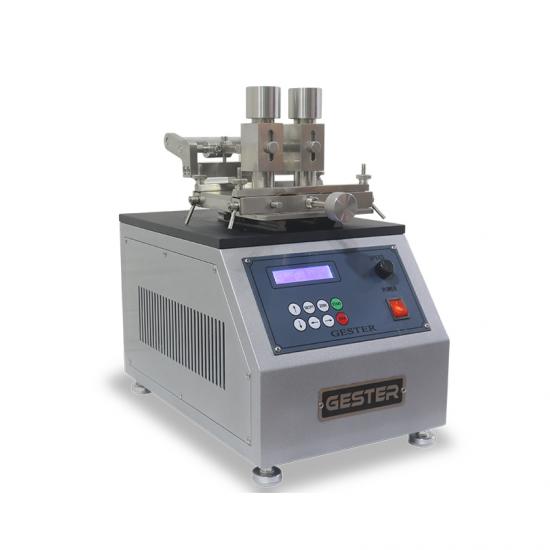

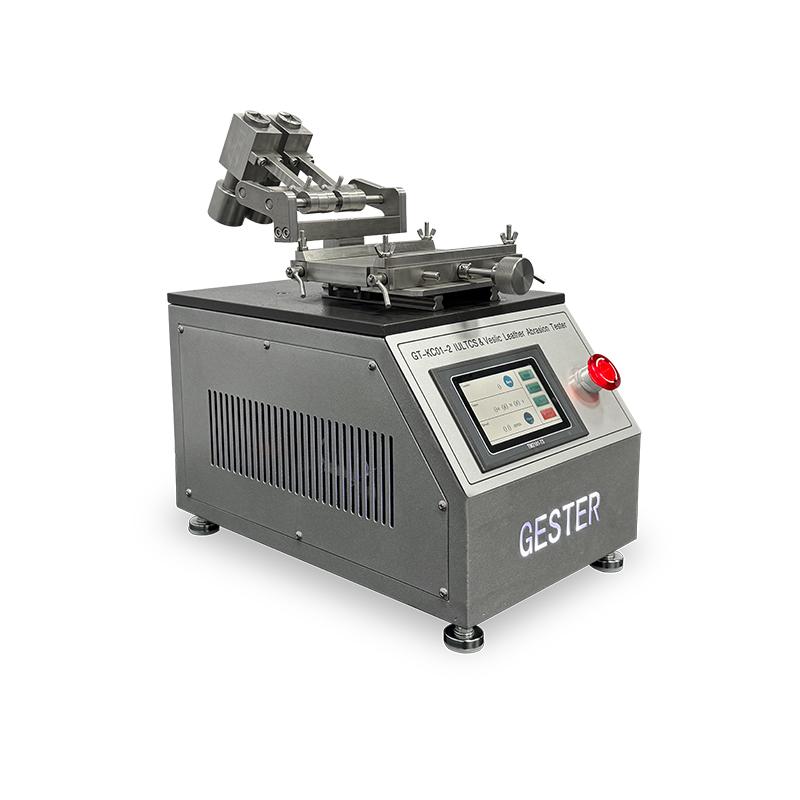

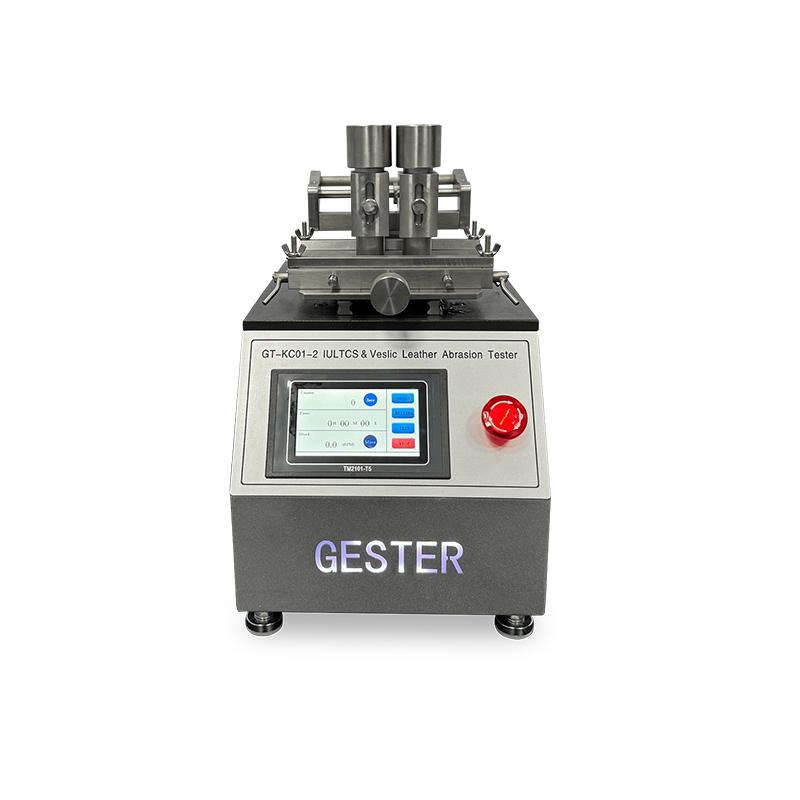

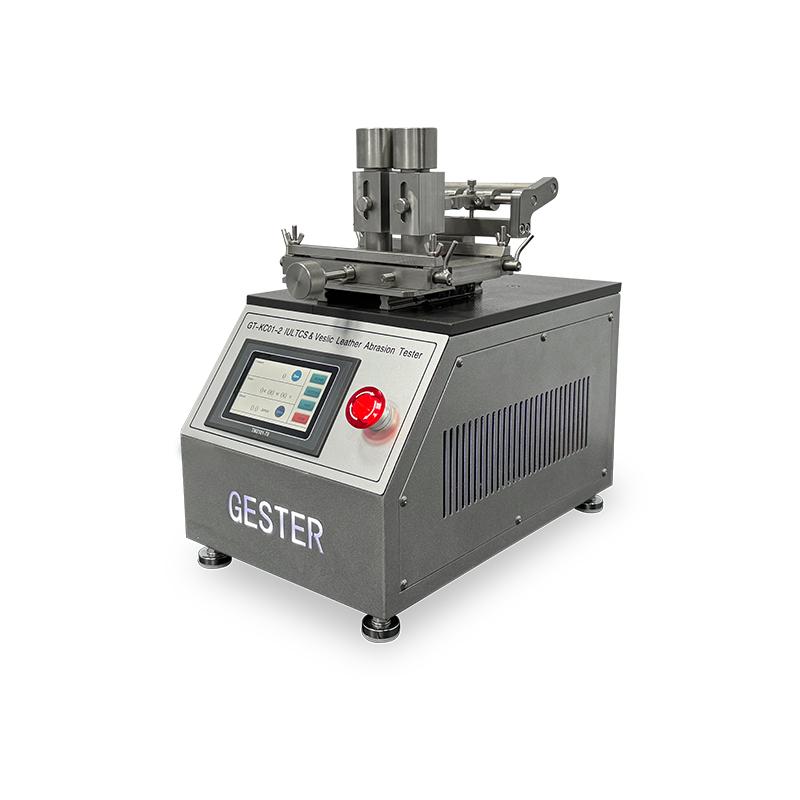

Factory-direct 2-station IULTCS Veslic Leather Abrasion Tester
This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry abrasion testing and wet abrasion test.
Standards:
ISO Standards: ISO 11640, ISO 20868, ISO 17700, EN ISO 20344
SATRA Standards: SATRA PM 173
National & Regional Standards: DIN 4843, AS/NZS 2210.2, QB/T 2537, GB/T 20991, GB/T 40920, GE-29
|
Model |
GT-KC01-2 |
|
Position |
2 |
|
Area of testing head |
15mm x 15mm |
|
Movement speed |
40 ± 2 times / min. |
|
Rubbing stroke |
35~40 mm |
|
Rubbing finger mass |
500g |
|
Additional weight mass |
500g |
|
Fixtures distance |
80mm |
|
Sample size |
120x20mm |
|
Tension extension range of sample |
0 ~ 20% |
|
Power supply |
1∮AC 220V 50/60HZ |
|

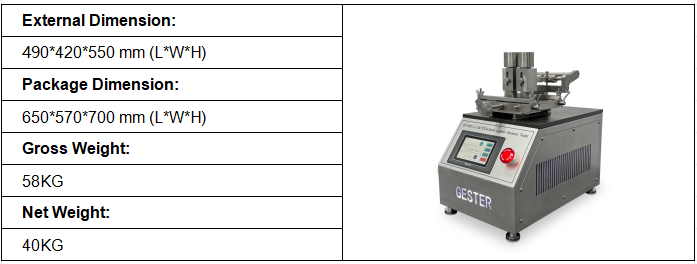

Dimensions (L x W x H) |
490x420x550mm |
|
Weight |
40kg |
|
Standards accessories |
1pc |
500g Weights |
|
1pc |
Power line |
|
|
Optional accessories |
Optional |
Standard wool pads |
|
Optional |
GT-C48 Pneumatic Sample Press
(Cutter: 120x20mm) |
|
|
Optional |
Gray Scale for color change |
|
|
Optional |
Gray Scale for staining |
Q1: Do you have a single-head option available if our testing volume is small?
A1: Yes, for standard testing workloads or smaller benchtop spaces, you can choose our Single-Station IULTCS Veslic Leather Abrasion Tester GT-KC01-1, which provides the same compliance with ISO 11640 and SATRA PM 173 in a compact single-head design.
Q2: Should I choose a single-station or dual-station IULTCS Veslic tester for my leather testing lab?
A2: If you require higher testing throughput, we recommend our dual-station IULTCS Veslic leather abrasion tester (GT-KC01-2). It allows laboratory technicians to conduct simultaneous dry and wet rub fastness tests on footwear upper leather in a single run, cutting testing time by 50% compared to a single-head machine.
Q3: Can I run dry rubbing on Station 1 and wet rubbing on Station 2 at the same time?

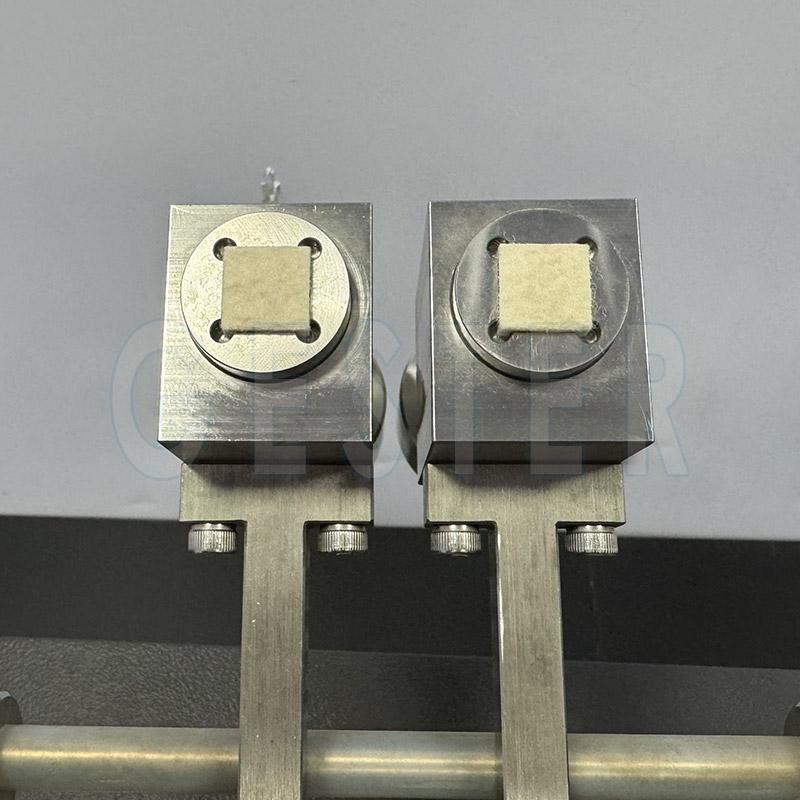

A3: Yes. The two testing stations operate under identical motion and speed conditions. You can mount dry wool felt on one test head and distilled water/solvent-soaked felt on the other head to execute parallel dry and wet tests in a single cycle run.

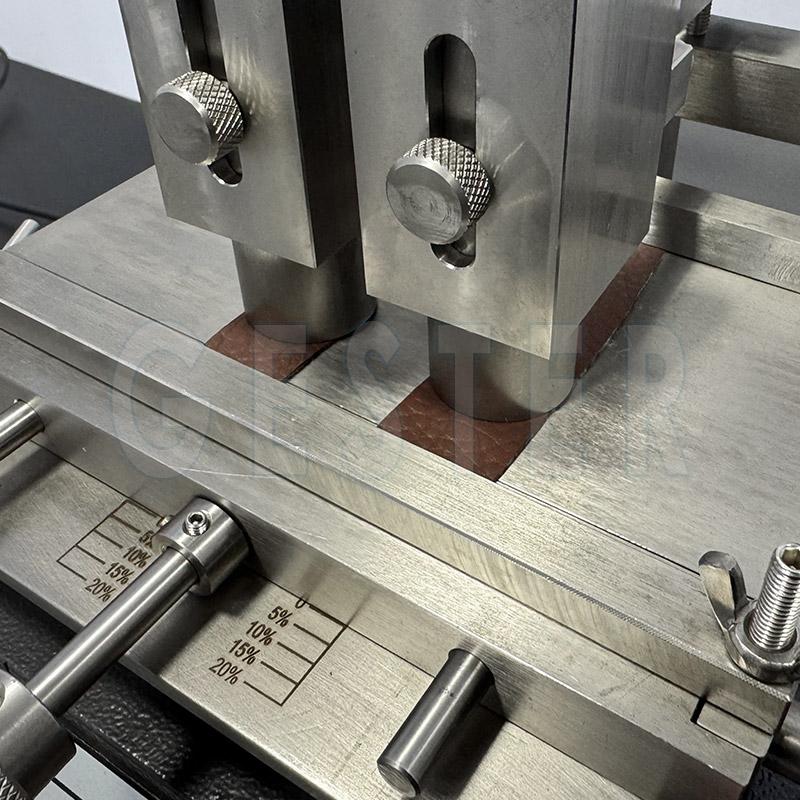

Q4: How is specimen tension adjusted on each station?

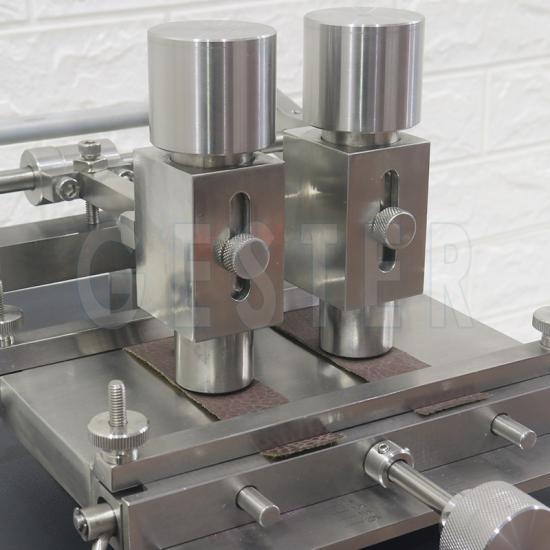

A4: Each station is equipped with an independent clamping and extension system. Operators can stretch the 120x20mm specimen longitudinally by 0% to 20% using the fixture distance adjustment knob before starting the test, ensuring compliance with ISO 11640 rules for flexible leather materials.
