Lastometer, Digital Lastometer, Leather Digital Lastometer: To determine the anti-cracking index for upper, leather facing and all kinds of thin leather.
Brand:
GESTERItem NO.:
GT-KC37AOrder(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time：
30 daysProduct Detail

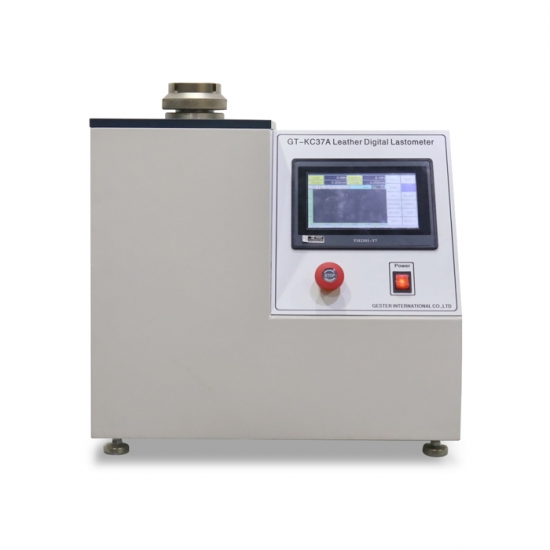

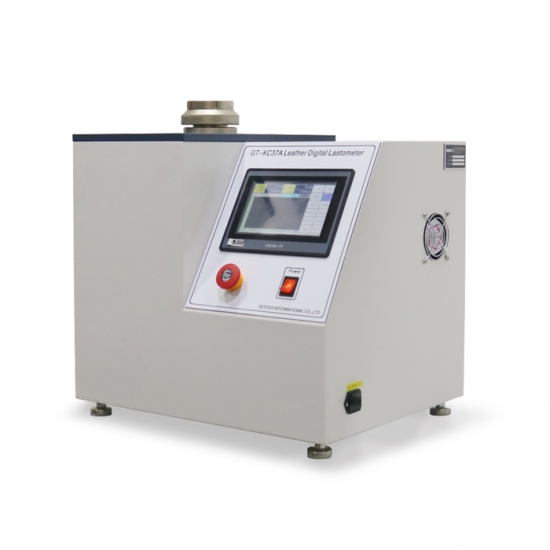

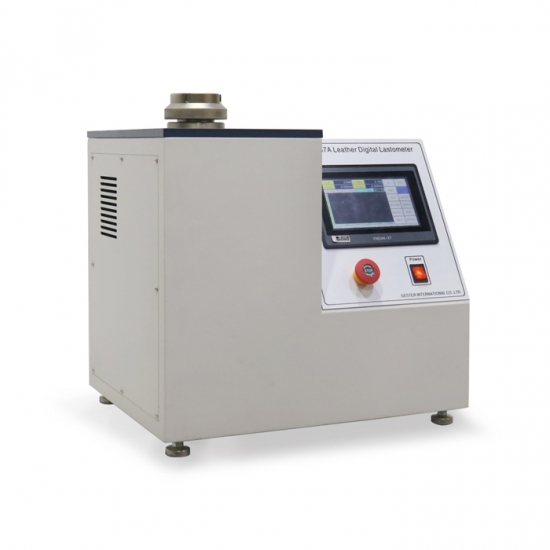

Leather Digital Lastometer GT-KC37A
|
Application: Digital Lastometer is used to determine the anti-cracking index for upper, leather facing and all kinds of thin leather. Fixed the clamp frame round the sample, jacked up the ball to the inside of leather with 12mm/min. When leather is cracking, the value of increase height is the crack value.
Leather Lastometer Standards: BS 3144 section 8, ISO 3379, ISO17693, DIN 53325, GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166
|
|

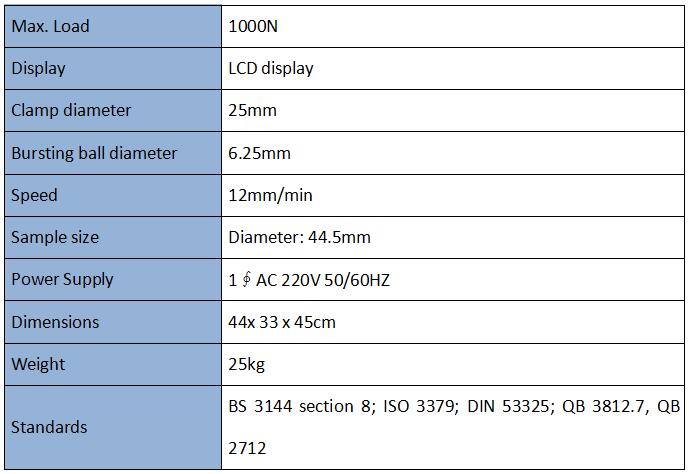

Model |
GT-KC37A |
|
Max. Load |
1000N |
|
Control Mode |
Touch screen controlled |
|
Clamp Diameter |
25mm |
|
Bursting Ball Diameter |
6.25mm |
|
Speed |
12mm/min |
|
Sample Size |
Diameter: 44.5mm |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions |
54x 47 x 52cm |
|
Weight |
42kg |
|
Standards |
BS 3144 section 8, ISO 3379, ISO17693, DIN 53325,
GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166 |
|
Standards Accessories |
Power line |
|
Optional Accessories |
GT-KD20 Hydraulic Rocker Pressure Tester
(Cutting die of diameter 44.5mm) |
