Tapes and Sheets Initial Viscosity Tester GT-N67

  • Brand:

    GESTER
  • Item NO.:

    GT-N67
  • Order(MOQ):

    1
  • Lead Time:

    15-30 days
  • Product Detail

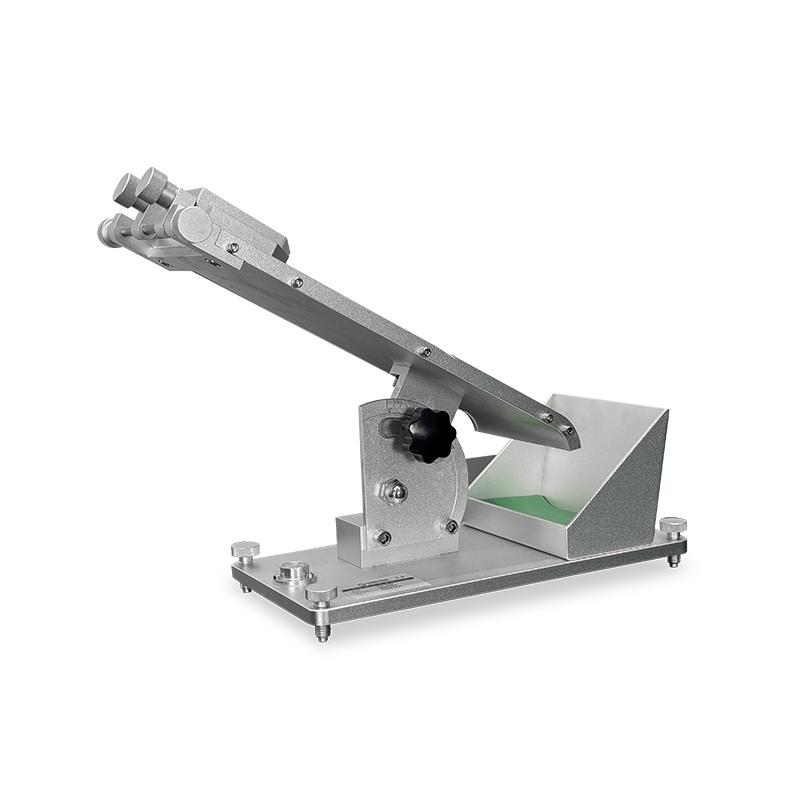

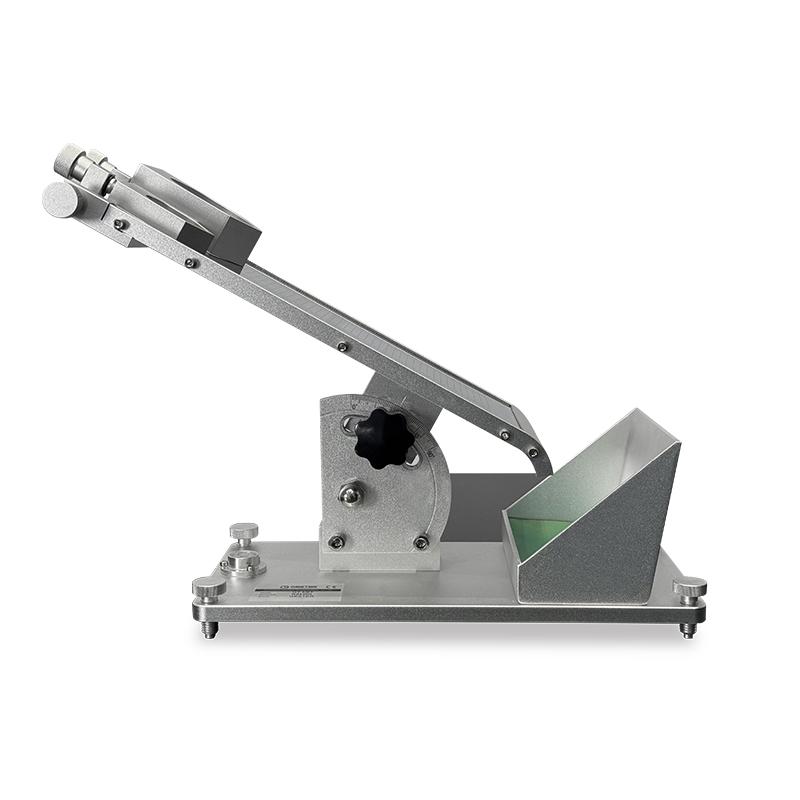

Tapes and Sheets Initial Viscosity Tester GT-N67



Product Introduction


Application

Initial viscosity tester is suitable for pressure-sensitive tapes, medical patches, self-adhesive labels, protective films and other related products for primary adhesive test.

It has two test methods: A inclined surface rolling ball method and B inclined groove rolling ball method. The conversion method is simple and easy.


Standards:

GB/T 4852, JIS-Z-0237, YY/T 0148 Pharmacopoeia Part IV


Principle

Adopt A inclined surface rolling ball method and B inclined groove rolling ball method.

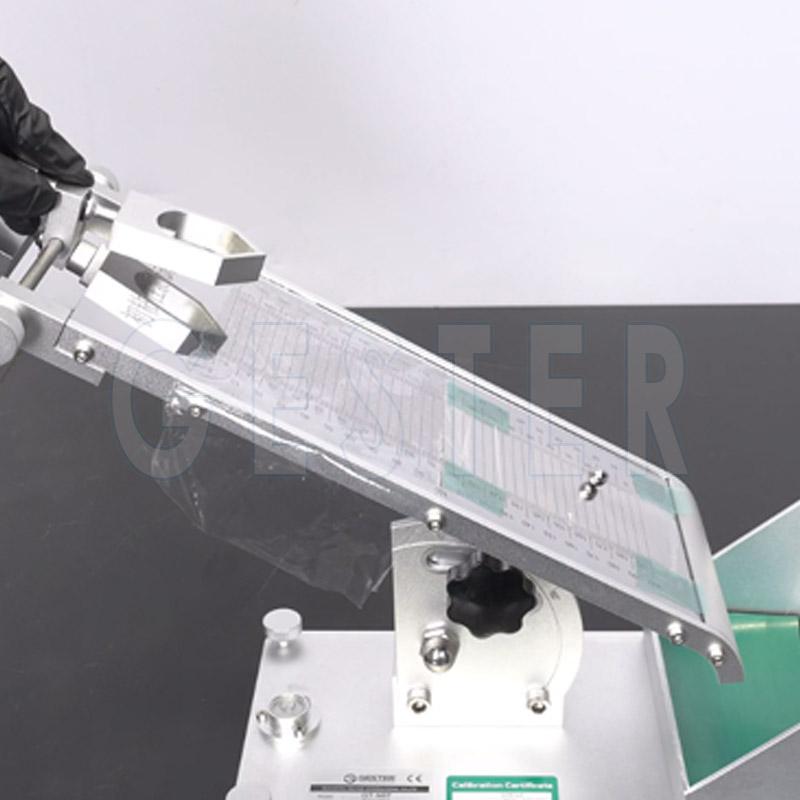

Method A: Test the initial adhesion of the sample by the adhesion of the adhesive tape to the steel ball when the steel ball and the adhesive surface of sample are in short-term contact with a slight pressure.

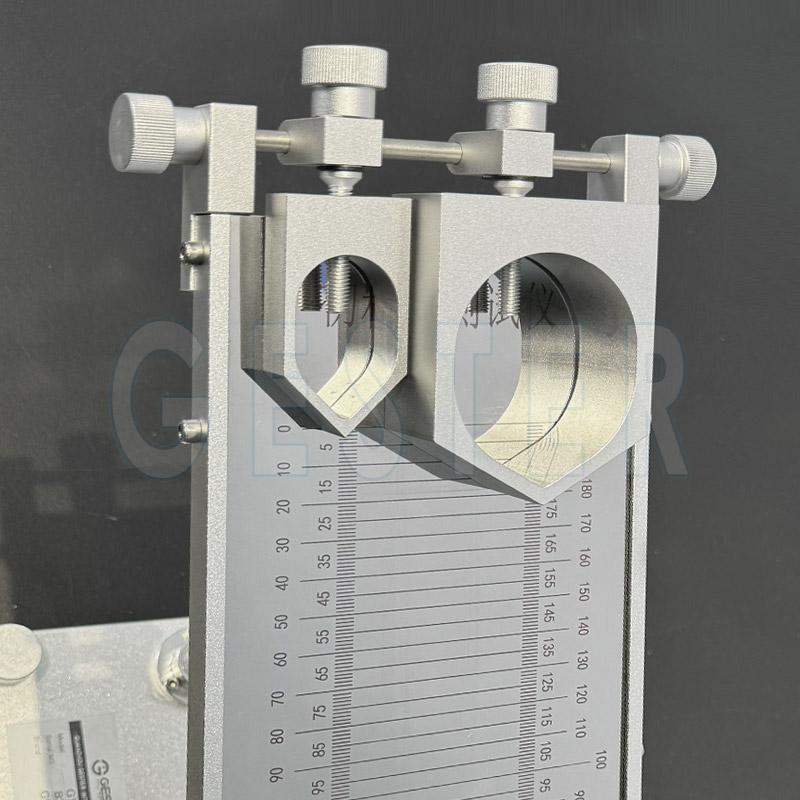

Method B: Roll a prescribed size steel ball through an inclined groove, and measure the distance it rolls on the adhesive surface of the adhesive tape on a horizontal plate to evaluate its initial viscosity.


Features
  1. Adopts the test principle of the inclined surface rolling ball method to test the instant adhesion performance of the sample.

  2. Initial viscosity test machine has two test methods: A inclined surface rolling ball method and B inclined groove rolling ball method.

  3. The test steel ball designed accordance with national standards, ensures the high accuracy of test data.

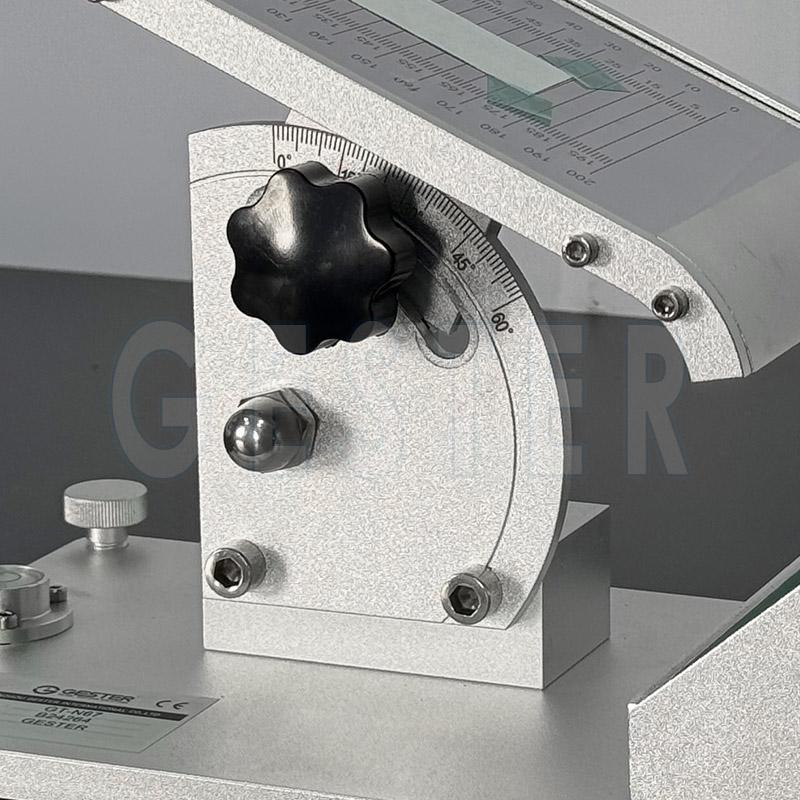

  4. The test tilt angle can be adjusted from 0 to 60° freely according to user requirement.


Key Specifications


Model

GT-N67

Adjustable inclination angle

0 ~ 60°

Width of table

120 mm

Width of test area

80 mm

Standard steel ball

29 pcs (pharmacopeia required 46 pcs)

Size

320mm×140mm×180mm(L×W×H)

Net weight

21kg

Power Supply

AC 220V 50Hz


Accessories

Standard Accessories

Steel ball

29pcs

Screw of method B

1pc

Optional Accessories

Pharmacopoeia steel ball

46pcs

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

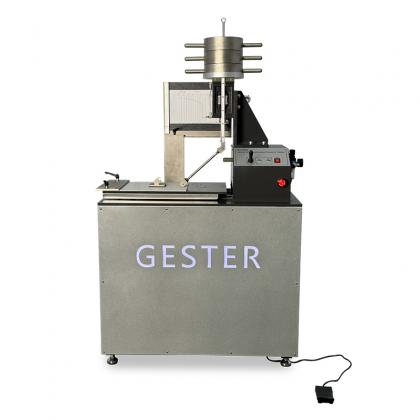

Lasting Adhesive Tester
Lasting Adhesive Tester GT-N58
adhesive test equipment manufacturers suppliers
Read More
Heat Sealing Tester

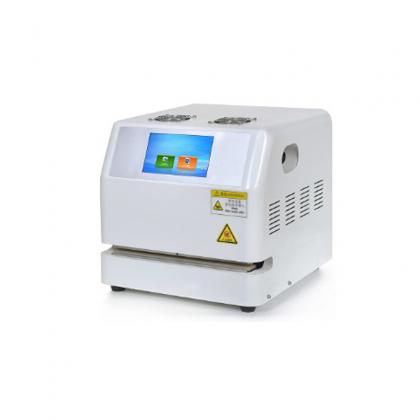

Heat Sealing Tester GT-N70B
GESTER Heat Seal Tester is essential for various industries, including quality inspection, pharmaceuticals, research, packaging, thin film manufacturing, food production, ect.
Read More

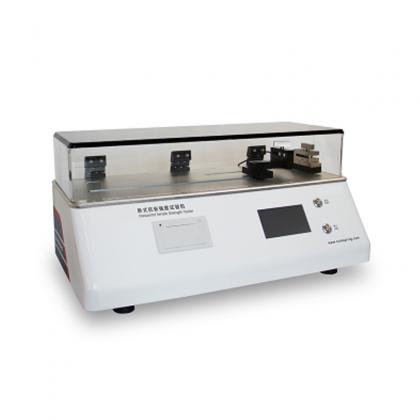

Horizontal Tensile Strength Tester
