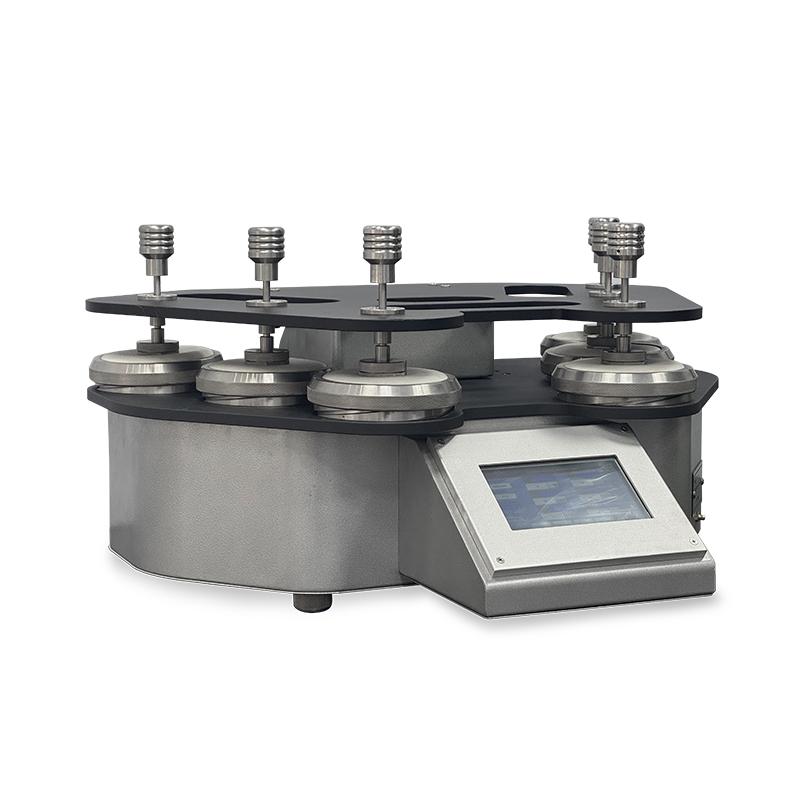

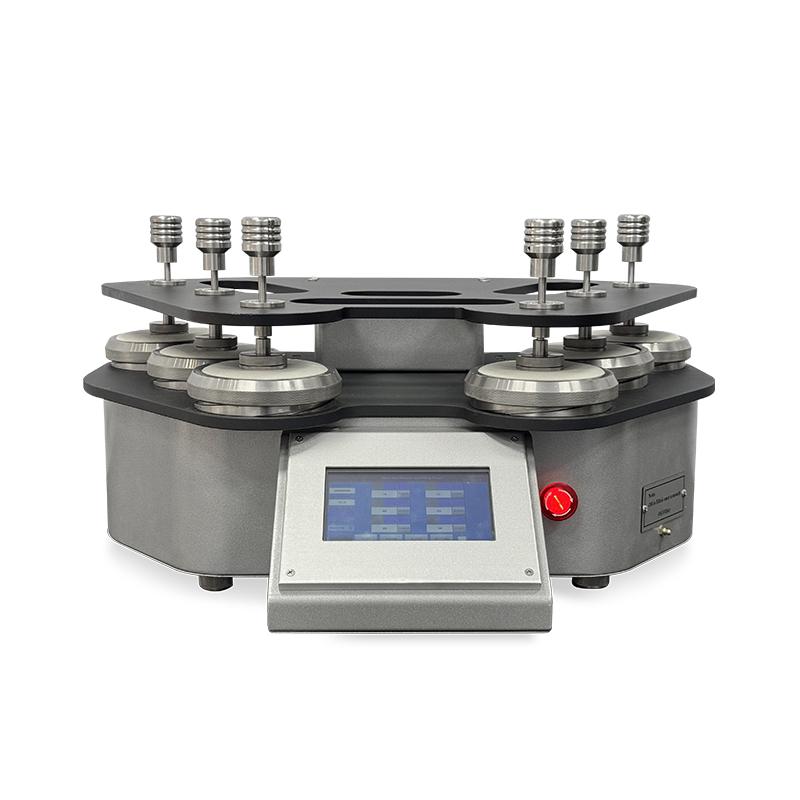

Martindale Abrasion Tester GT-KC13B

This Martindale Abrasion Tester used to determine the abrasion resistance of all kinds of footwear vamp material. Factory direct sale.

  • Brand:

    GESTER
  • Item NO.:

    GT-KC13B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

Martindale Abrasion Tester GT-KC13B


Product Introduction

Application:

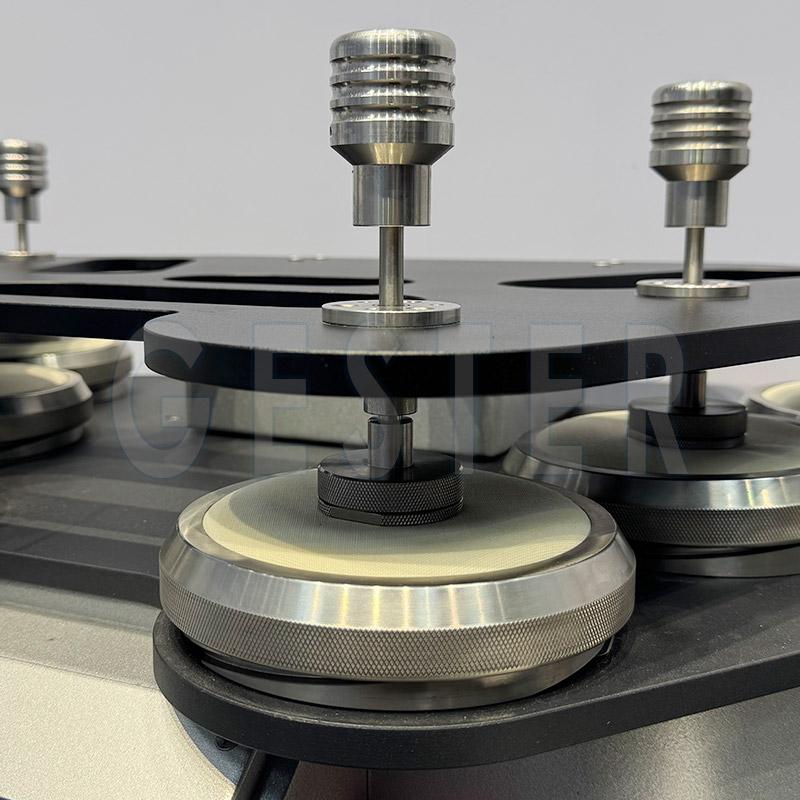

The Martindale Abrasion Tester is used to determine the abrasion resistance of all kinds of footwear vamp material. Samples are rubbed against known abrasion at low pressures and in continuously changing directions and the amount of abrasion. The unique design allows removal of individual sample holders for examination without lifting the top motion plate.


Standards:

ISO 20344-2020 section 5.24 , ISO 5470-2, ISO 12947, ISO 17704
AS/NZS 2210.2 section 6.12
GB/T 20991 section 6.12
EN 344-1 section 5.14, EN 13520
BS3424.24,
ASTMD4966,
SATRA TM31
EN 388 Section 6.1


Dimensions

Martindale Abrasion Tester


Key Specifications


Model

GT-KC13B-4

GT-KC13B-6

GT-KC13B-8

GT-KC13B-9

Working station

4

6

8

9

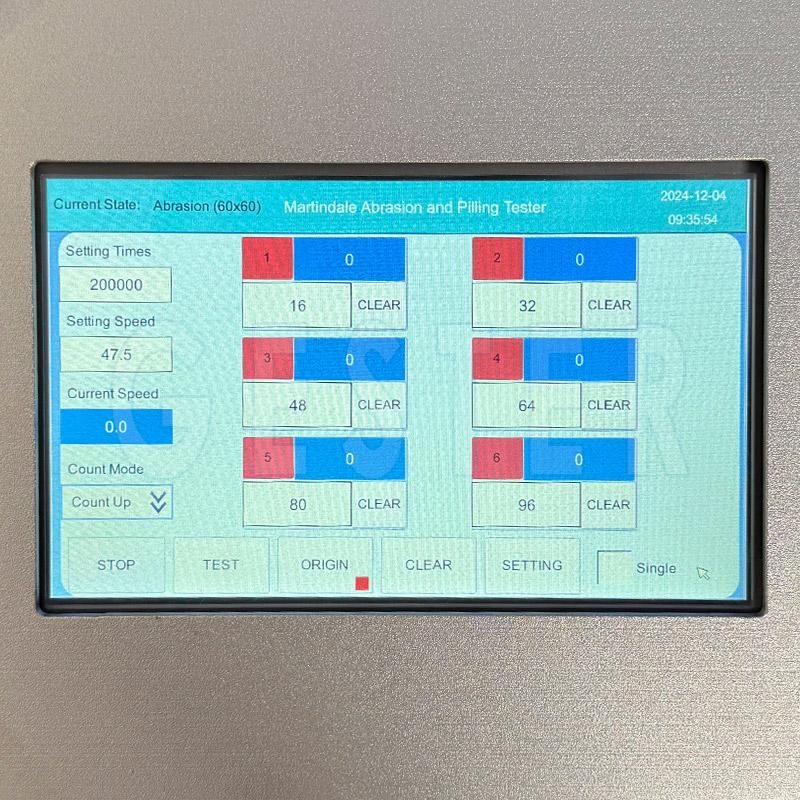

Control mode

 Touch screen control

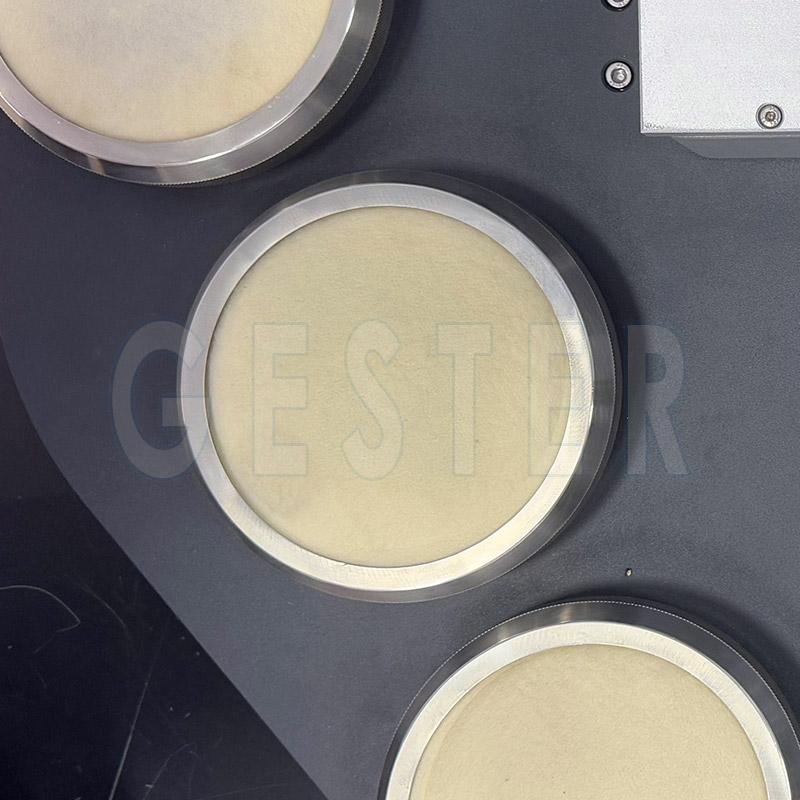

Abradant table

 ≥ 125mm

Lissajous figure

 60±1 mm x 60±1 mm

Test Pressure

 A) Specimen holder: (198 ±2)g

 B) Larger loading piece: (597±5)g

 C) The sum mass: (795±7)g, for workwear, upholstery, bed linen  and fabrics for technical use ( nominal pressure of 12kpa)

 A) Specimen holder: (198 ±2)g

 B) Smaller loading piece: (397±5)g

 C) The sum mass: (595±7)g, for apparel and household textiles,  excluding upholstery and bed linen (nominal pressure of 9kpa)

Exposed area of specimen holder

 645 ± 5 mm2

Rotational Speed

 47.5 ± 2.5 r/min

Pressing Weight

 Mass : (2.5 ± 0.5) kg



 Diameter: Φ(120 ± 10) mm

Dimensions ( L x W x H )

74×70×37cm

74×70×37cm

88×78*37cm

88×78*37cm

Weight

About 130kg

About 150kg

About 160kg

About 170kg



Accessories:

 Standard accessories

 1set


 Abrasion Weight and Holder


2pcs for each head


Standard Abradents Fabric Φ165mm


Box of 60pcs

Standard Backing Foam Φ44mm


2pcs for each head


Standard Woven Felt Discs Φ165mm


1pc


Pressing Weight


1pc


Cutting die Φ165mm

(Making standard abradents fabric and woven felt.)


1pc


Cutting die Φ44mm

(Making samples and standard backing foam.)


1pc


Power Line


Optional accessories

Optional


R1mm Holder Insert


Optional


Standard Abrasion Fabric Φ165mm


Optional


Standard Backing Foam Φ44mm


Optional


Standard Felt Discs Φ165mm


Optional


P400 Abrasion Paper


Optional


GT-C48 Pneumatic Sample Press


Optional


Gray Scale for color change


Optional


Gray Scale for staining




Application Industry

All kinds of materials below can be tested on the Martindale Abrasion Tester GT-KC13A

Martindale Abrasion Tester GT-KC13A
