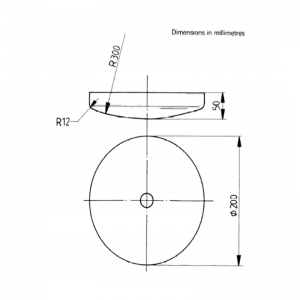

Smaller seat loading pad, which is a rigid circular object 200 mm in diameter, the loading surface of which has a convex spherical curvature of 300 mm radius with a 12 mm front edge radius.
Back loading pad, which is a rigid rectangular object 200 mm high and 250 mm wide, the loading surface of which is curved across the width of the pad with a convex cylindrical curvature of 450 mm radius and with a 12 mm radius on all front edges.

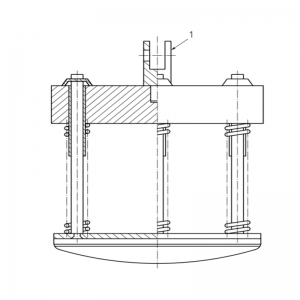

The seat impactor is comprised of the following elements, circular body, springs and striking surface. Is the necessary accessories for seat impact test.
305mm Loading Pad GT-LB01-18 Product Introduction Application: This load pad is designed specifically for IS 17633, which is a rigid circular object 305±5 mm in diameter,with a 12 mm front edge radius. Standards: IS 17633 - 2022 Annex B- 4.1 Key Specifications Model GT-LB01-18 Material Plastic Load the pad diameter 305±5mm Load cushion thickness 40mm Dimension（L×W×D） 305×305×50mm Weight 10kg Applications Industry All kinds of seats with pedal of chair can be tested on the 305mm Loading Pad
This load pad is designed specifically for BIFMA X5.1, which is a rigid rectangle object 102×50 mm in dimension ,with a 12 mm front edge radius. Mainly used to test the office chair pedal static load and durability.

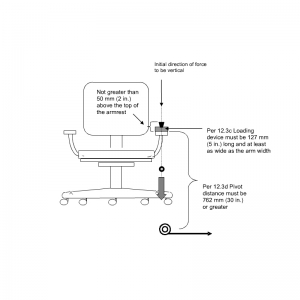

BIFMA127&60mm loading pad is designed specifically for BIFMA X5.1, which is a rigid rectangle object 127×60 mm in dimension ,with a 12 mm front edge radius. Mainly used to test the office chair arm static load and durability.
