305mm Loading Pad GT-LB01-18

Brand:
GESTER
Item NO.:
GT-LB01-18
Order(MOQ):
1
Payment:
T/T ,L/C
Lead Time：
20-30 days

Inquire now

Product Detail

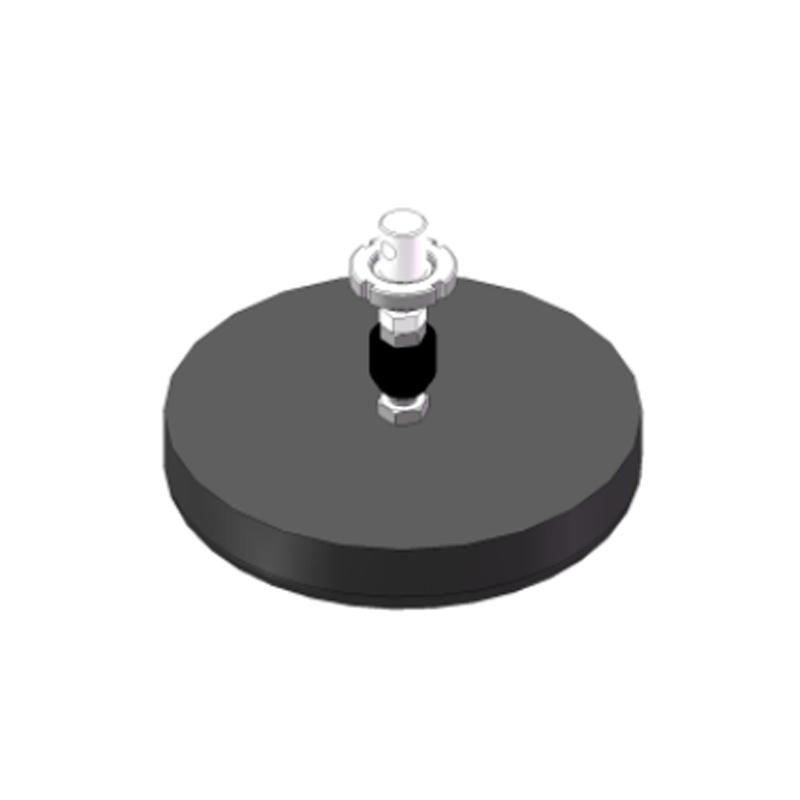

305mm Loading Pad GT-LB01-18

Product Introduction

Application:

This load pad is designed specifically for IS 17633, which is a rigid circular object 305±5 mm in diameter,with a 12 mm front edge radius.

Standards:

IS 17633 - 2022 Annex B- 4.1

Key Specifications

Model	GT-LB01-18
Material	Plastic
Load the pad diameter	305±5mm
Load cushion thickness	40mm
Dimension（L×W×D）	305×305×50mm
Weight	10kg

Applications Industry

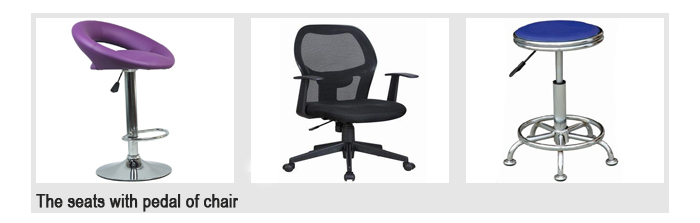

All kinds of seats with pedal of chair can be tested on the 305mm Loading Pad

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 305mm Loading Pad GT-LB01-18
