Brand:
GESTERItem NO.:
GT-N01BOrder(MOQ):
1Product Detail

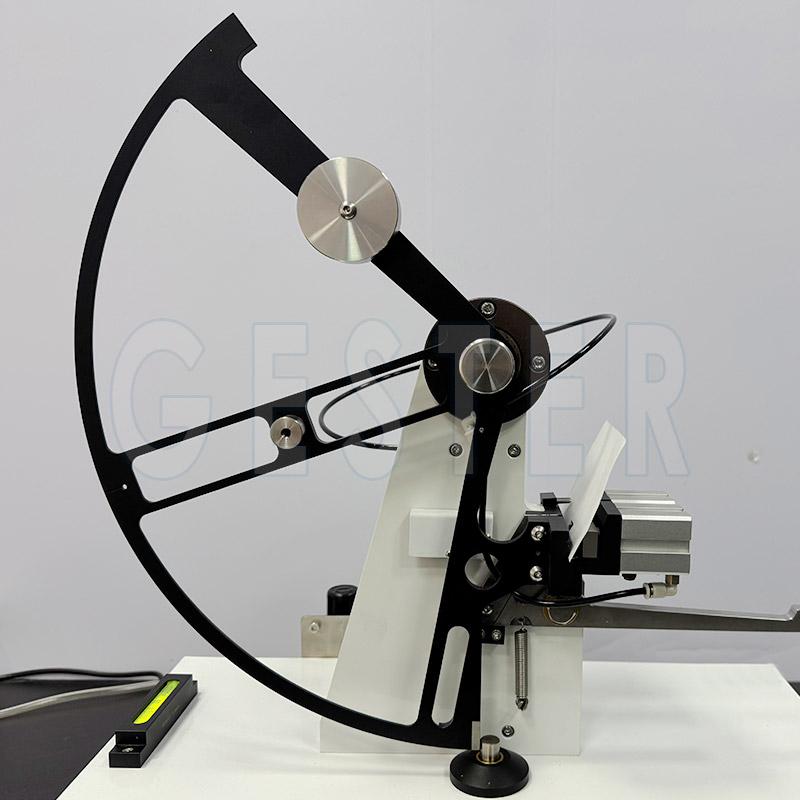

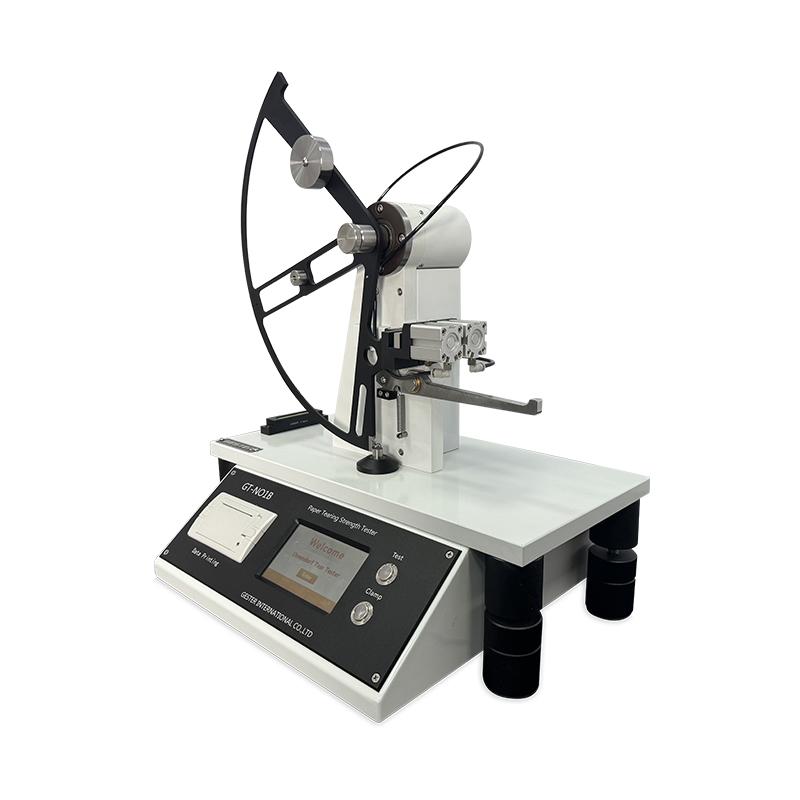

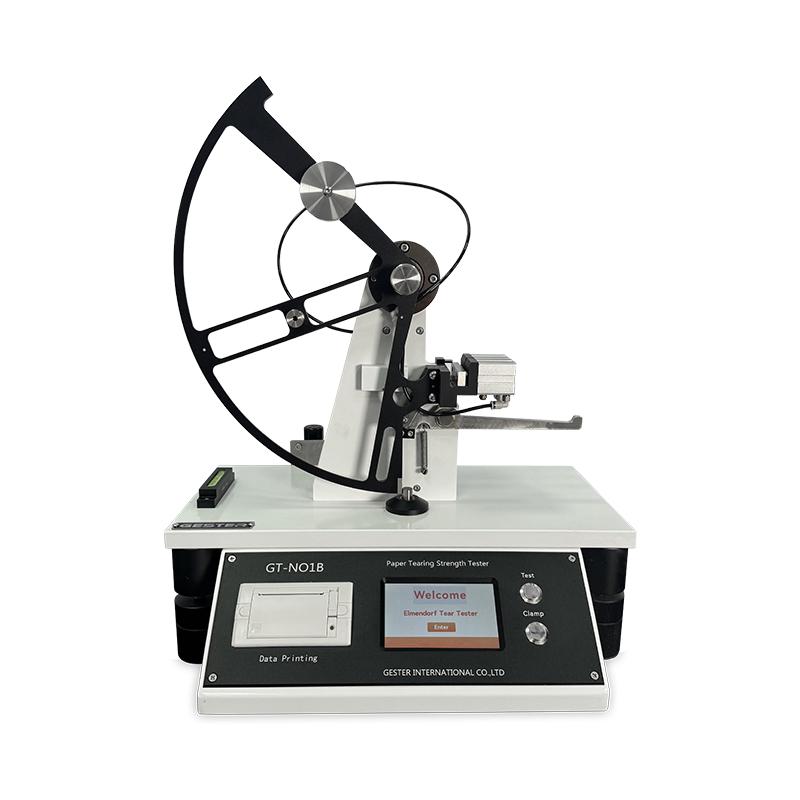

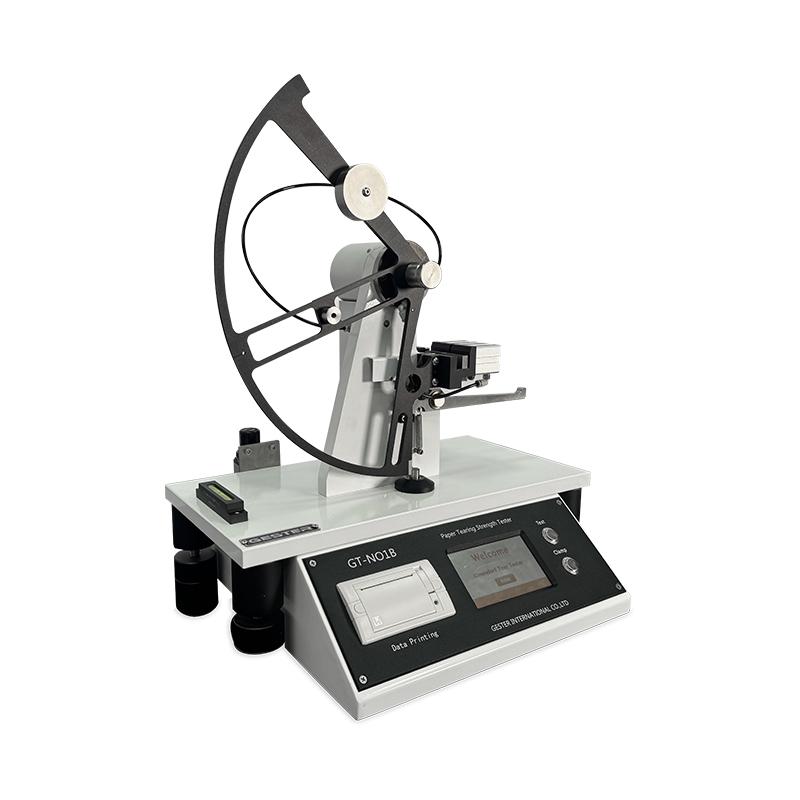

Microcomputer Control Paper Tearing Strength Tester GT-N01B
Application
This instrument is used to determine the tearing strength for paper and cardboard, it also could be used for tearing resistance testing of leather, film and other composite material of slice.
Standards
Model |
GT-N01B |
Measuring range |
A Range: (50~8000)mN B Range: (8000~16000)mN TAPPI: 2000, 4000, 8000, 16,000, 32,000mN |
Tear arm |
104 ±1mm TAPPI: 102.7±0.1 mm |
Tear initial angle |
27.5 ±0.5 degree |
Tear distance |
43 ±0.5mm TAPPI: 43 ±0.2mm |
Clip paper size |
≥25 x 15.9 ±0.1mm |
Jammed device distance |
2.8 ±0.3 mm |
Specimen dimension |
(63 ±0.15)mm x(50 ±2) mm |
Test Reading |
Within the scope of 20%~80% of full range |
Clamping method |
Pneumatic clamping |
Human-computer interface |

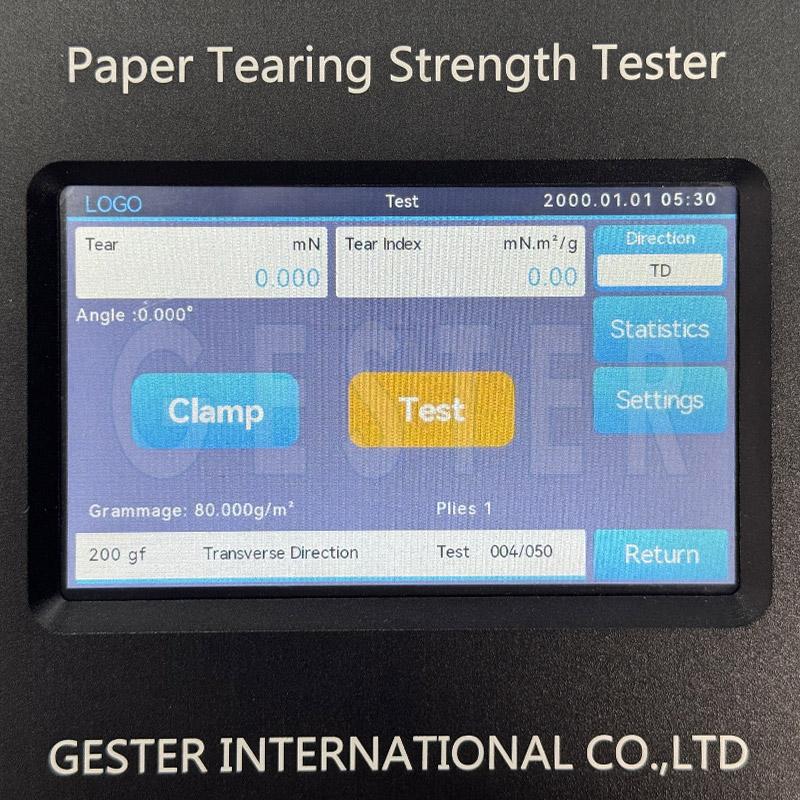

Real-time display the testing result by LCD |
Data printing |
Thermal printer is equipped inside |
Dimensions |
510 x 400 x 565 mm (LxWxH) |
Weight |
30 kg |
