1. About yarn
Yarn is a long continuous length of interlocked fibres, suitable for use in the production of textiles, sewing, crocheting, knitting, weaving, embroidery, or ropemaking.A generic term for yarn and thread, it is a long, thin, soft and continuous strip with a certain strength, it is made of textile fibers, including single yarns and ply yarn.
2. What is the twisting？
Fibres are arranged around an axis by means of twist. Twisting adds strength to the yarns.

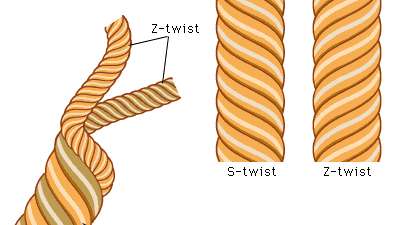

Twisting, in yarn and rope production, process that binds fibres or yarns together in a continuous strand, accomplished in spinning or playing operations. The direction of the twist may be to the right, described as Z twist, or to the left, described as S twist,including.
3.The following four parameters are of importance when discussing twist in yarn:
A. Direction of twist
B. Twist level/ Amount of twist
C. Twist angle
D. Twist multiplier
4. Twisting process
A. Single yarn
Single yarn is formed by twisting fibres or filaments in one direction.
B. Ply yarn
Ply yarn is made by twisting two or more single yarns together, usually by combining singles twisted in one direction with a ply twist in the opposite direction. It is stronger and more resistant to abrasion than single yarns.
Twine, cord, or rope can be made with a cable twist, each twist in the opposite direction of the preceding twist (S/Z/S or Z/S/Z), or with a hawser twist, the single yarns and the first ply twist in one direction and the second ply twist in the opposite direction (S/S/Z or Z/Z/S). The number of turns per unit of length in a yarn affects the appearance and durability of fabric made from that yarn. Yarns used for soft-surfaced fabrics have less twist than those used for smooth-surfaced fabrics. Yarns made into crepe fabrics have maximum twist.
5.EXPRESSION OF TWIST Amount of twist expressed in
1) Twist Per Inch(TPI)
2) Twist Per Meter(TPM)
3) Twist Per Centemeter(TPC)
TWIST FACTOR OR TWIST MULTIPLIER The twist factor or twist multiplier is a measure of twist, which accounts for the yarn radius as well as the twist level. TM=TPC√tex or TM=TPI÷√Ne
6. FACTORS AFFECTING TWIST The twist introduced in the yarn during spinning depends upon a number of factors, such as follows:
A. The count of yarn to be spun
B. The quality of cotton used
C. The use to which the yarn is put- is the yarn meant to be used as warp yarn or weft yarn, knitting yarn or any other yarn.
D. The fineness of the fibre being spun
F. The softness of the fabric into which the yarn is to be converted
7. YARN TWIST In practice, yarn twist is described using three main parameters:
(a) twist direction
(b) twist factor or twist multiplier And
(c) twist level (turns/unit length).
8. Function of twist in yarn structure:
A yarn must have sufficient tensile strength to withstand the stresses of preparation and fabric manufacture. Without twist a strand of fibers has very little strength.
.
The main function of twist is to be bind the fibers together and helps to keep them in their respective positions. It thus gives cohesiveness to the yarn.In order to develop strength in a twisted strand of discontinuous fibers (e.g. cotton yarn) and so resist breakage, the individual fibers must grip each other when the strand is stressed. This cohesion arises mainly from twist, which presses the fibers together as the stretching force is applied and so developing friction between adjacent fibers.
Twist is also used to bring about novel effects that are prominently visible when the yarn is converted to fabric. This is achieved primarily by having a combination of yarns with different twist levels and twist direction in the fabric,to improve dynamometric properties (tenacity, elongation, modulus of elasticity) and regularity,reduce the tendency of textured yarns to rotate on their own axis and to form loops
Improveing abrasion and home page wear resistance, modify structural properties affecting tactile characteristics (touch) and appearance(crêpe effect, covering power, lustre).
9. Test method of yarn twist

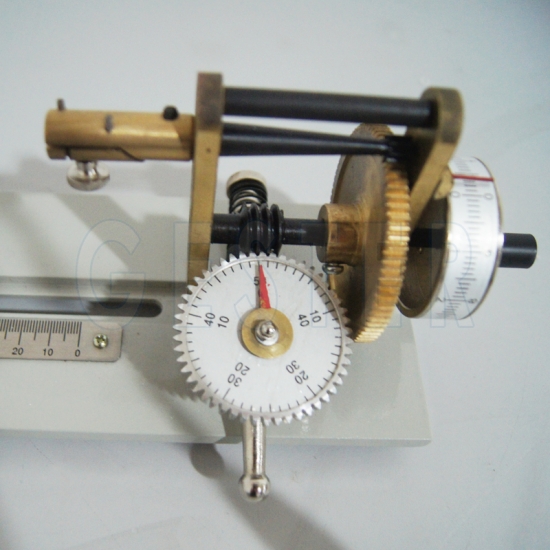

A.Manual Yarn Twist Tester GT-A07
Manual Twist Tester is used for testing the twist of roving.Yarn twist tester is an instrument for determining yarn twist and its related technical indicators. It can measure the twist and twist irregularity of various yarns. It is one of the main test instruments for evaluating the quality of yarn products. It is widely used in the central laboratory of textile enterprises, testing organizations, quality inspection and law enforcement agencies and research institutions.

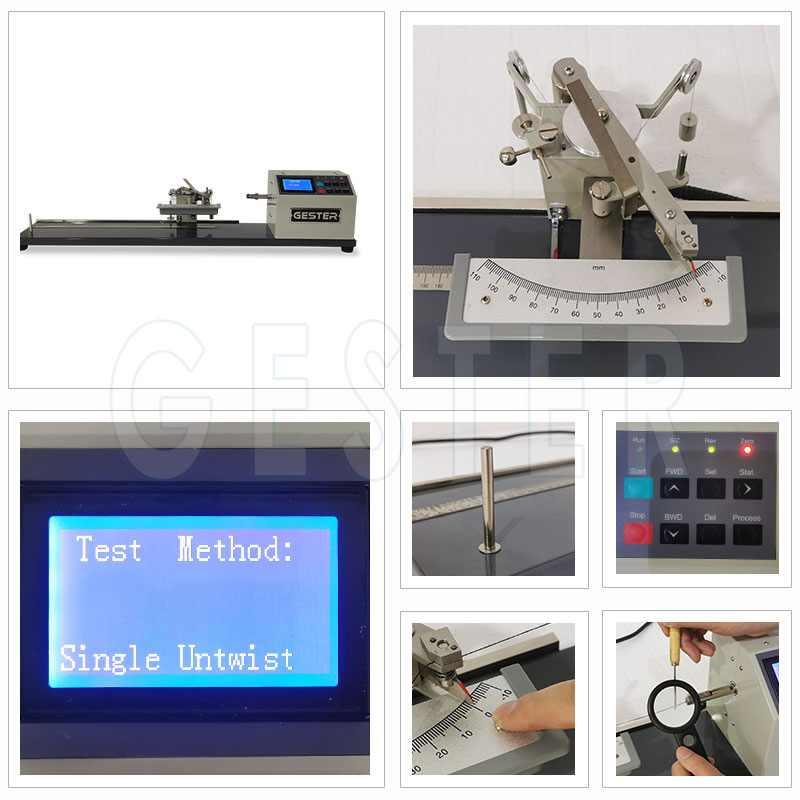

B. Electronic Yarn Twist Tester GT-A08
Electronic Yarn Twist Tester is used to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.
