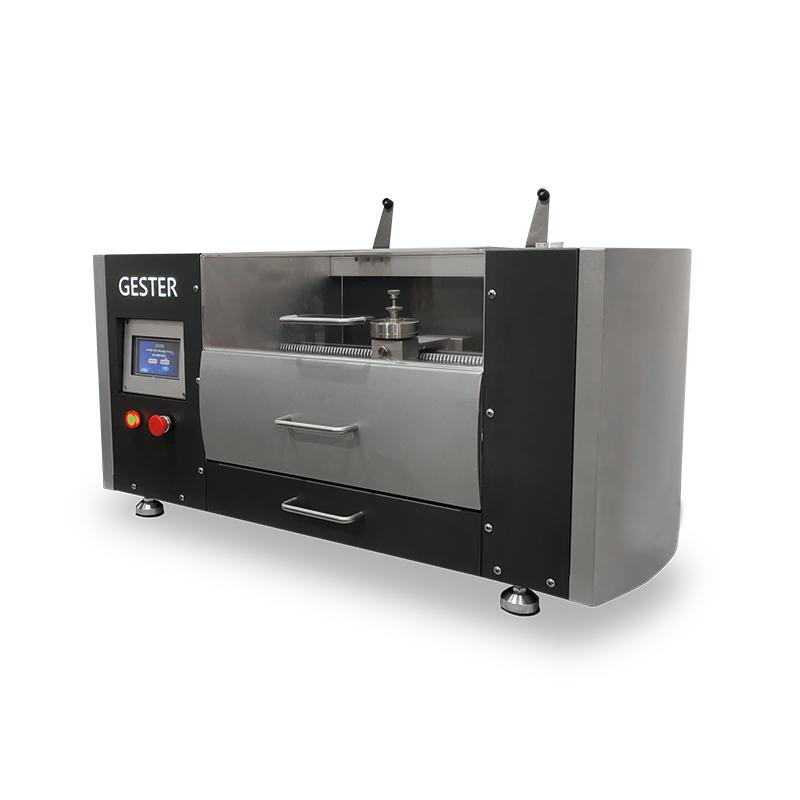

Rotary Drum DIN Abrasion tester GT-KB03

DIN Abrasion tester GT-KB03 is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB03
  • Order(MOQ):

    1
  • Payment:

    TT OR L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    In stock, 7days Fast Delivery
  • Product Detail

Rotary Drum DIN Abrasion tester GT-KB03



Product Introduction

Application:

DIN Abrasion tester GT-KB03 is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.


Standards:
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344-2020 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, EN 12770


Dimensions

din abrasion tester



Feature
  • 1. Din Abrasion Tester Body paint baking processed, easy for maintenance.
  • 2. Equip with digital counter, automatically stop after test finished.
  • 3. Principle: Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.


Key Specifications


Model

GT-KB03

Diameter of wear wheel

150mm

Specimen dimension

ø16.2 mm x thickness 6-10 mm

Specimen moving speed

4.2 mm/r

Weights

Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)

Wear wheel speed

40±1rpm

Inclination angle

3°, Test piece support shaft of test piece becomes vertical angle with roller.

Grit size of sandpaper

#60

Roller length

460mm

Wear stroke

40m

Power supply

1∮AC 220V 50/60HZ 3A

Dimensions (L x W x H)

700 x 300 x 300 mm

Weight

55kg

Standards

DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344-2020 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A, ASTM D5963,  ISO20871, QB/T2884, SATRA TM 193, EN 12770


Accessories:

Standard accessories

1pc

 2.5N weights

1pc

 5N weights

1pc

 P60# standard abrasive paper

1pc

 Standard cutting die

1pc

 Metal blob(Grinding head)

1pc

 2mm Guage

1pc

 Power line

Option accessories

Optional

 GT-G203H Electronic balance (210g,accuracy 1mg)

Optional

 Standard rubber

Application Industry of DIN abrasion tester

DIN Abrasion tester GT-KB03


Related Products

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
leather abrasion test
IULTCS & Veslic Leather Abrasion Tester GT-KC01-1
This IULTCS & Veslic Leather Abrasion Tester is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample.
Read More
Abrasion Tester

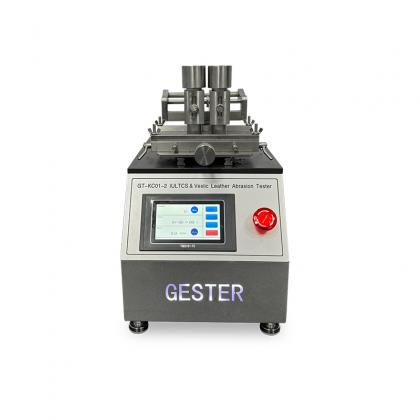

IULTCS & Veslic Leather Abrasion Tester GT-KC01-2
