Mooney Viscometer GT-KR03

Rubber Testing Equipment Manufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-KR03
Order(MOQ):
1
Lead Time：
20-30 days

Inquire now

Product Detail

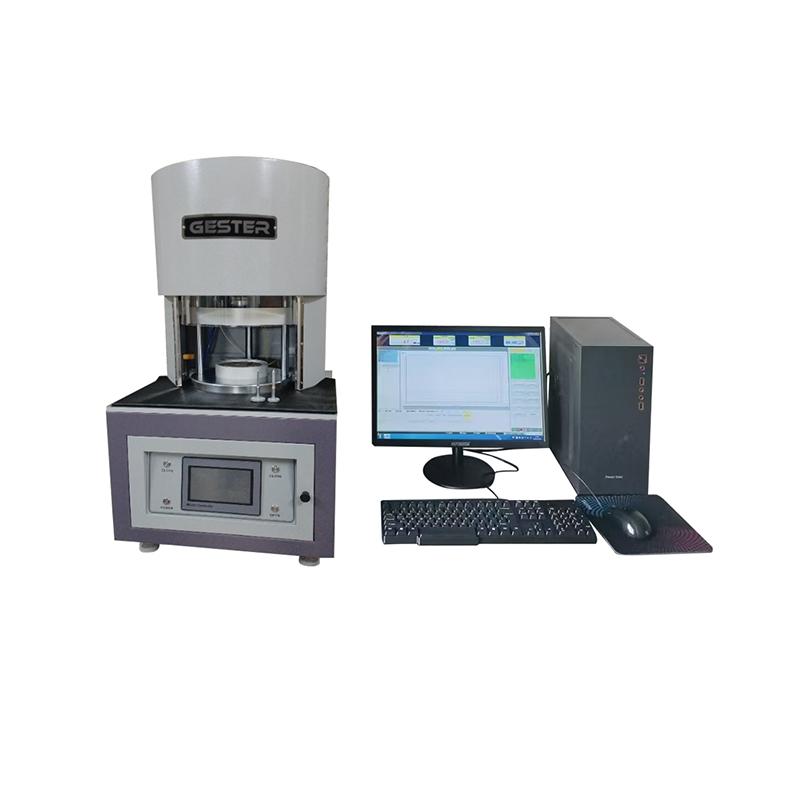

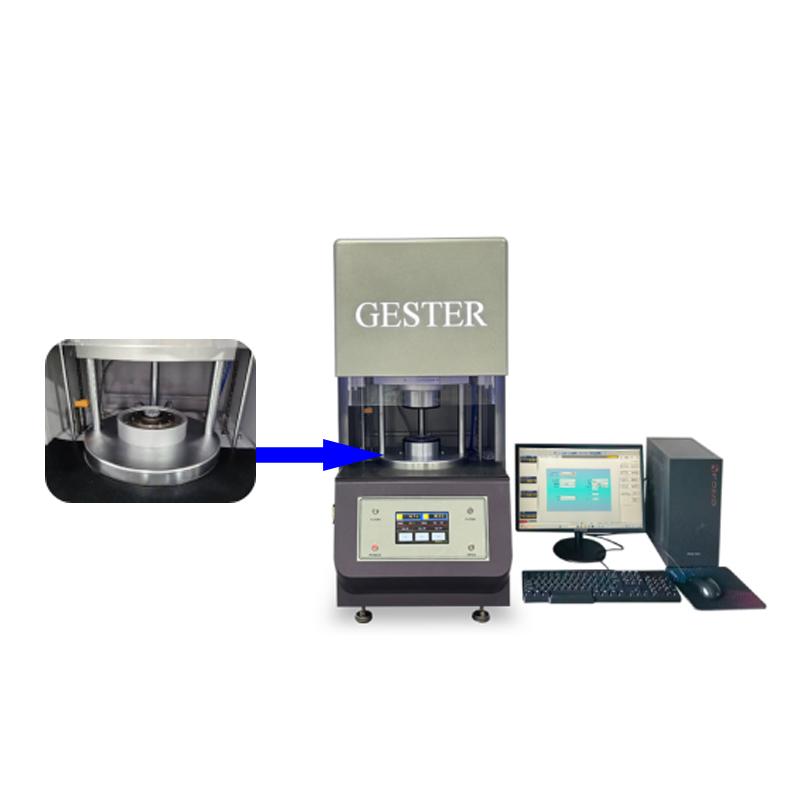

Mooney Viscometer GT-KR03

Product Introduction

Application

The Mooney viscometer is an essential instrument for determining the viscosity and scorch of raw rubber or compounded rubber.

It is specifically designed for maintaining quality, optimizing processes, and facilitating research in rubber manufacturing.

Standards:

ASTM D1646-2017、GB/T 1233-2008、GB/T 1232.1-2016、ISO 289-2-2016、ISO 289-1-2015

Feature

The Mooney viscosity plays an important role by offering insights into the processibility, molecular weight, and distribution range in rubber manufacturing. It helps in quality control, process improvement, and optimizing materials properties for research and development.

Wide Applicability Across Diverse Industries: Suitable for diverse industries such as, rubber manufacturing, footwear, construction, automotive, household items, transportation, and mining.

Mooney Viscometer Key Specifications

Test mode	Mooney viscosity, Mooney scorch, stress relaxation
Temp. control	Computer operation, PID.SSR control
Temp. range	Ambient temp. ～200℃
Temp. display resolution	0.1℃
Temp. control stability	±0.1℃
Temp. accuracy	≤±0.5℃
Temp. recovery time	≤45 sec
Heating time	Ambient temp. ～100℃ < 6 min
Mooney range	250 MU
Torque display resolution	0.001 MU
Rotor speed	2.00 rpm
Rotor speed accuracy	±0.01 rpm
Software	English software
Communication interface	RS232
Motor	Servo motor
Compressed air	3.5kg/c㎡(0.35MPa)(prepared by customer）
Dimension (W×D×H)	70 cm × 85 cm × 130 cm
Power	1∮ AC 220V 50/60Hz 2kW（or specify）
