Taber Abrasion Resistance Test Machine GT-C14A Taber Abrasion Resistance Test Machine GT-C14A Taber Abrasion Resistance Test Machine GT-C14A Taber Abrasion Resistance Test Machine GT-C14A Taber Abrasion Resistance Test Machine GT-C14A
Taber Abrasion Resistance Test Machine GT-C14A
  • Brand:

    GESTER
  • Item No.:

    GT-C14A
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    China Port
  • Lead Time:

    10-30 days
  • Payment:

    T/T, L/C
contact now Download

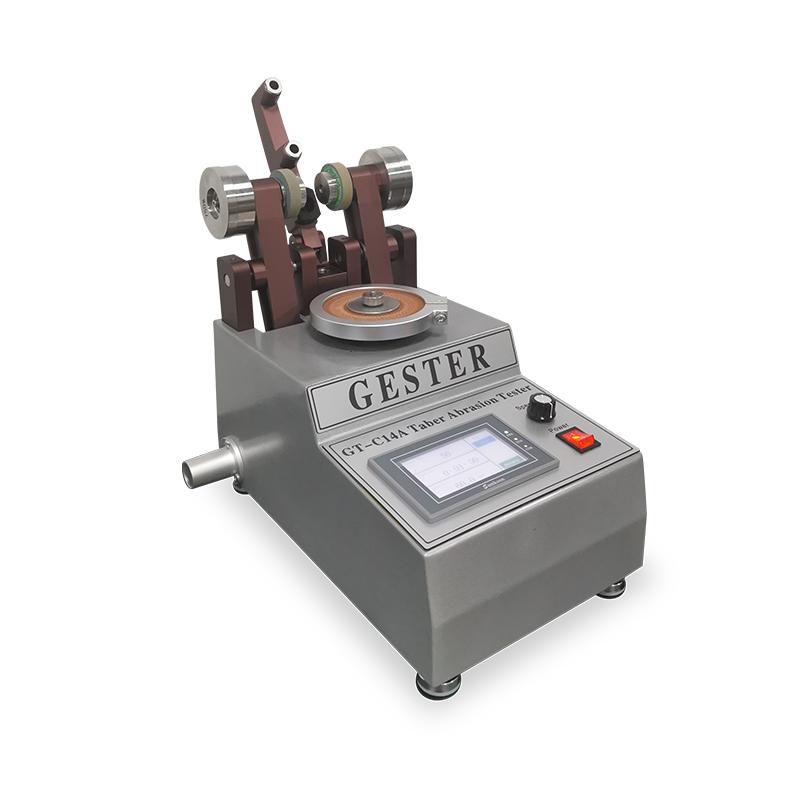

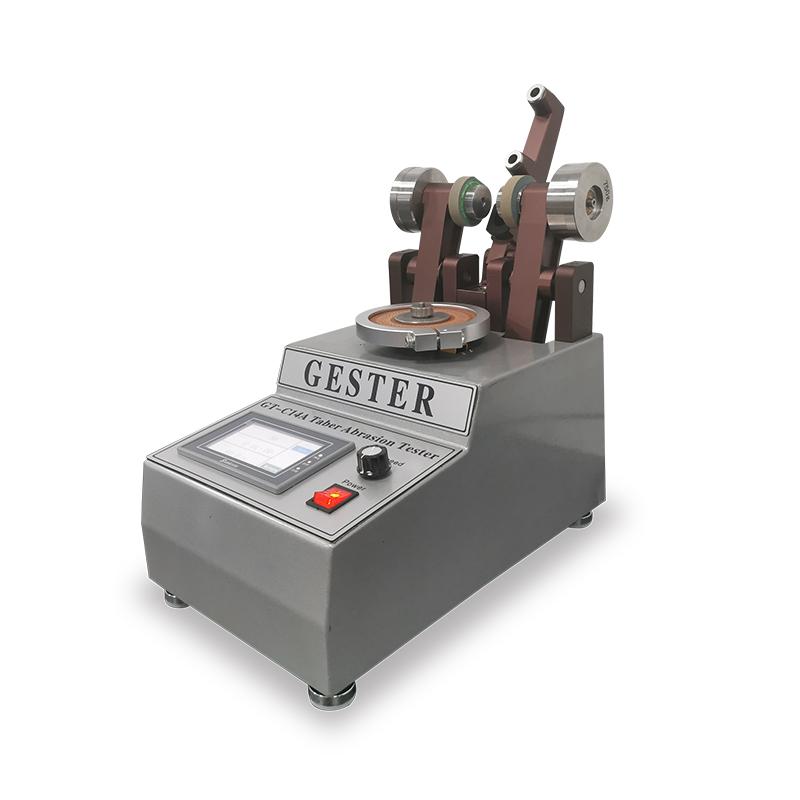

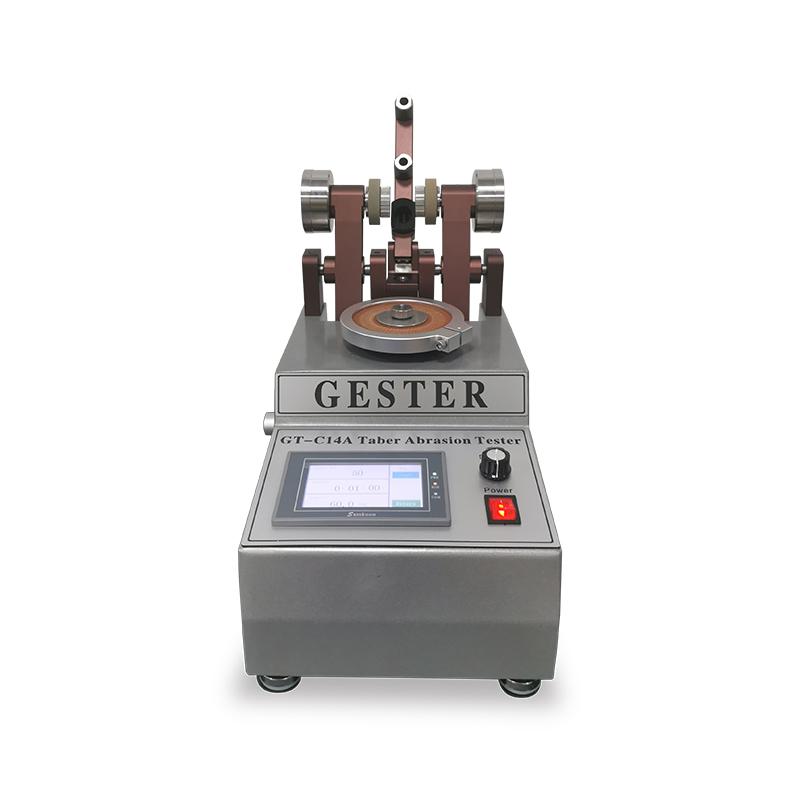

Taber Abrasion Resistance Test Machine GT-C14A


Product Introduction

Application:

The taber abrasion testing machine is used to determine the wear resistance of materials and assess its wear resistance degree, like measuring its mass loss, thickness loss, and transmittance etc.

It’s applicable for flat products, like suitcases, carpet, cardboard, clothing, glass, plastic coatins, metal coating, paint, varnishes, decorative sheets, high pressure sheets, plastics, textiles, flexible floor mats, traffic paint, tile, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, automobile interior decoration, resin, furniture, etc.


Feature

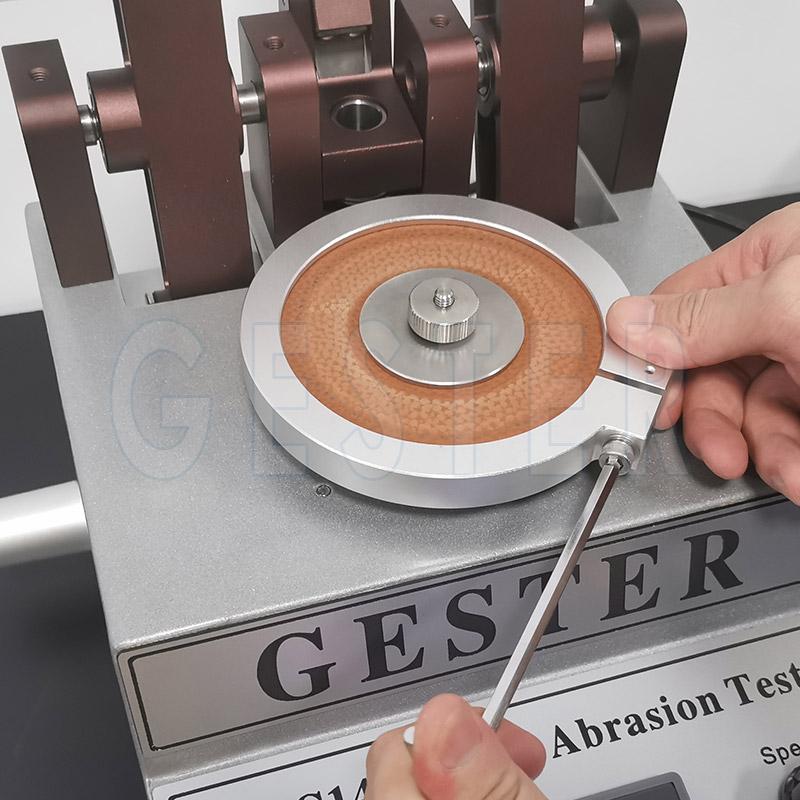

1.Unique wear process. Place test sample on turntable and two abrasive wheel press on material to make material to wear.

2.Specimen turntable speed control options of both 60 rpm and 72 rpm.

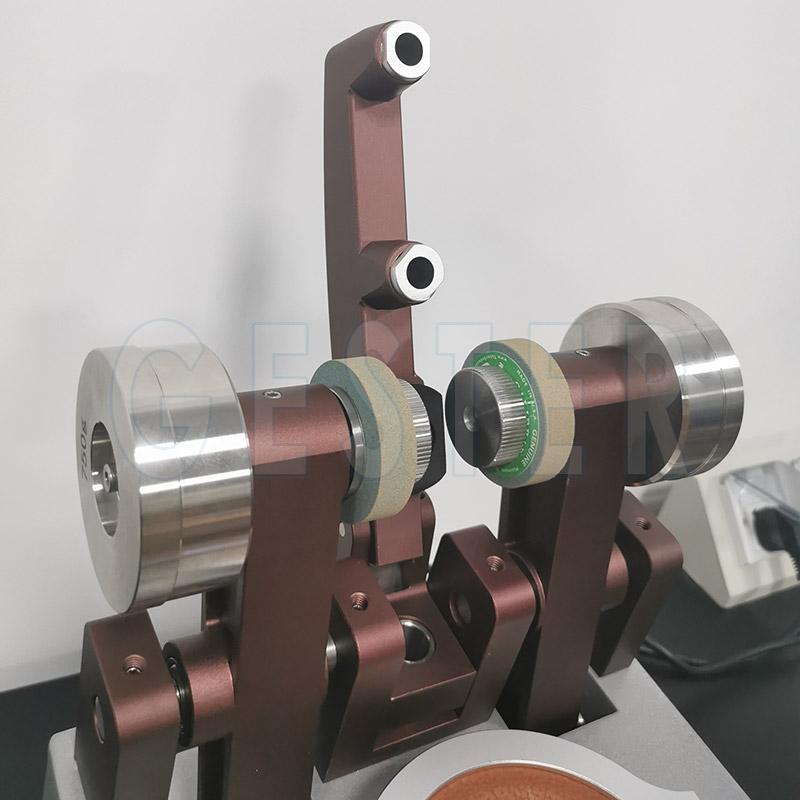

3.Precision steel weights of 250 grams and 750 grams are furnished to provide standard wheel loads of 500 and 1000 grams. Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm (250 grams).
4.Taber abrasion tester Equip with vacuum cleaner to clear abrasive dusts Can test with different wear medium and accessories.

taber abrasion tester

Key Specifications



Model

GT-C14A

Test position

1

3 kinds of load

250g, 500g, 1000g

Wheel internal faces apart

52.4±1.0 mm

Turntable speed

60±2 rpm or 72 ±2rpm

Counter

LCD display 0-999999

Standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, ISO 17076-1

Power supply

AC220V  50/60Hz

Dimensions ( L x W x H )

44cm×37cm×27cm

Weight

20kg

Standard Accessories

250g weights 1set

750g weights 1set

Paster pack of 5

Calibrase wheels  CS-10 or H18 (Option)

Power line 1pcs

Optional Accessories

Abrasive paper 150#

Refacing discs  S-11

Calibrase wheels: CS-32,CS-10F,CS-17,CS-5,CS-35,H-22,H-10,H-38



Taber Wear Wheel Selections

Sand wheel / Type

Material/Grind characteristic

Kind

Composition

CS-10/Soft

Rubber & Abrasive grain/ Gentle

Elasticity

Rubber,Abrasives

CS-10F/Soft

Rubber & Abrasive grain/ Very gentle

Elasticity

Rubber,Abrasives

CS-17/Soft

Rubber & Abrasive grain/Coarse

Elasticity

Rubber,Abrasives

H-10/Hard

Glass material/Fine roughness

Inelastic

Ceramics

H-18/Hard

Glass material/Moderate fine roughness

Inelastic

Ceramics

H-22/Hard

Glass material/Very fine roughness

Inelastic

Ceramics

H-38/Hard

Glass material/Very meticulous

Inelastic

Ceramics

CS-0, S-32/Soft

Smooth rubber/ Very gentle

Elasticity

No abrasive rubber

S-42, S-33/ Soft

Sandpaper stripe /Moderate

Elasticity

Sandpaper stripe

CS-5/Soft

Wool felt/ No wear

Elasticity

Blanket

S-35/ Hard

Tungsten carbide/Cutting

Inelastic

Tungsten carbide

S-39/--

Leather / Gritfeeder



Leather


Application Industry

All kinds of below materials can be tested on the Taber Abrasion Tester GT-C14A

  Abrasion Resistance Testing Machine
