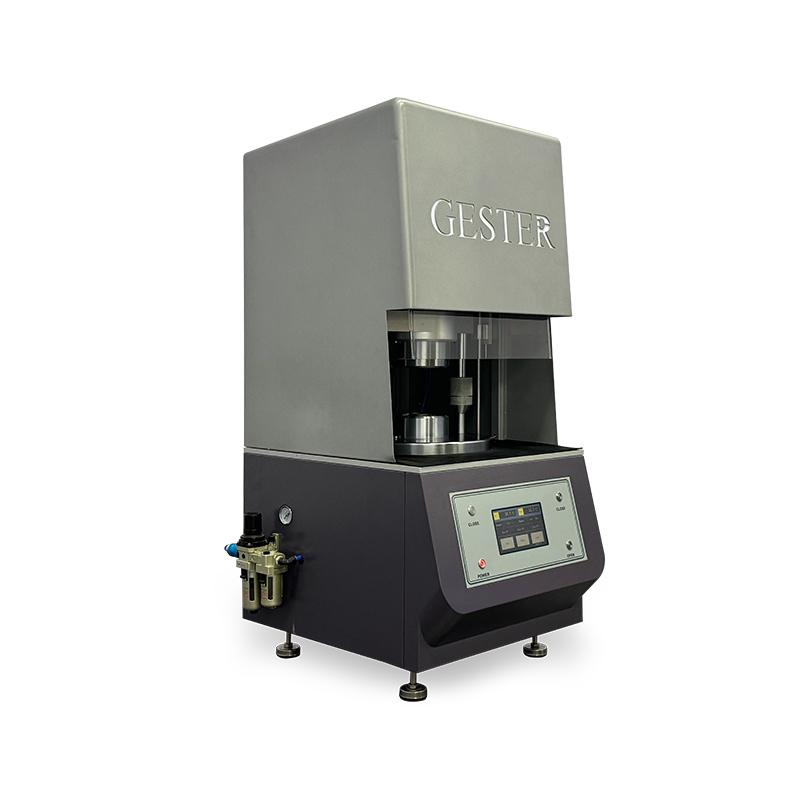

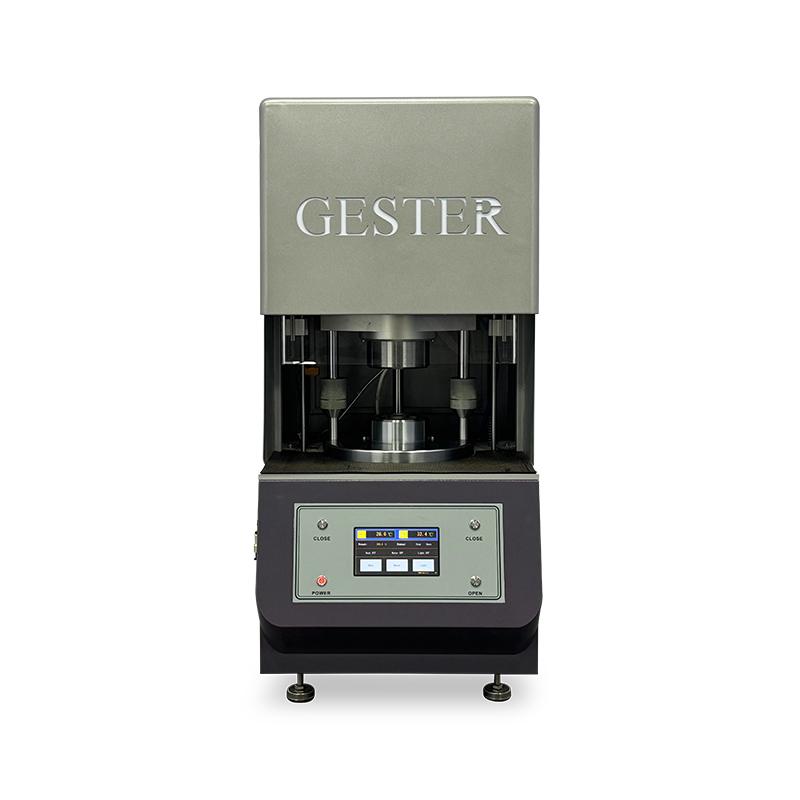

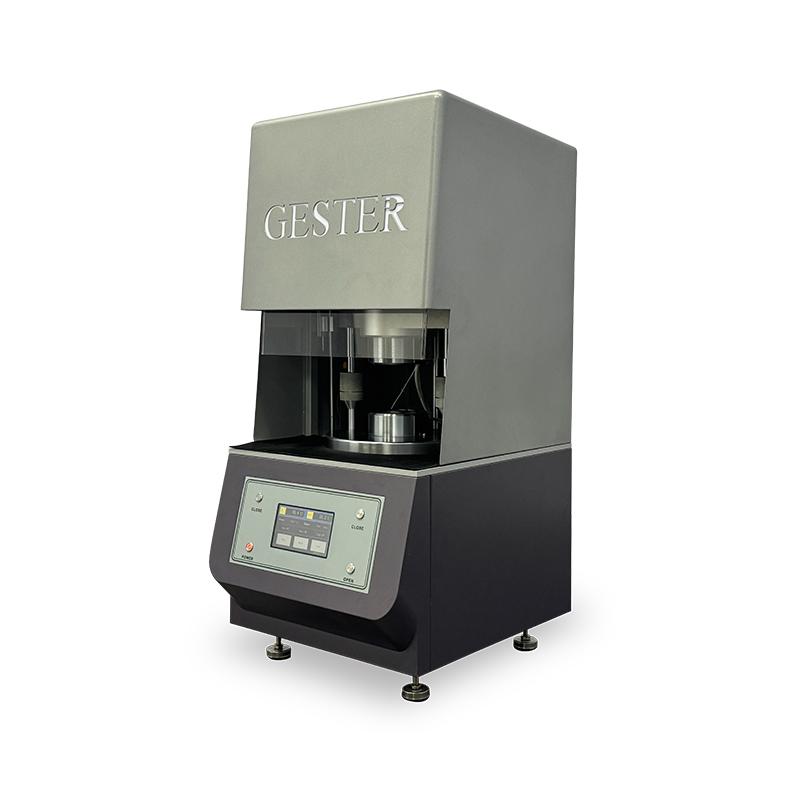

Moving Die Rheometer GT-KR01

Rubber Testing Equipment Manufacturers Suppliers, Factory direct sale

Brand:
GESTER
Item NO.:
GT-KR01
Order(MOQ):
1
Lead Time：
20-30 days

Inquire now

Product Detail

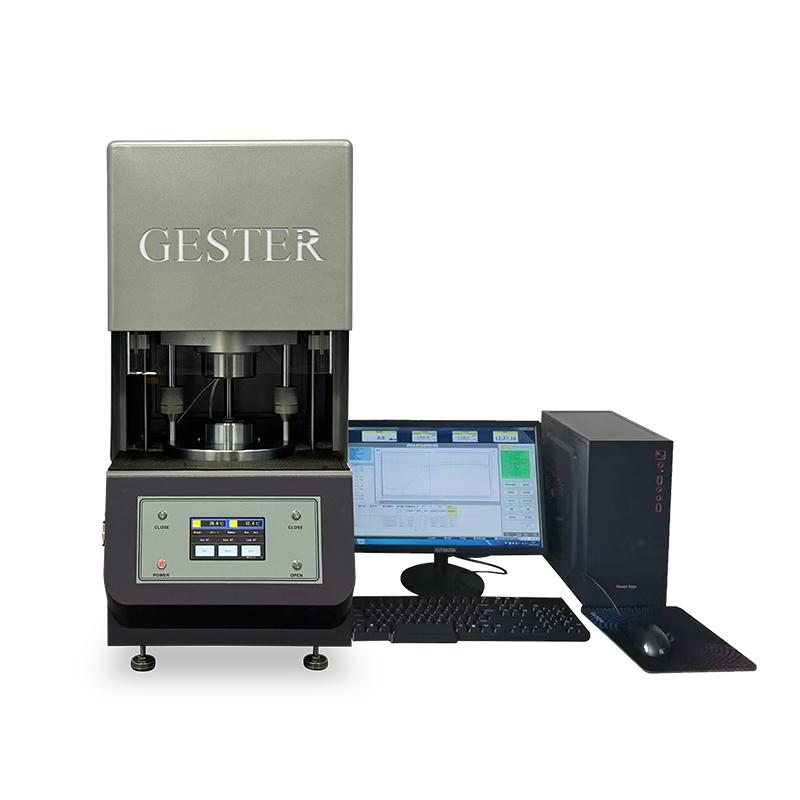

Moving Die Rheometer GT-KR01

Product Introduction

Application

It is specifically designed to determine the rheological properties of rubber compounds during the curing process.

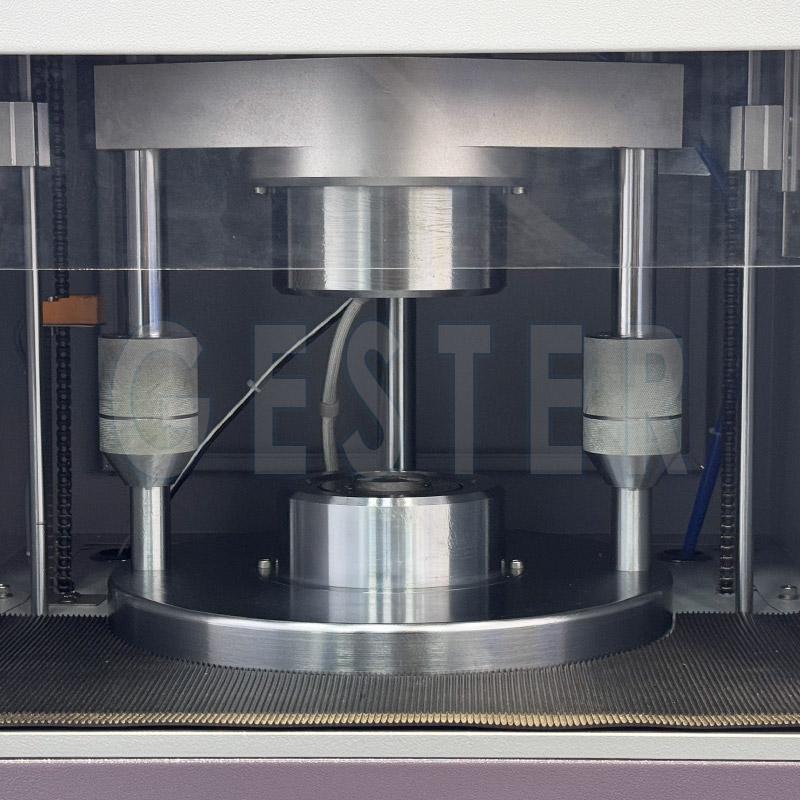

In the moving die rheometer, a rubber compound specimen positioned in a pressurized cavity is subjected to controlled heating. As the lower die produces sinusoidal oscillation, a torque sensor on the upper die detects the torque generated by the specimen.

Standards:

GB/T 16584-1996、ISO 6502-3-2018、ASTM D5289-2017

Feature

Equipped with advanced rheometer software, the moving die rheometer is specifically designed to analyze the curing characteristics of rubber compounds, including scorch time, cure time, cure rate, viscoelasticity, and cure plateau. This essential instrument serves as a significant tool for R&D and quality assurance.

MDR Rheometer Key Specifications

Model	GT-KR01
Die configuration	Unsealed
Temp. control	Computer operation, PID.SSR control
Temp. range	RT+10℃~200℃
Temp. display resolution	0.1℃
Temp. accuracy	±0.3℃
Temp. recovery time	≤45sec
Heating time	Ambient temp. to 190℃ < 6 min
Torque range	Elasticity S’: 1 to 200 lb-in
Torque resolution	0.01
Torque unit	dN-m, kgf-cm, lbf-in
Oscillation amplitude	±0.5°, ±1°, ±2°, ±3° [Select one, the default value is ±1°]
Oscillation frequency	100CPM (1.67Hz±0.01Hz)
Testing time	0.1S～99H
Motor	Servo Motor
Communication interface	RS232
Compressed air	4 kg/c㎡ (0.4 MPa) (prepared by customer）
Power	1∮ AC 220V 50/60Hz 800W
Weight	About 200 kgs
