Paper Air Permeability Tester GT-N54

Paper testing equipment manufacturers Air Permeability Tester

Brand:
GESTER
Item NO.:
GT-N54
Order(MOQ):
1
Payment:
TT OR L/C

Inquire now

Product Detail

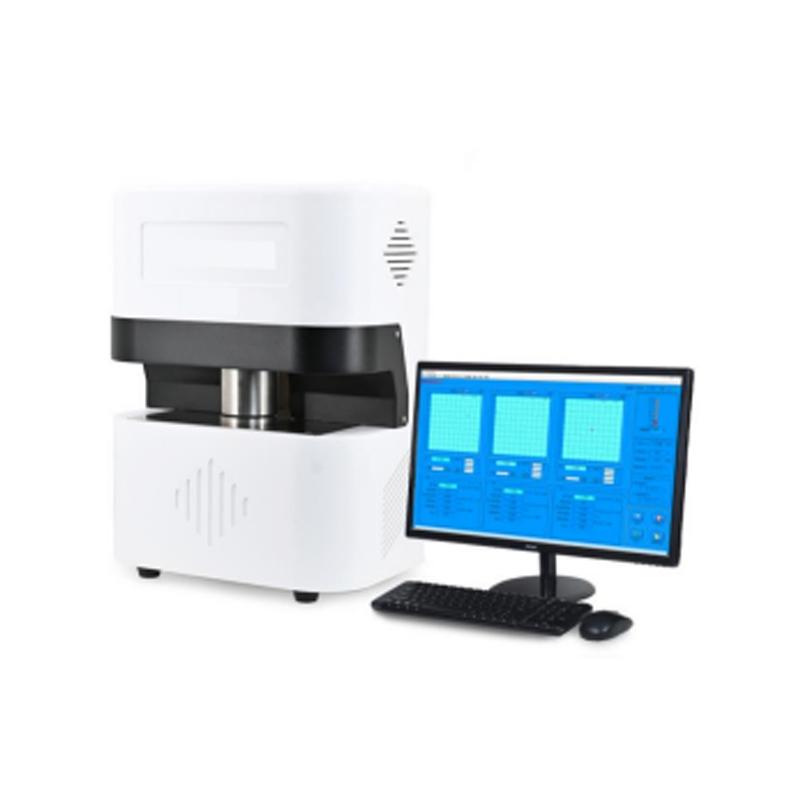

Paper Air Permeability Tester GT-N54

Product Introduction

Application:

The air permeability tester is used to determine the air transmission rate of polymer materials, films, paper, and other materials using the Bendtsen method (with optional Gurley or Schopper methods). It supports the following three air permeability measurement methods:

Bendtsen Method: Under a constant pressure difference of 1.47 kPa, the airflow rate through the test area is recorded after clamping for 5 seconds.

Schopper Method: Under a constant pressure difference of 1.00 kPa ± 0.01 kPa or 2.50 kPa ± 0.01 kPa, an appropriate test duration is selected to determine the airflow rate through the specimen via the test volume.

Gurley Method: Under a constant pressure difference of 1.21 kPa, the time required for 100 ml of air to pass through the specimen is measured.

Standards:

SJ_T 10171-2016, GB/T 458-2008, GB/T 36363-2018

Feature

Supports three test methods: Gurley, Schopper, and Bendtsen. (Select one of these method or combine all the three method in one machine)
Adjustable pressure difference range of 0–3 kPa with an accuracy of 0.01 kPa, fully meeting the test pressure requirements of all three methods.
Equipped with imported high-precision flow meters to meet the volume measurement requirements of all three methods.
Allows easy switching between test areas of 10.0 cm² and 6.42 cm² by attaching a mask.
Excellent instrument sealing with no leakage.
Computer-controlled operation.

Paper Air Permeability Tester Key Specifications

Model	GT-N54
Measurement Range	0.01-2.5um/(Pa.s)
Resolution	0.001um/(Pa.s)
Permeation Rate	0.01-120ml/min（other ranges optional）
Pressure Difference / Range	0 - 3 kPa, Accuracy: ±0.01 kPa (other ranges optional)
Effective Pressure Difference	Gurley method: 1.21kPa±0.01kPa
	Bendtsen Method: 1.47kPa±0.02kPa
	Schopper Method: 1.00 kPa±0.01kPa or 2.50±0.01kPa (airflow < 0.13 ml/L)
Test Area	Bendtsen Method: 50 mm × 50 mm, Effective area: 10.0 ± 0.2 cm²
	Schopper Method: 60 mm × 100 mm, Effective area: 10.0 ± 0.2 cm²
	Gurley Method: 50 mm × 50 mm, Effective area: 6.42 cm²
Test Time	1 - 999999 seconds, Accuracy: 0.1 s
Sample temperature and humidity treatment	A. Preconditioning: Atmospheric conditions <40°C, 10-35% RH, stand for 24 h
Sample temperature and humidity treatment	B.The time interval between the first and second steps is 1 h. The difference in mass should not exceed 0.25% of the total mass, and the sample should be in equilibrium.
Dimensions	420 X 300 X 165 mm (L X B X H)
Power Supply	AC 220V, 50Hz, 100w
Weight	15kg
