Brand:
GESTERItem NO.:
GT-N06Order(MOQ):
1Lead Time：
10-30 DaysProduct Detail

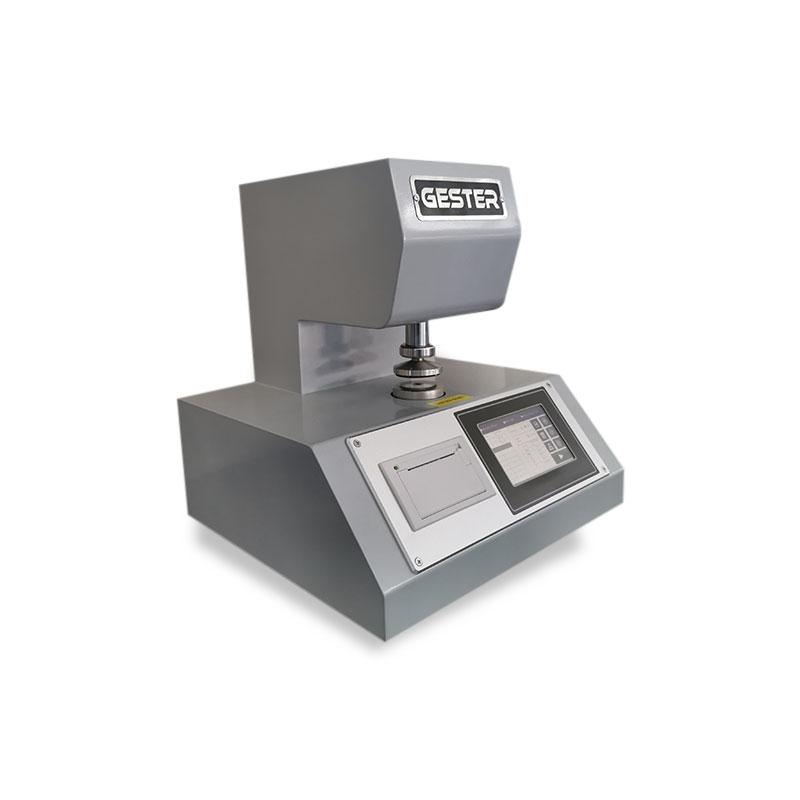

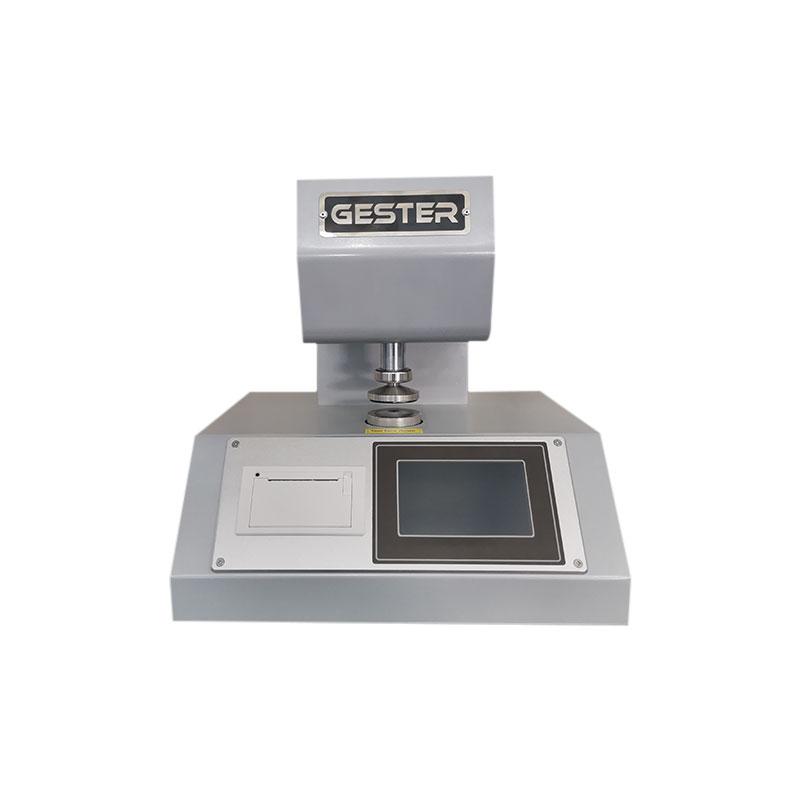

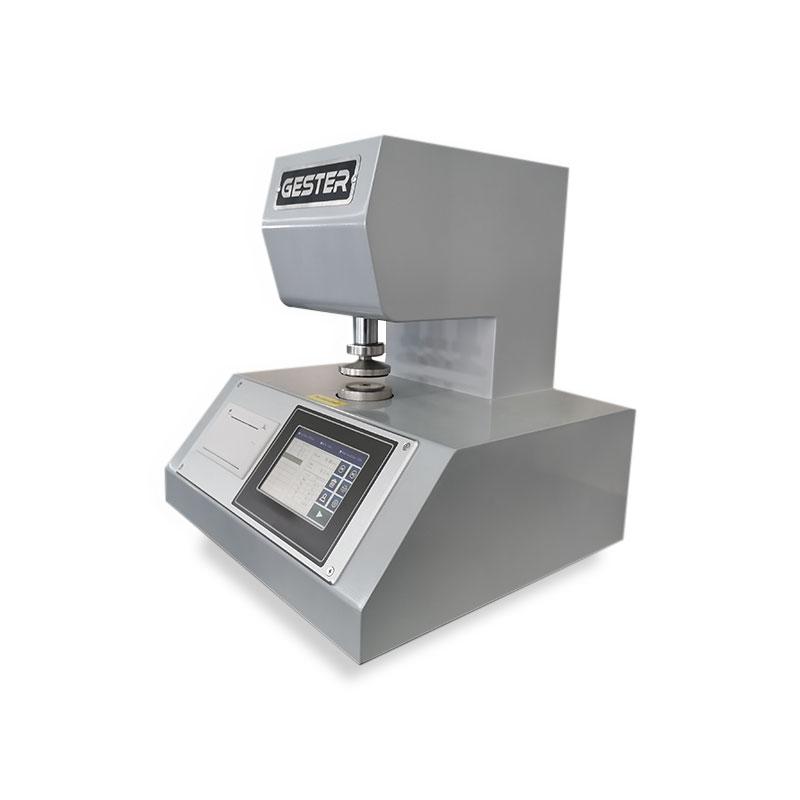

The Smoothness Tester is used to detect paper and paperboard surface smoothness of a special instrument, is based on the international general Buick BEKK smoothing instrument working principle of the latest design and development of an intelligent paper and paperboard smoothness performance testing instrument. It is suitable for paper making enterprises, printing enterprises, quality supervision bureau and scientific research institutions. It is not applicable for measuring high ventilation paper/cardboard with a thickness greater than 0.5mm, as a large air passing through the test surface will affect the test results.
Standards
ISO 5627, GB/T 456
Level I: Using a large vacuum container (380 mL), the vacuum level changes, 50.66kpa～48.00kpa.
Level II: Using a small vacuum container (38 mL), the vacuum level changes, 50.66kpa～48.00kpa.
Level III: Using a large vacuum container (380 mL), the vacuum level changes, 50.66kpa～29.33kpa.
Key Specifications of Paper Stiffness Tester
|
Model |
GT-N06 |
|
Measuring Range |
(0~9999)S |
|
Thickness of Test paper |
≤5mm |
|
Test Level |
(1-99999)S,(1-15)S, (15-300)S, (300-99999)S ( 3 levels switch) |
|
Timing error |
≤1s（counting 1000s) |
|
Testing Area |
10±0.05cm² |
|
Measuring Pressure |
100kPa±2kpa |
|
Gasket |
Thickness: 4±0.2mm Parallelism: 0.05 mm Diameter: no less than 45 mm Recovery elasticity: at least 62% Hardness: 45 ± IRHD (International Rubber Hardness) |
|
Data Output |
RS 232 (optional) |
|
Working environment |
Temperature: 3℃~35℃, Humidity<80%, no condensation |
|
Power Supply |
220V, 50/60GHZ |
|
Size(L×W×H, mm) |
370×330×390 mm |
|
Weight |
About 30kg |
