Seam Clamp is the assistant tool used for toys tension test and is a Seam Clamp Metal Clamps, 16CFR 1500 Metal Clamps, ISO 8124-1 GB6675-2 Metal Clamps .
Brand:
GESTERItem NO.:
GT-M50Order(MOQ):
1Payment:
T/T, L/CShipping Port:
Xiamen PortLead Time:
in stockProduct Detail

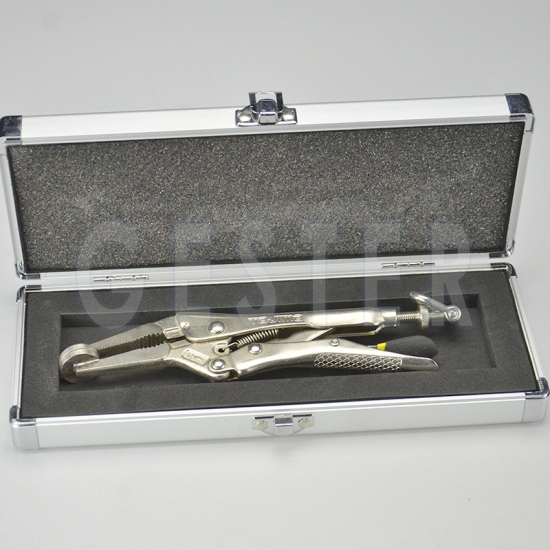

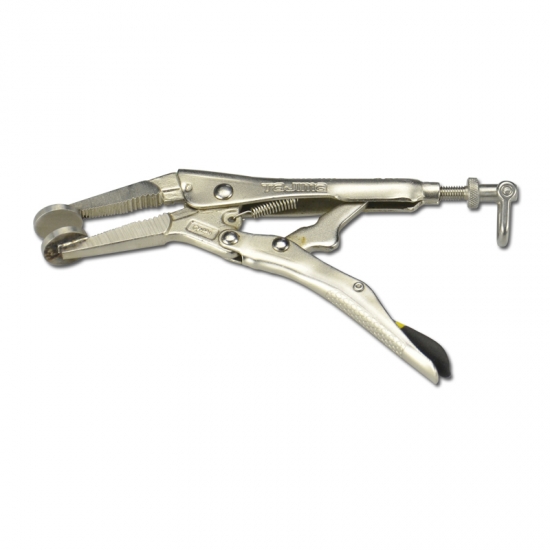

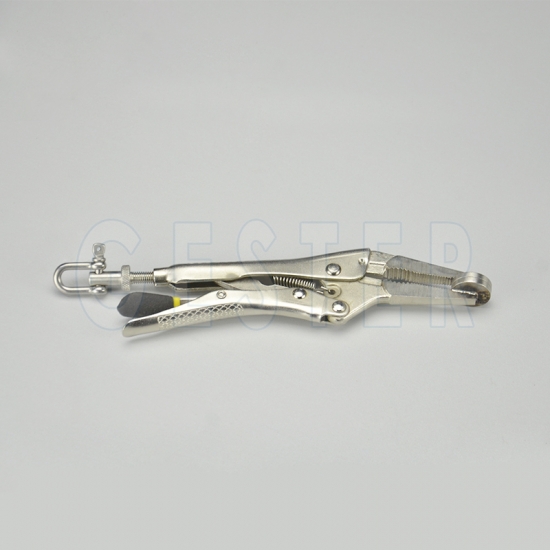

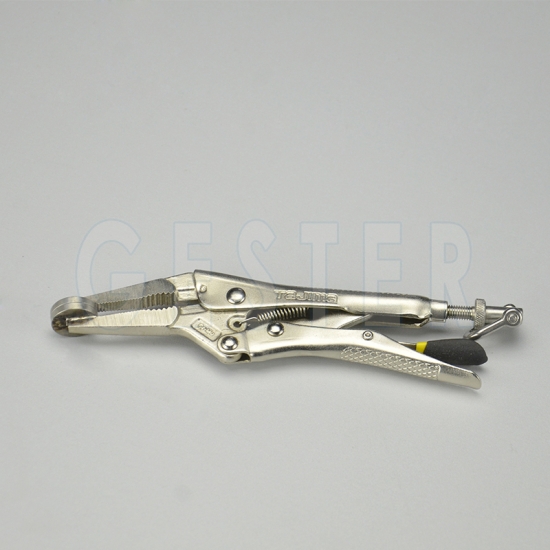

Seam Clamp for Toys Tension Test GT-M50
Application:

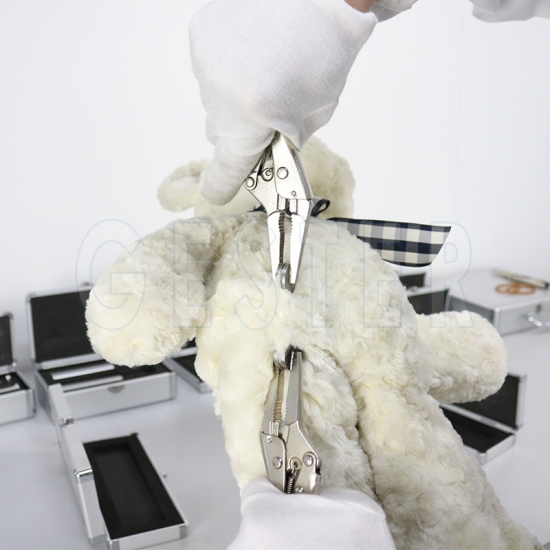

Seam Clamps is the assistant tool used for toys tension test. Mainly applied to the cloth seam strength test of soft-filled toys. When testing, need to use two clamp pliers.
|
Model |
GT-M50A |
GT-M50B(washer with hole) |
Standards |
EN-71-1 section 8.4.2.2 ISO 8124-1 section 5.24.6.2, GB6675-2 section 5.24.6.2 EN 16890-2017 Section 8.3.2 |
ASTM F963 section 8.9.1.1, 8.16, 16CFR 1500 section 51, 52, 53 |
Opening range |
0mm-50mm |
|
Throat depth |
45mm |
|
Diameter of Table |
19mm |
|
Dimension |
205×40×15mm |
|
Packing box dimension |
240×95×35mm |
|
Weight |
0.7kg |
Accessories:
Optional accessories |
Optional |
IMADA FB-200N Push-Pull Scale |
