Impact Penetration Tester GT-C33
Impact Penetration Tester GT-C33
  • Brand:

    GESTER
  • Item No.:

    GT-C33
  • Certificate:

    ISO 9001, UKAS, CE Certificates
  • Standard:

    AATCC 42
contact now

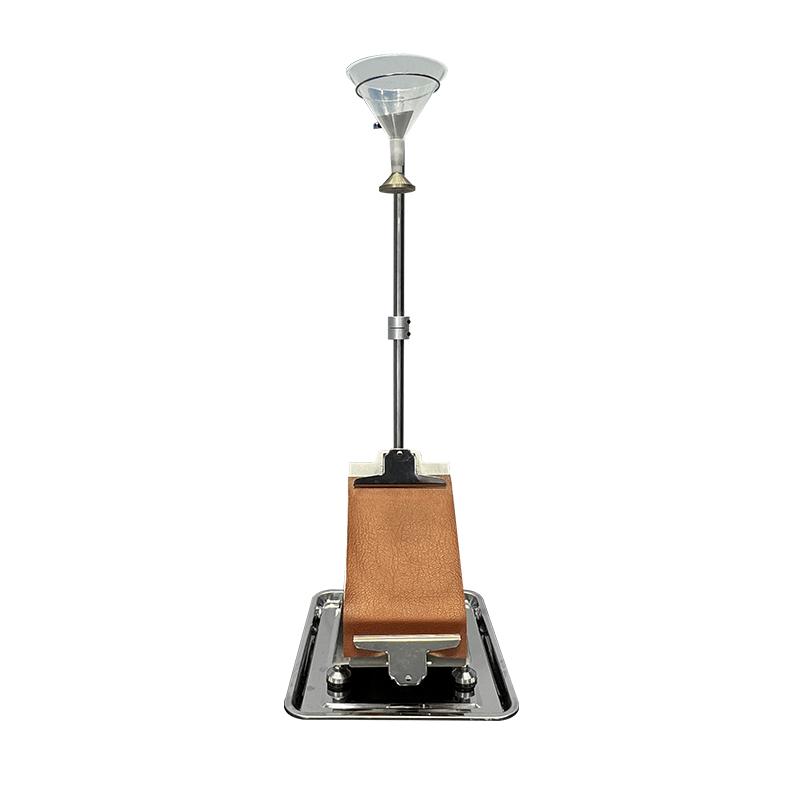

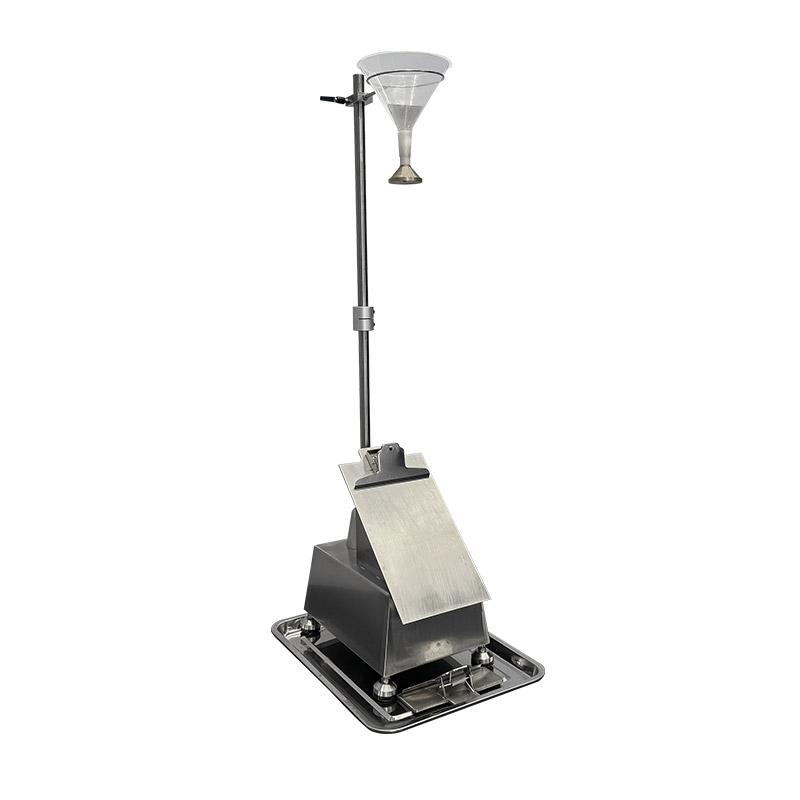

Impact Penetration Tester GT-C33



Product Introduction

Application:

This tester is applicable to any textile fabric, which may or may not have been given a water resistant or water-repellent finish.It measures the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration.

water impact penetration tester is especially suitable for measuring the penetration resistance of garment fabrics.




Standards:

AATCC 42

Impact Penetration Tester Working Principle

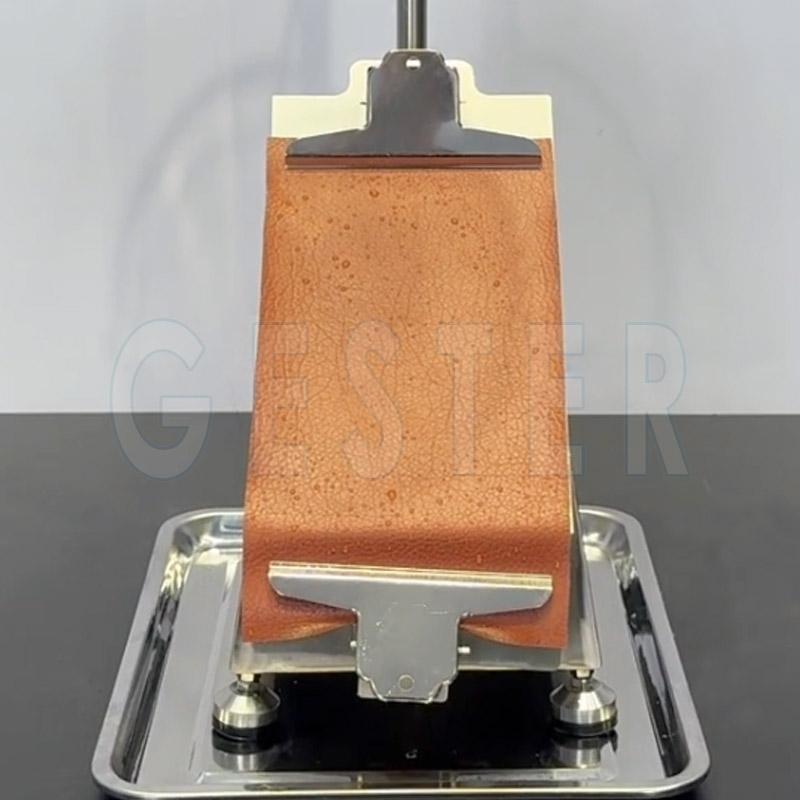

A volume of water is allowed to spray against a taut surface of a test specimen backed by a weighed blotter. The blotter is then reweighed to determine water penetration and the specimen is classified accordingly.



Key Specifications



Model

GT-C33

Test water quantity

500ml

Distance between nozzle and center of specimen

600mm

The width of clamp

152mm

Specimen gradient

45°

Tensioning Clamp

453.6g(1Lb)

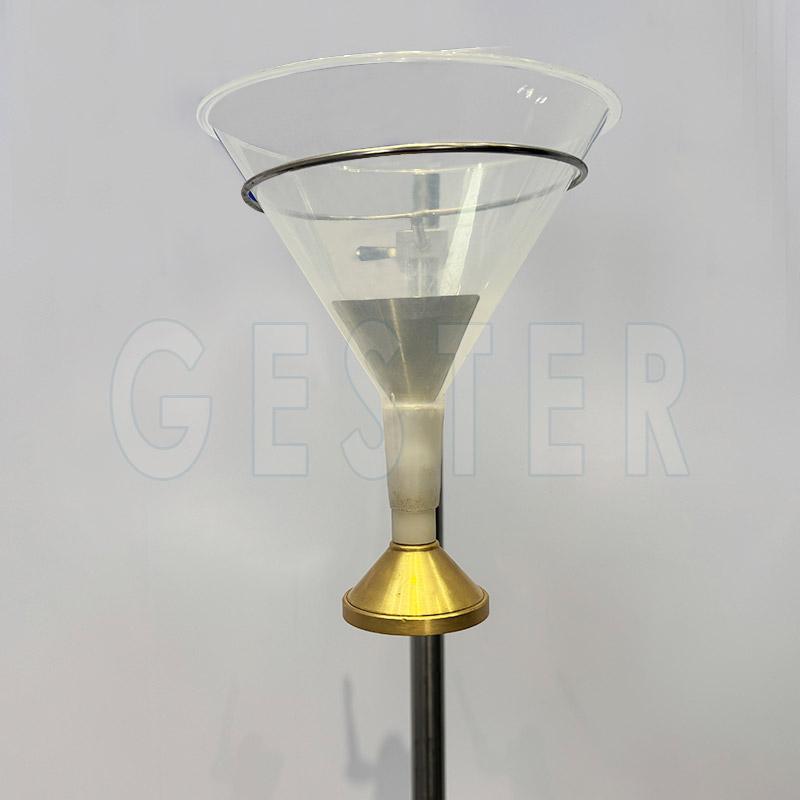

Nozzle

Diameter: 56mm,

Blowhole Diameter: 1mm, 25 blowholes

Size of Specimen

178×330mm

Dimensions(L×W×H)

34×54×108cm

Weight

18kg

Accessories:

Standards accessories

1pc


 Measuring glass


1pc


 Nozzle


1pc

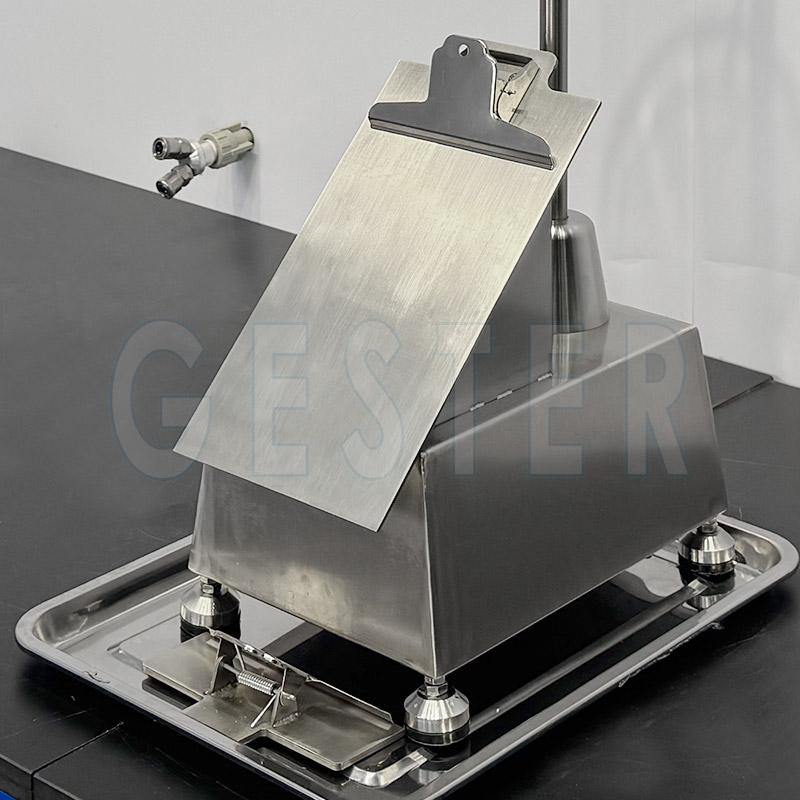

 Specimen clamp


Option Accessories

Optional


 Bibulous paper


Optional


 Balance: 200g  0.1g
