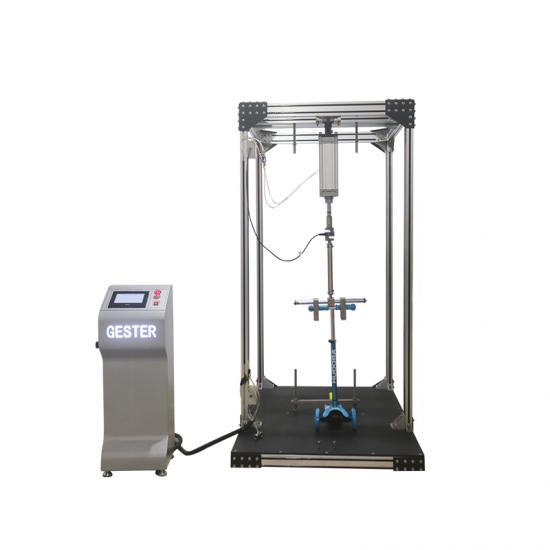

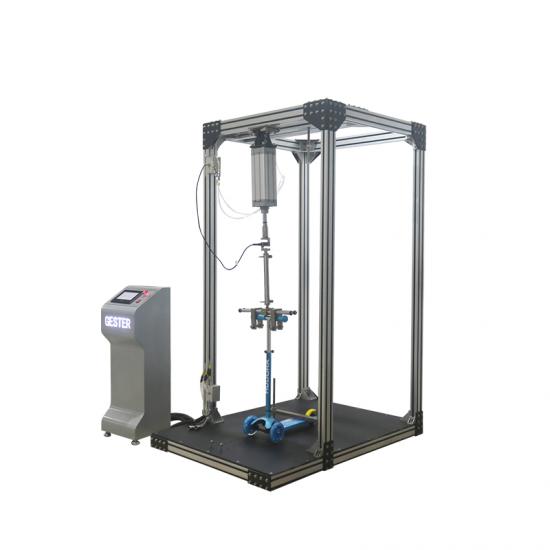

Toys Scooter Steering Tubes Strength Tester GT-M82

Toys Scooter Steering Tubes Strength Tester apply to test the strength of toy scooter steering tubes,including resistance to downward forces and resistance to upward forces.

  • Brand:

    GESTER
  • Item NO.:

    GT-M82
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen
  • Lead Time:

    10-30 days
  • Product Detail

Toys Scooter Steering Tubes Strength Tester GT-M82


Product Introduction

Application:

Toys Scooter Steering Tubes Strength Tester apply to test the strength of toy scooter steering tubes,including resistance to downward forces and resistance to upward forces.


Standards:

EN 71-1; ISO 8124-1


Test Method

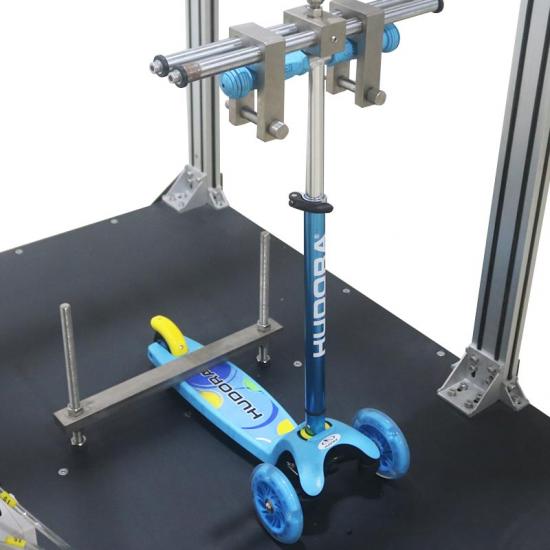

1.Resistance to downward forces

Place the toy scooter on a horizontal plane and secure it so that it will stand upright during the test.Check that the locking devices are correctly engaged.

A) For toy scooters with two handles, suspend a mass of (50+/-0.5)kg at the centre of each handle. (see Figure 1 a) Maintain the load for 5 min. Determine whether the steering tube collapses and the locking devices are still operable and engaged. Remove the 50kg masses. Release the main locking devices and with the secondary locking device still engaged, load the handles with a mass of (25+/-0.2)kg each and maintain the load for 5 min. Determine whether the secondary locking device is still operable and engaged.

B) For toy scooters with steering tubes without handles, perform the test using a load with a mass of (100+/-1)kg and (50+/-0.5)kg respectively on top of the tube.(see Figure 1 b)

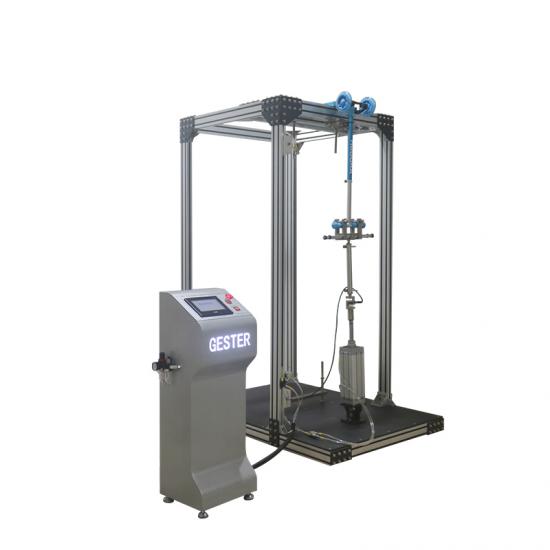

2.Resistance to upward forces

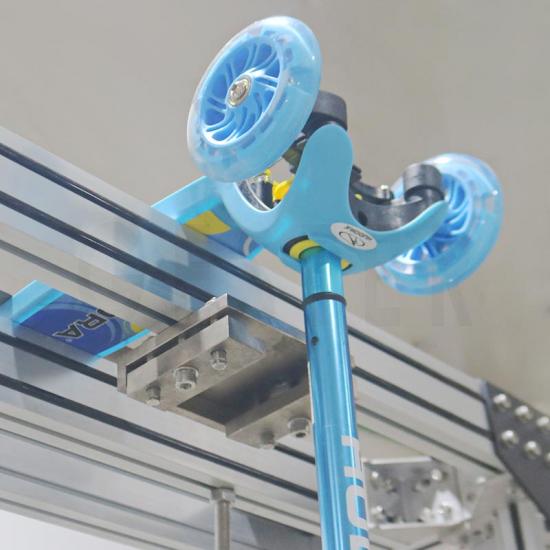

Place and secure the toy scooter upside down on a podium(see Figure 3 c). Check that the locking devices are correctly engaged.

A)For toy scooters with two handles, suspend a mass of (25+/-0.2)kg at the centre of each handle. Maintain the load for 5 min.

l B) For toy scooters with steering tubes without handles ,place a mass of (50+/-0.5)kg on the end of the steering tube. Maintain the load for 5 min. Determine whether the steering tube has separated and the locking devices are still operable and engaged.


GT-M82 Toys Scooter Strength Tester

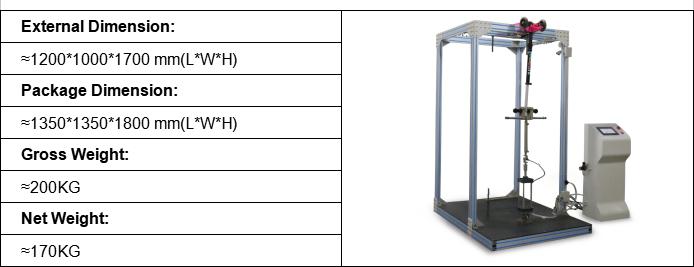

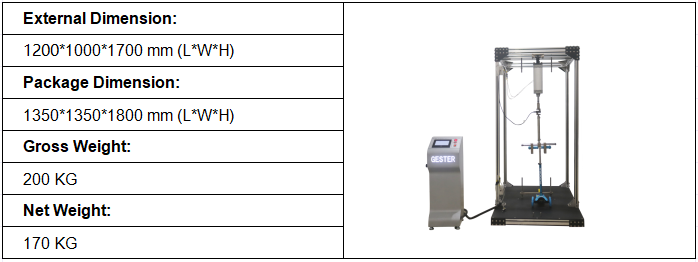

Dimensions

Toys Scooter Steering Strength Tester


Key Specifications



Model

GT-M82

Loading method

Cylinder loading

Control mode

Touching screen control

Test load

(25±0.2)kg

(50±0.5)kg

(100±1)kg

Dimension

1200×1000×1700mm

Weight

170kg

Standards

EN-71-1 section 8.27

ISO 8124-1 section 5.29

Optional accessories

GT-MA12 Air compressor



Application Industry

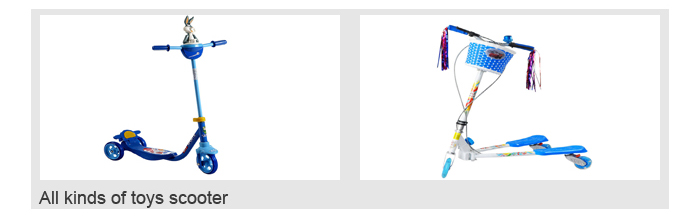

All kinds of toy scooter can be tested on Toys Scooter Steering Tubes Strength Tester.

Toys Scooter Steering Tubes Strength Tester
