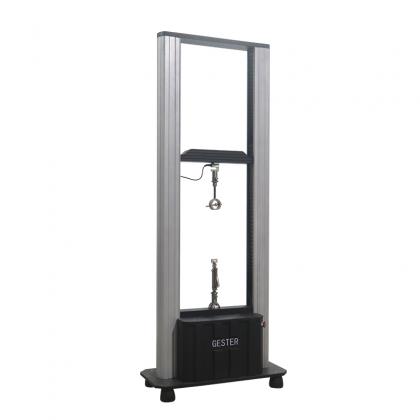

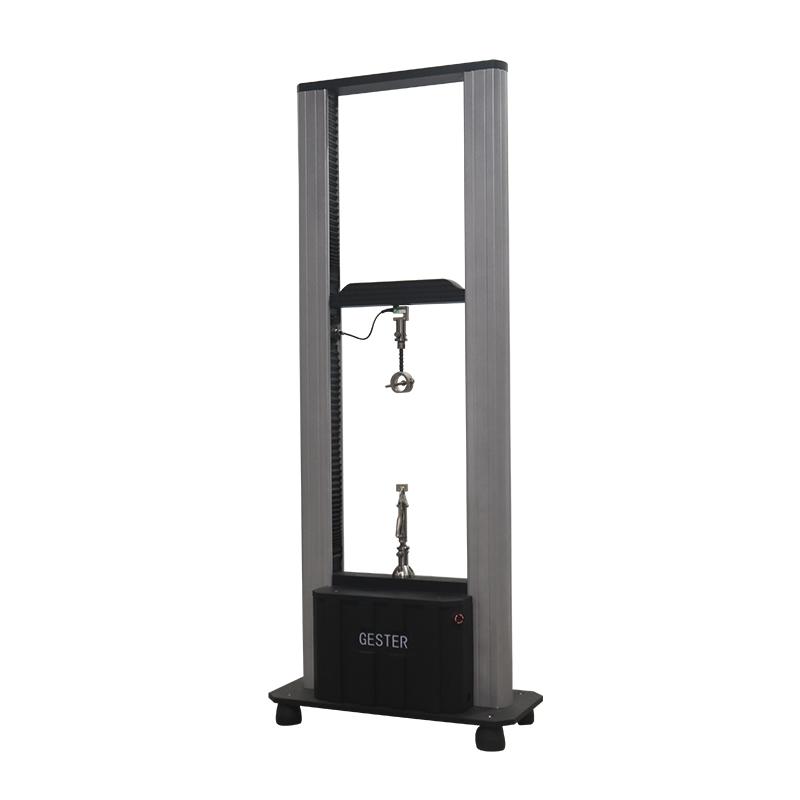

50KN Dual Column Universal Testing Machine GT-UA01-5T
Application:
Universal testing machine is deigned to determine the mechanic performance test for rubber, plastic, aluminum tube, composite materials, waterproof materials, prevent material, yarn, fiber, wire and cable, paper, spring, wood, packaging materials, tape material. For example, stretched, compressed, bended, sheared, torn, peeled and so on, it also can do closed loop test. constant stress, constant strain, flabby.
For tensile testing machine system, it is suitable for force performance and related physical parameter under stretching, compressing, bending, shearing, tearing, peeling. It can do stretch, compression, three-point bending, four-point bending, shear, tear, peel, puncture of the finished shoes, carton holding pressure, foam cyclic compression, spring pulling and pushing dynamic and static cycle test.
Model
GT-UA01-5T
Capacity
50KN
Force unit switch
N, kN, g, kg, ton, lb, etc. (Can be option any international unit.)
Displacement unit switch
mm, cm, inch, etc. (Can be option any international unit.)
Load resolution
1/100,000
Load accuracy
±0.5%
Load amplification
x 1, x 2, x 5, x 10 Auto range
Testing width
500mm
Stroke
1000mm (excluding the length of grips）
Test speed range
0.001~500mm/min
Speed accuracy
±0.5% servo control
Displacement resolution
0.001
Driving method
Servo motor
Power
3ø, 380V, 50/60Hz, 3KVA
( Can be customized according to customer’s requirement)
Dimensions
About 110cm x 70cm x 240cm(WxDxH)
Weight
About 400kg
Accessories:
|
Standard accessories |
1pc |
English operation software |
|
1pc |
Cable connect with PC |
|
|
Option accessories |
Optional |
HP Desk Top Computer |
|
Optional |
Other grips |
