Single Column ASTM Tensile Test Machine GT-UA03 Single Column ASTM Tensile Test Machine GT-UA03 Single Column ASTM Tensile Test Machine GT-UA03 Single Column ASTM Tensile Test Machine GT-UA03 Single Column ASTM Tensile Test Machine GT-UA03

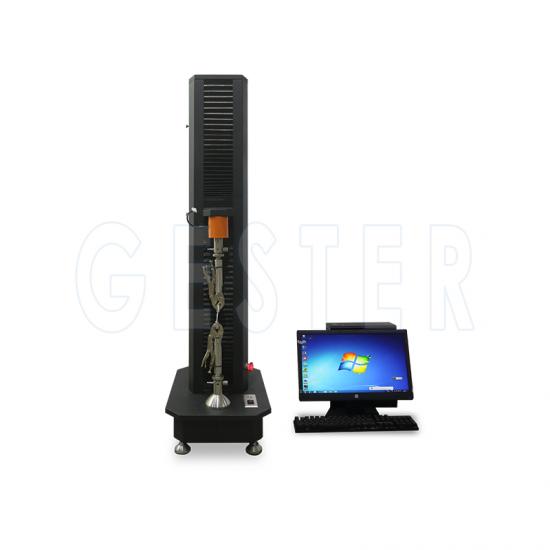

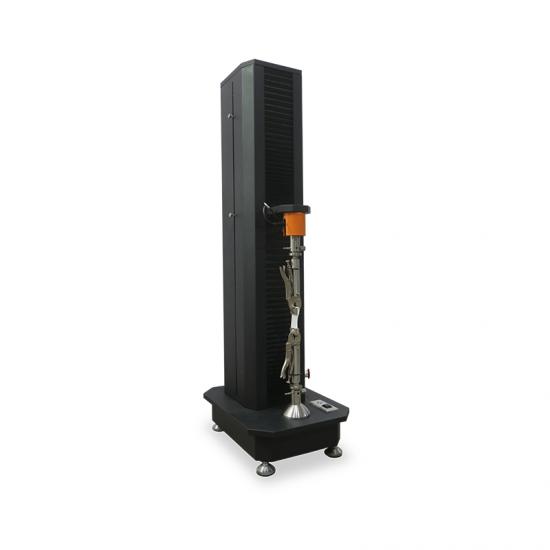

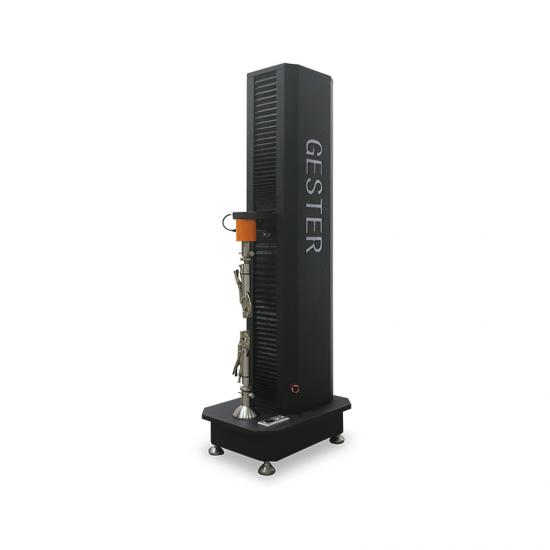

Single Column ASTM Tensile Test Machine GT-UA03
  • Brand:

    GESTER
  • Item No.:

    GT-UA03
  • Certificate:

    ISO 9001, UKAS, CE
  • Standard:

    SATRA, ASTM, ISO, BS, GB
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Payment:

    T/T, L/C
contact now

Single Column Tensile Test Machine GT-UA03


Product Introduction

Application:

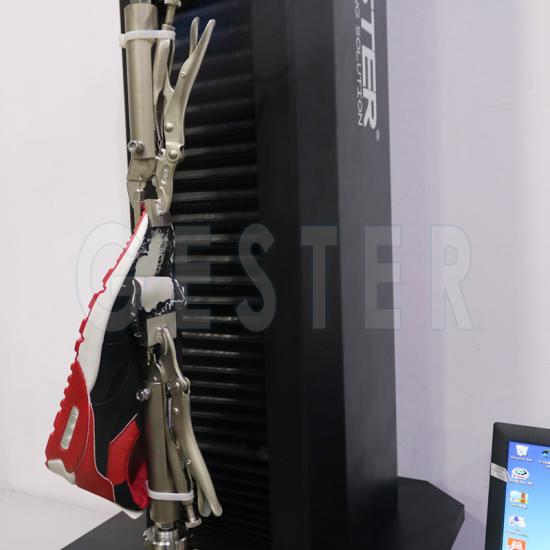

Tensile Test Machine is applied to the test of mechanical property like tension, compression, bending, shear , tear, peel of materials such as rubber, plastic, aluminum tube, composite materials, waterproof materials, prevention material, yarn, fiber, wire and cable, paper, spring, wood, packaging materials, adhesive tape, etc. And it can also fulfill the multi-closed loop test like constant stress, constant strain, creep, slack, etc. When it installs with special device, it can do other test items like reversion, cupping.



Feature:

1.The power system: servo motor and servo drivers and worm gear and rod reducer and ball screw.
2.Control system: adopting Pulse Command control method, it will be more accuracy and easy to control.
3.The speed control range: 0.001-1000 - mm/min.
4.The intermediate plate adjustment is both fast coarse and slow fine-tuning.
5.It will return to original site and save automatically testing.
6.Data transmission mode: RS232 transmission.
7.Display mode: computer screen display.
8.This instrument can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
9.Al plate walking space: 1000 mm (excluding fixture, according to the customer requirements ).
10.Using the LINE DRIVE encoder strong anti-interference ability displacement resolution 0.001 mm.
11.Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic break point stop function.


Standards:

SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411,TM 410, ASTM D 751/2209 /412/624  FIA 1206,  BS5131- 3.7, 5.11, 5.13 , BS 5131-2.6

ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708,

ISO 17696, ISO17706, AS/NZS 2210.2-5.2.4, DIN 53331, GB/T3903.8, GB/T3903.9, GB/T3903.14, GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23, GB/T 3903.24, GB/T 3903.25,

GB/T 3903.26, GB/T 3903.29, GB/T3903.32, GB/T 3903.39, GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T21396

QB/T11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198, HG/T 2726, HG/T 2877, HG/T4805


Dimensions

GT-K03 Tensile Tester



Key Specifications


Model

GT-UA03

Capacity

50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN

Display

Computer display

Force Resolution

1/100,000

Force Accuracy

≤+/-0.5%

Stroke Range

1000mm

Stroke Resolution

0.001 mm

Test Speed

0.001-1000mm/min can set on display, with up & down fast adjustment button of grips

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button. specimen damage automatic stop

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power

120W

Power Supply

AC 220V 50-60HZ 10A

Dimensions

Approx 50x40x145 cm

Weight

60kg


Accessories:

Standards accessories

1set

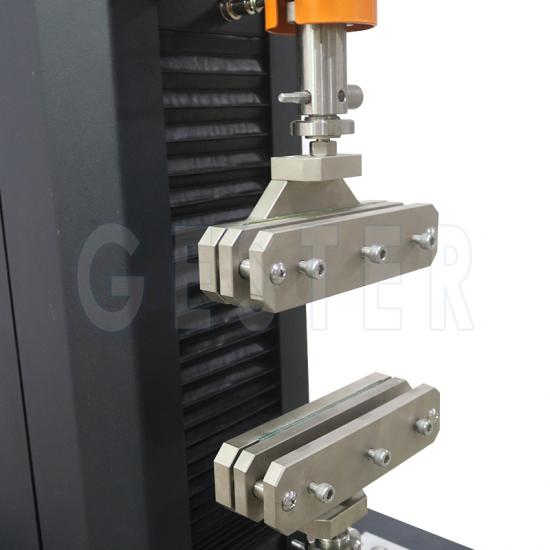

Manual grips



1pc

Load cell



1pc

English operation software



1pc

Cable connect with PC

Option accessories

Optional

Desk top computer



Optional

Other grips
