300KN Universal Tensile Testing Machine GT-UA01-30T

Tensile Testing MachinesManufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-UA01-30T
Order(MOQ):
1
Payment:
T/T, L/C
Lead Time：
15-30 days

Inquire now

Product Detail

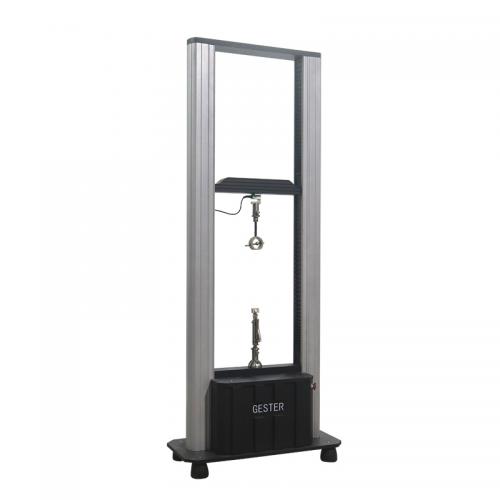

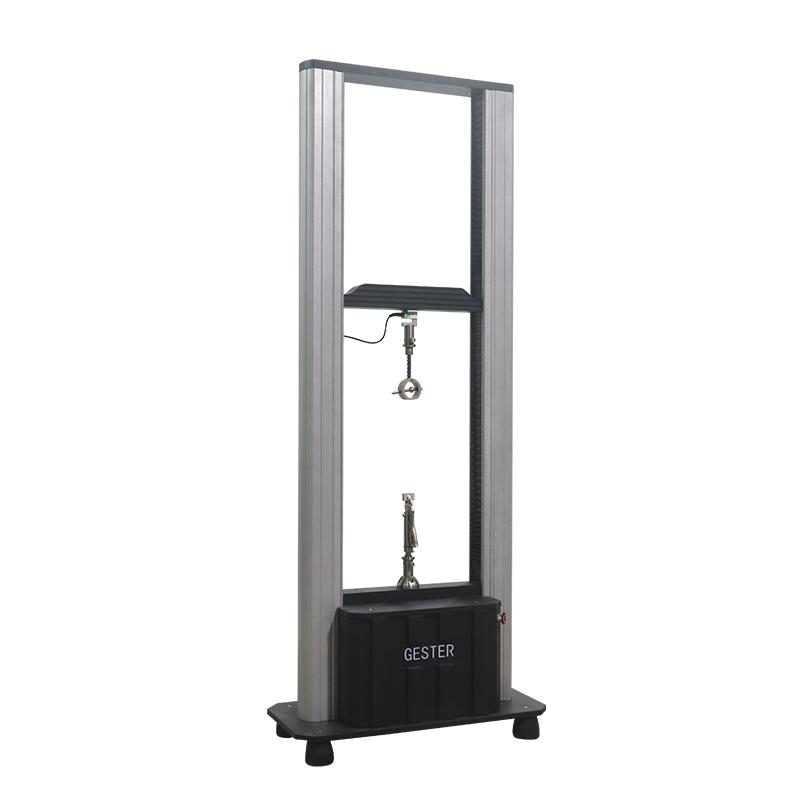

300KN Universal Tensile Testing Machine GT-UA01-30T

Product Introduction

Application:

This universal testing machine is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers.
Can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters.
This Tensile Test Machine can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.

Standards:

BS EN ISO 13934-1, 13934-2, 13937-2, 13937-3, 13937-4, 13935-1, 13935-2, EN1002-2

BS 3320, 4303, 1610, CNS 9471/9470, ASTM D 434, 558, 2261, 2731, 3936, 4533, 4964, 5034, 5035, 5735 ,

ASTM E4, ISO 5082, 9073.4, 10321, 13919, 7500-1, DIN5122, JIS B7721/B7733

Universal Tensile Testing Machine Key Specifications

Model	GT-UA01-30T
Max. Capacity	300KN
Display	Computer display mode
Force Resolution	1/100,000
Force Accuracy	≤+/-0.2%
Force Unit	Kgf, N, Ibf, g, ton, Mpa
Stroke Resolution	0.001mm
Test Speed	1-300mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Walking space	1500mm
Power	4500W
Dimensions(W x D x H)	1400×800×2500mm
Weight	1128kg
Power Supply	3phase AC 380V 50/60HZ

Accessories:

Standard accessories	1pc	English operation software
Standard accessories	1pc	Cable connect with PC
Optional accessories	Optional	Desk Top Computer
Optional accessories	Optional	Extensometer

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 300KN Universal Tensile Testing Machine GT-UA01-30T

Related Tags :

Categories

New Products

Related Products

Universal Testing Machine for Footwear (Dual Column) GT-K01

Universal Testing Machine (Dual Column) For Shoes is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes ,rubber, plastic, leather, metal, nylon line, fabric, paper

Single Column ASTM Tensile Test Machine GT-UA03

This Dynamometer test machine Single Column tensile strength tester Capacity: 50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN

Shoes Rubber Materials Universal Testing Machine GT-K01

Universal Testing Machine (Dual Column) For Shoes is designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes, rubber, plastic, leather, metal, nylon line, fabric, paper

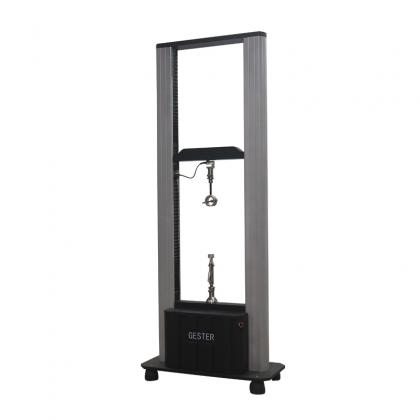

Dual Column Computerized UTM Universal Tensile Testing Machine GT-UA01
