AATCC Standards Electronic Crockmeter GT-D04

The GESTER GT-D04 Crockmeter Machine is a motorized, high-precision test instrument designed for high-throughput testing of textile color fastness to dry or wet rubbing. Powered by a motor-driven system with a preset electronic cycle counter (up to 9,999 cycles), crockmeter rubbing fastness tester GT-D04 eliminates human speed variability and automatically stops upon test completion. Designed for woven, knitted, and dyed fabrics, it guarantees strict compliance with ISO 105-X12, AATCC 8/165, and ASTM D6279.

Brand:
GESTER
Item NO.:
GT-D04A
Order(MOQ):
1
Payment:
T/T, L/C
Product Origin:
China
Shipping Port:
China Port
Lead Time：
Have in stock

Inquire now

Product Detail

Electronic Crockmeter GT-D04A | Textile Testing Equipment Manufacturers

Product Introduction of Crockmeter

Application of Electronic Crockmeter:

Electronic Crockmeter is used to determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.

Standards of Electronic Crockmeter:

ISO 105-X12, ISO 105-D02

AATCC 8, AATCC 165

BS 1006-D02, ASTM D6279, JIS L 0849 Type 1, JIS L 0862 Type 1

Dimensions of Crock Meter Tester

Feature of Crockmeter

AATCC Crockmeter Metal box, High-temperature baking coating, easy maintenance.
Electric motor, fitted with a pre-determined electronic counter for strokes up to 9999, experiment complete successfully, automatic stop.

Key Specifications of Crockmeter

Model	GT-D04A
Control mode	Electronic control
Application range	Fabric and other soft materials (No sample cutting required)
Rubbing head diameter	16mm
Vertical pressure	9N±0.2N
Rubbing head track	104±3mm
Test speed	60±2 rpm
Power supply	AC 220V 50/60HZ
Dimension ( L x W x H )	62 x 26 x 28cm
Weight	14kg

Accessories of Crockmeter

Standard accessories	1box	Rubbing cloth
	2pc	Sand paper
	2pc	Rings
	1pc	Power line
Optional accessories	Optional	Gray Scale for staining

Need to test harder materials or specialized cut samples?

Explore our Crockmeter GT-D04B designed for fabric soft and hard materials (Sample cutting required). Contact us!

Application Industry of Crockmeter

All kinds of textile materials can be tested on the AATCC Electronic Crockmeter | Crocking test machine

AATCC Electronic Crockmeter

colour fastness tester

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : AATCC Standards Electronic Crockmeter GT-D04

Related Tags :

Categories

New Products

Related Products

Printing Ink Durability Tester GT-D35

Printing Ink Durability Tester is mainly used in testing the abrasive resistance of print ink layer, presensitized plate and related surface coating.

Color Assessment Cabinet for Fabric (textile light box) GT-D08

Color Matching Cabinet for Fabric GT-D08 Colors appear differently under different lighting sources.

Manual Rotary Vertical Crockmeter GT-D45A

The Manual Rotary Vertical Crockmeter is used to determine the amount of color transferred from the surface of colored textile materials to other surfaces by rubbing.

Crockmeter Rubbing Fastness Tester GT-D05

Premier Textile Testing Equipment Manufacturer (Nearly 30 Years Expertise) The GESTER GT-D05 Manual Crockmeter is designed to determine the resistance of colored textiles, leather, and woven materials to wet and dry rubbing. Built with a solid steel chassis and a high-temperature baking coating, GT-D05 features a pinned acrylic sample holder for rapid mounting and repeatable results. Fully compliant with major international standards including ISO 105, AATCC 8, JIS L 0849, BS 1006.

Perspiration Tester for Textile Testing GT-D09

The GESTER GT-D09 Perspiration Tester (Perspirometer) is a standardized laboratory test apparatus engineered to evaluate the color fastness of dyed, printed, and colored textiles against human sweat, distilled water, seawater, and saliva exposure. Constructed with high-grade 316L stainless steel, the GT-D09 resists chemical corrosion caused by acidic and alkaline artificial perspiration solutions. It features dual compliance with ISO and AATCC standards, accommodates up to 42 test specimens per run, and utilizes a spring-loaded clamping frame to maintain consistent pressure across all specimen plates during oven incubation.

Drying Oven for Fabric Testing GT-D10

Drying Oven for Fabric Testing GT-D10 design for all kinds of textile’s perspiration resistance color fastness drying test, matching GT-D09 Perspiration Tester using.

Electronic Rotary Vertical Crockmeter GT-D45B

Rotary Vertical Crockmeter, to determine the colour fastness of textiles to dry or wet rubbing particularly for printer fabrics.

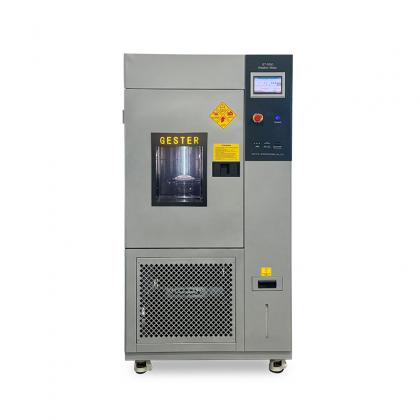

Water-Cooled Light Weather Fastness Tester GT-3000
