Automatic Luggage Stair Tester GT-LC42B

luggage testing equipment Manufacturers Suppliers
  • Brand:

    GESTER
  • Item NO.:

    GT-LC42B
  • Order(MOQ):

    1
  • Product Detail

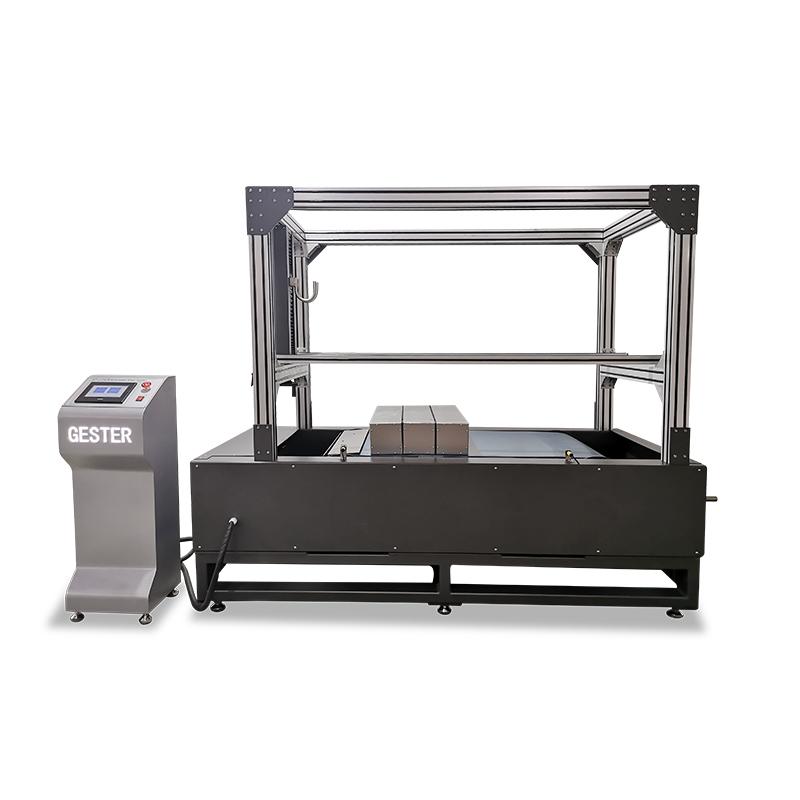

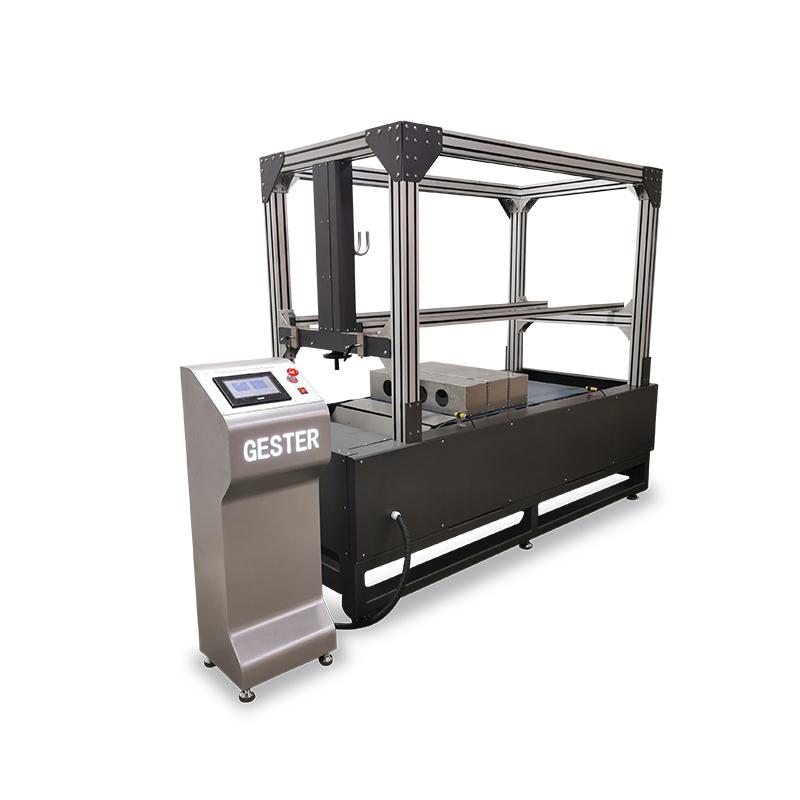

Automatic Luggage Stair Tester GT-LC42B


Application

a. To simulate a severe handling environment.

b. Luggage Stair Testing Machine: to evaluate the structural integrity of the finished product, its subassemblies and its components, especially the parts linked to the wheel assembly, wheel housings, kick plates, wheel handle, etc.


Principle:

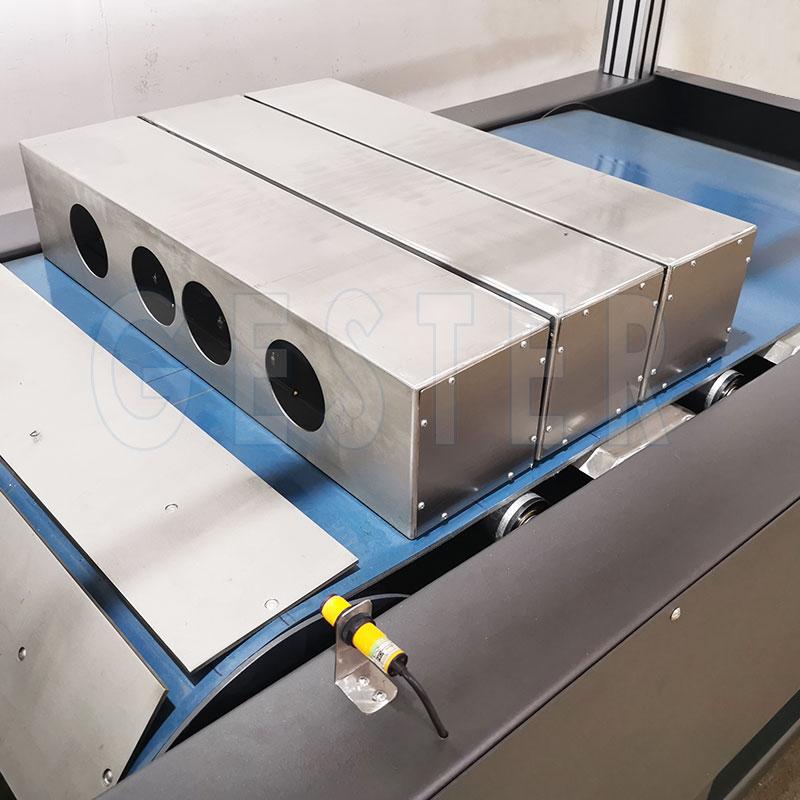

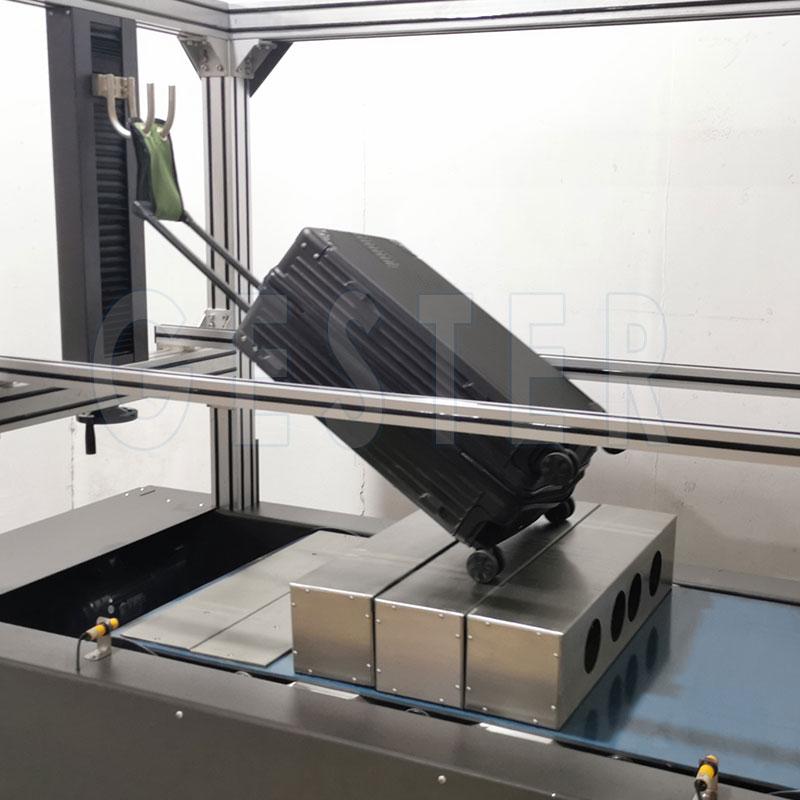

The simulation stair is driven by the pulley to roll, and the sample luggage with the weight is repeatedly lifted and dropped on the simulation stair. Check the damage degree of each part of the bag after the set number of times.


Luggage Stairs Simulation Testing Machine Key Specifications


Model

GT-LC42B

Control Mode

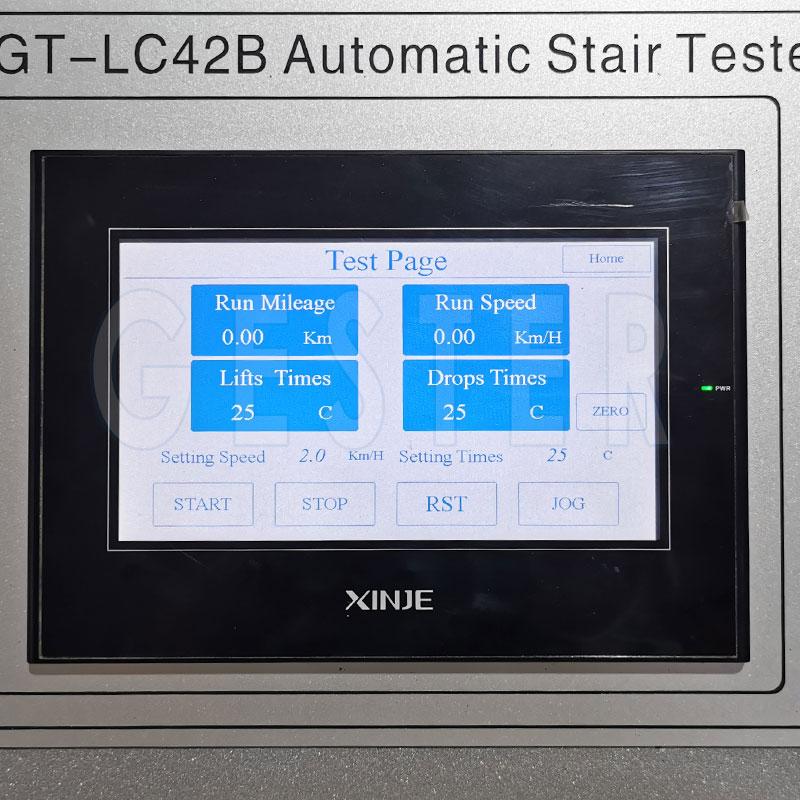

PLC+7inch touch screen

Belt Perimeter

3390mm

Belt Width

700mm

Test Speed

0-5KM/H (Can be set)

Height of Stair

150mm

Power

1∮,AC220V,50Hz

Weight

About 900kg

Dimensions

2300x1025x1820mm (L*W*H)

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

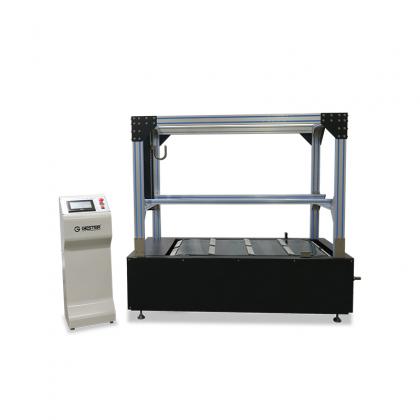

Luggage Simulate Transport Mileage Life Testing Machine
Luggage Simulate Transport Mileage Life Testing Machine GT-LC01
Luggage Testing Equipment Manufacturers Suppliers
Read More

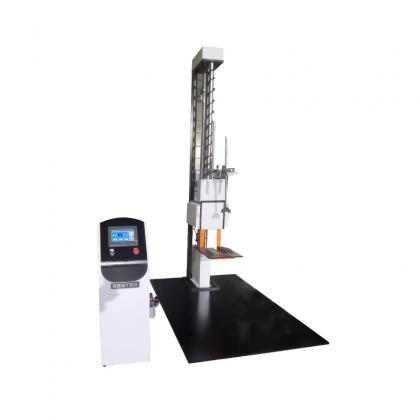

Falling Tester
Single Wing Falling Tester GT-LC05-1
This Single Wing Falling Tester GT-LC05-1 is designed to test the damage of product packaging and to evaluate the impact resistance during transport.
Read More
Double Wings Drop & Falling Tester
Double Wings Drop & Falling Tester GT-LC05-2
Double Wings Drop & Falling Tester 20 years R & D sales experience, In stock, fast delivery.
Read More
Luggage Vibration Impact Testing Machine
Luggage Vibration Impact Testing Machine GT-LC02
Luggage and Suitcase Testing Equipment Manufacturers Suppliers
Read More
Three Stations Chair Seating and Back Testing Machine
Three Stations Chair Seating and Back Testing Machine GT-LB04C
Three Stations Chair Seating and Back Testing Machine is equipped with three stations, it can be used to test the three samples simultaneously.
Read More
disinfection robot
Atomizing Disinfection Robot GT-R800
Atomizing Disinfection Robot GT-R800 Product Introduction Application: The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect. It can be widely used in hospitals, airports, office buildings, shopping malls, schools, factories and other public places.   Feature Support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid. The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2. Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process. Two disinfection modes: timed disinfection and immediate disinfection. With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area. Support automatic return to charge, human assistance isn’t required. When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically. Key Specification   Model GT-R800 External Size(mm) φ500*1335 Atomization Efficiency 2L~3L/H(adjustable) Disinfectant Capacity 16L Spray Diameter 5-6m Disinfection Medium Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc. Spray Method Four-direction spray, large opening spray(optional) Moving Way Autonomous path planning and automatic navigation Moving Speed 0~0.6m/s Power Supply AC220±10%V 50Hz Consumption 150W Drive Method Differential drive Ability to Cross Obstacles ±10mm Gradeability ≤8° Driving Channel Width ≥700mm Noise ≤50dB Operating Time 5~6h Battery Lithium battery 28AH 24V Charging Time 3~4h Safety System Lidar obstacle avoidance, power-off protection of disinfectant shortage Package Size Main Body 415*415*633mm Chassis 614*614*750mm Gross Weight Main Body 8.2kg Chassis 70.4kg
Read More

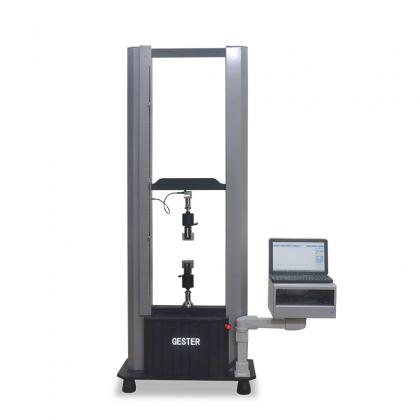

Universal Testing Machine
