Luggage Simulate Transport Mileage Life Testing Machine GT-LC01

Luggage Testing Equipment Manufacturers Suppliers

Brand:
GESTER
Item NO.:
GT-LC01
Order(MOQ):
1
Payment:
100% T/T in advance
Shipping Port:
Xiamen Port
Lead Time：
7-30 days

Inquire now

Product Detail

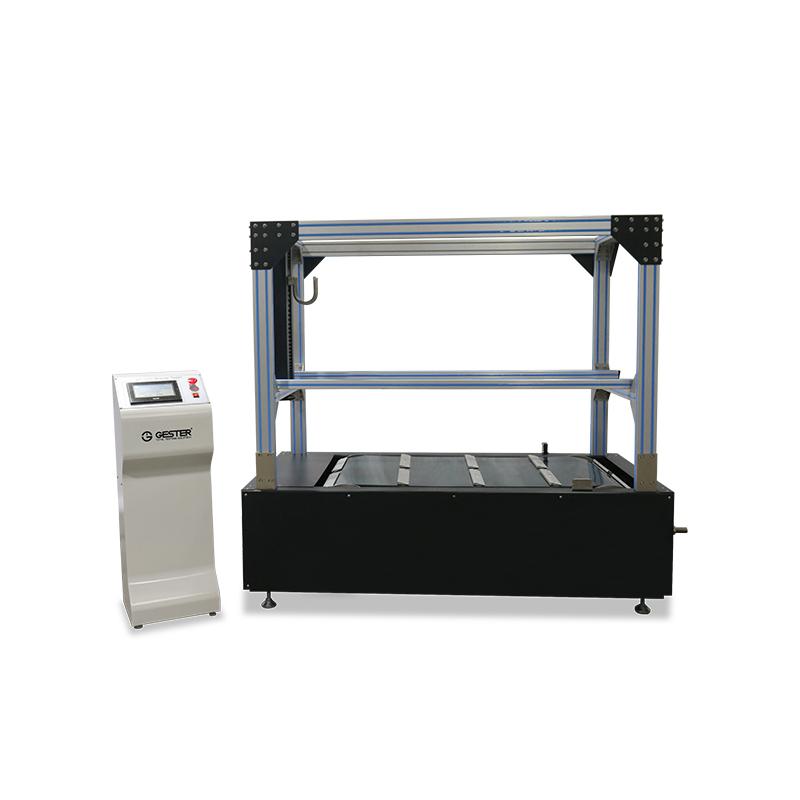

Luggage Simulate Transport Mileage Life Testing Machine

Product Introduction

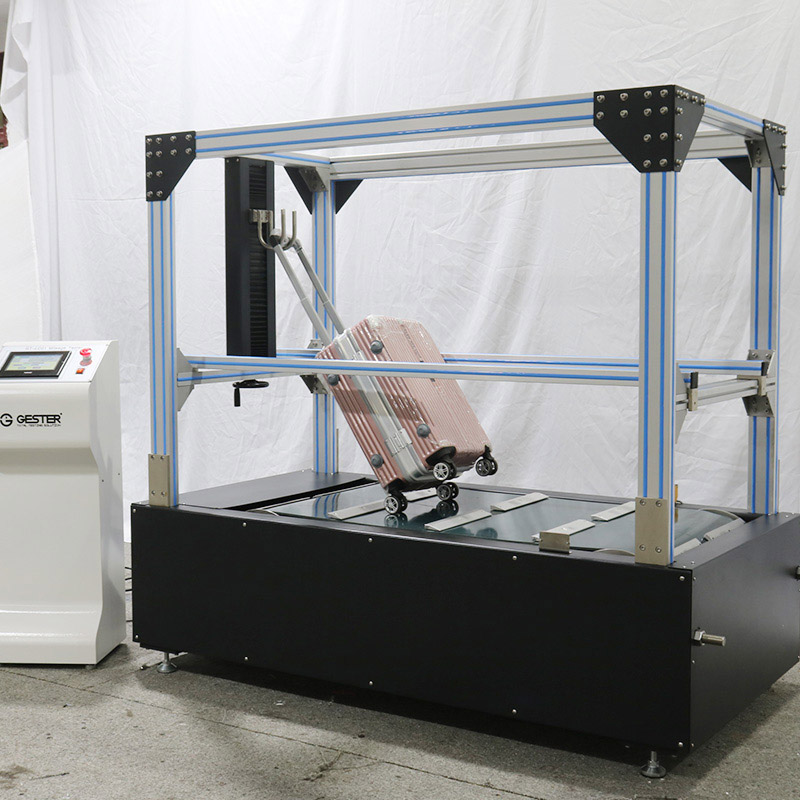

Luggage Simulate Transport Mileage Life Testing Machine GT-LC01: is specifically designed for conducting rigorous road tests on luggage with wheels, including traveling bags, wheel axles, and wheel structures. This luggage tester allows for evaluating the abrasion resistance of wheel materials, as well as detecting any deformations or damages to the suitcase structure.

With its adherence to QB/T2920--2018 standards, this testing equipment provides manufacturers with valuable insights to enhance their products and meet the highest quality expectations the market.

Key Specifications

Model	GT-LC01
Control System	PLC+ Touch Screen (Man-machine interface control system with easy operation and power-off saving function)
Counting	0-999,999 times, automatically stop the machine when reach the times. The cycle times could be set in the Touch screen.
Mileage	Mileage could be set, automatically stop the machine when reach the mileage.
Conveyor belt	Length is ( 3300±5) mm, width is 700mm. There are friction plates in the surface, arranged in 2 lines on the direction of movement averagely.
Friction plate	Made by aluminium, hardness HB(40±5), length(300±2).
Controlling device	Speed, mileage, testing time are adjustable, and it has saving function. All controlling programs is controlled by PLC, could be used to set the mileage, testing time and numbers of cycle.
Belt	Wear-resisting belt, which has long working time
Power supply	3phases, 380V,50/60HZ
Weight	800kg
