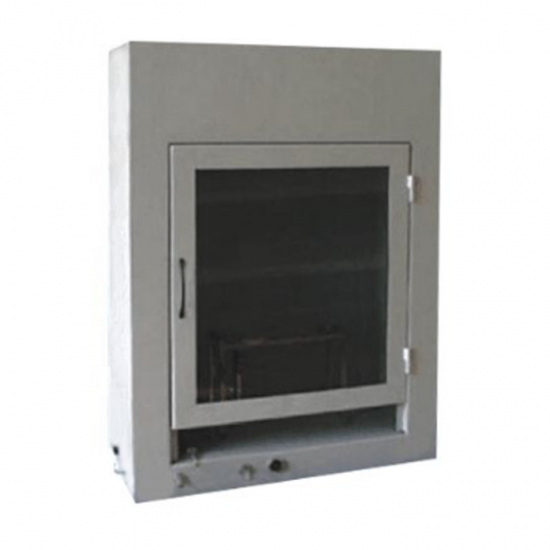

Foam Material Horizontal Combustion Testing Equipment GT-LE01
Foam Material Horizontal Combustion Testing Equipment GT-LE01
  • Brand:

    GESTER
  • Item No.:

    GT-LE01
  • Certificate:

    ISO 9001, UKAS, CE
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    About 30 days
  • Payment:

    TT or L/C
contact now

Foam Material Horizontal Combustion Testing Equipment GT-LE01


Product Introduction

Application:

The Combustion Testing Equipment GT-LE01 is suitable for laboratory evaluation under the condition of less than 250 kg/M3of foam under small sample in the small flame combustion performance.


Feature

  • Use the cold plate which is usually used to automotive manufacturing to CNC machine center molding, beautiful appearance, high-grade.
  • Outdoor grade powder paint technology, high quality, long-term use such as new, no discoloration.
  • Digital control components, easy to use, safe and reliable.

  • Dedicated burner which meets the standard , flame height adjustment convenient and stable.


Key Specifications



Model

GT-LE01A

GT-LE01B

Burning pipe diameter

9.5±0.5mm

Burner wing top

Opening length: 48±1mm,

Width: 1.3±0.05mm

Opening length: 48±1mm,

Width: 3±0.2mm

Burning nets

215×75mm. The ends are folded at right angles. Height  13mm

Flame height adjustment

10-60mm

Flame angle

Ignition time range

0-99.99s

Residual combustion time range

0-99.99s

Time accuracy

0.01s

Inner box size

600×300×760mm

Dimensions

650×350×1000mm

Weight

50kg

Power

1∮, AC  220V  50Hz

Standards

GB/T8332,ISO9772

ISO 3582

inquiry now

    We will give you a quotation within 24 hours.

      Foam Material Horizontal Combustion Testing Equipment GT-LE01
