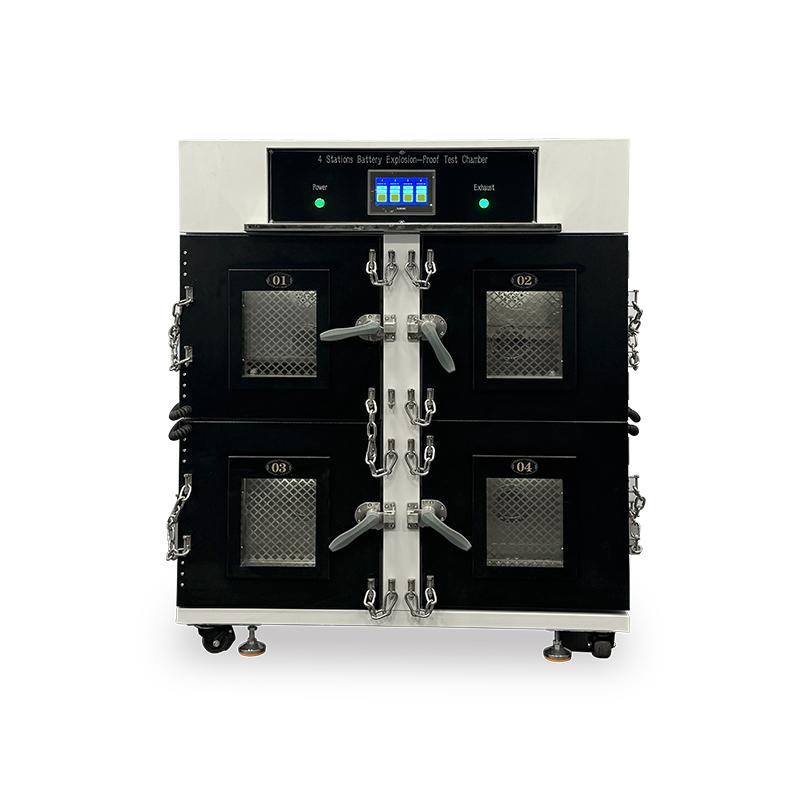

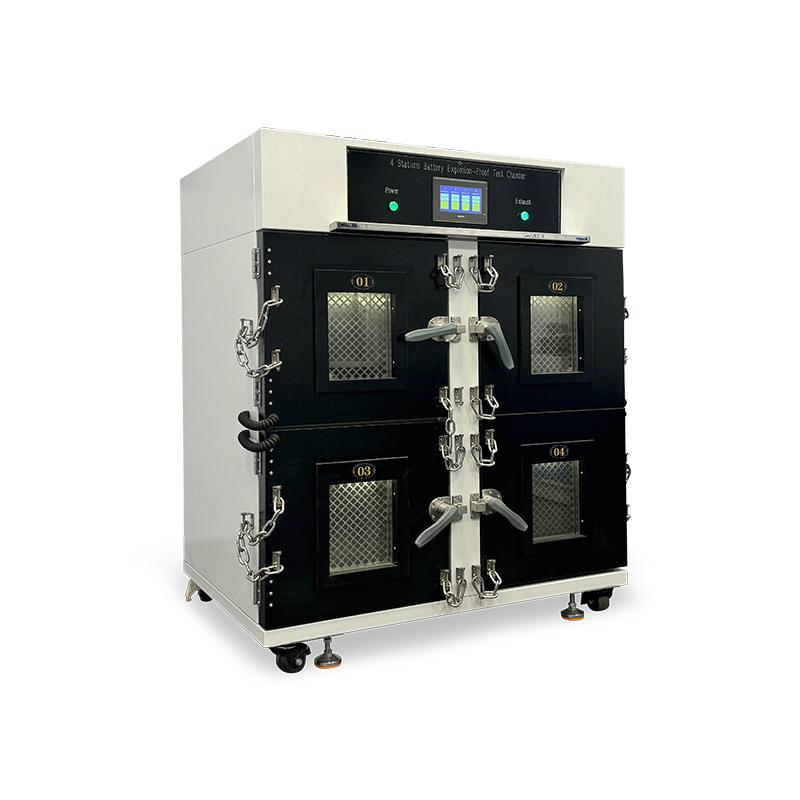

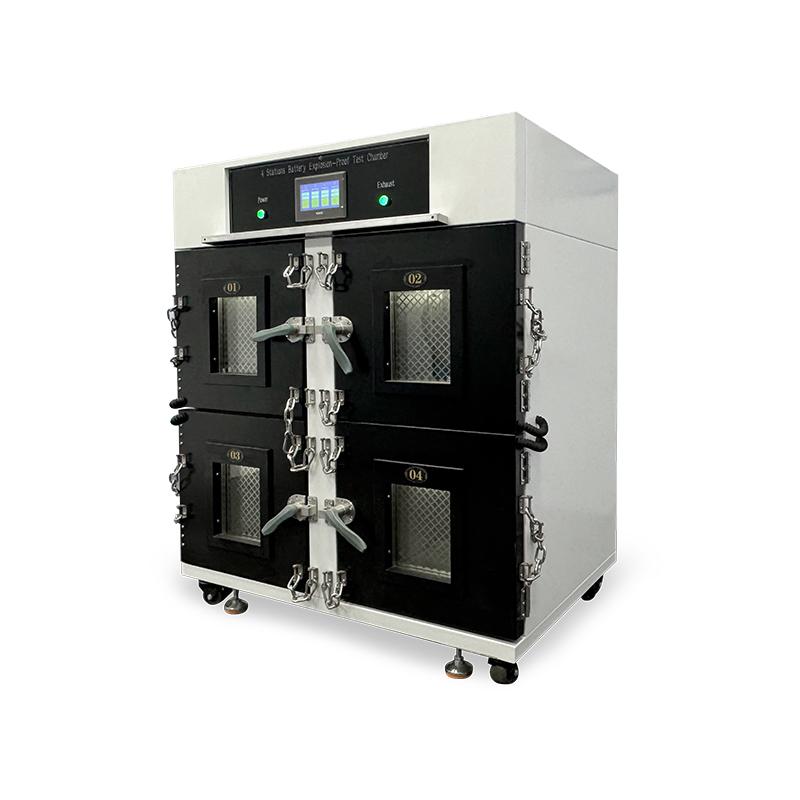

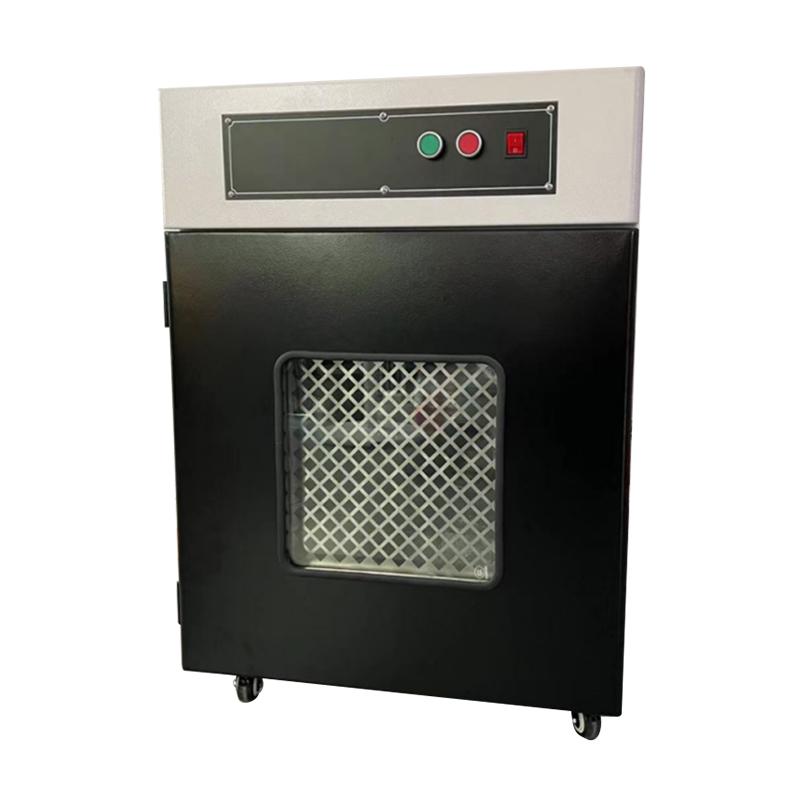

Model

GT-I08

Inner size

500×500×500mm (W×D×H)

External size

W650×D700×H1550 mm (subject to design)

Material

Outward box: 1.5mm thick A3 steel plate with baking finish

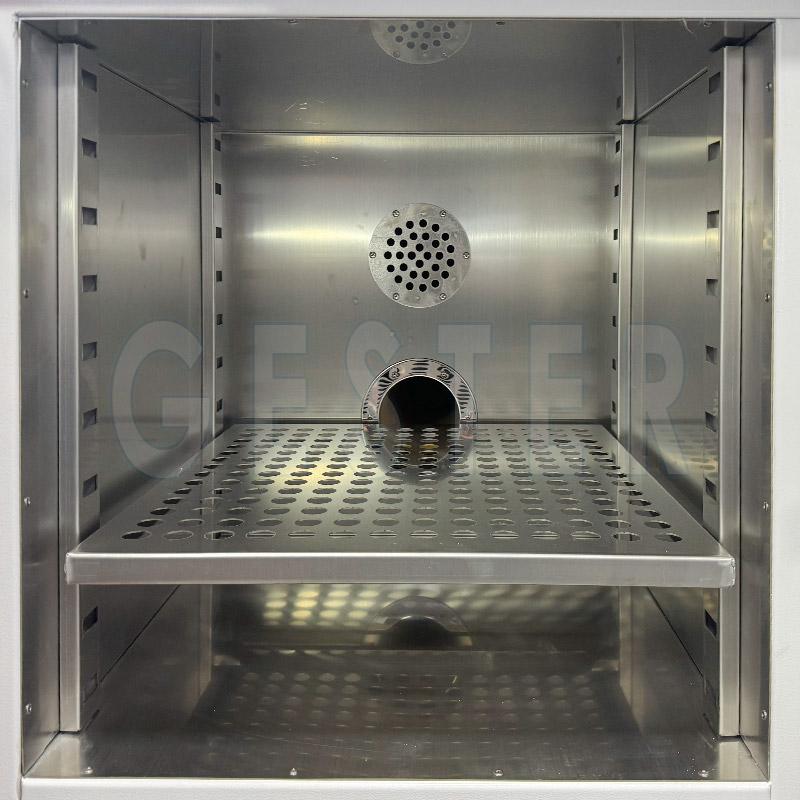

Interior box: SUS#201 stainless steel, 1.2mm thick

Interlayer between chambers

80mm thermal insulation layer between inner and outer chambers

Inner chamber bottom

An insulating Teflon plate is equipped in the test area, featuring effective resists fire , corrosion resistance, easy cleaning and prevention of external short circuit

Control panel safety design

The control panel is built-in, ensuring that the touchscreen and buttons cannot be accidentally pressed or bumped by external objects or the user's body, making it safer

Wire lead hole

1 reserved φ50mm test hole on one side of the equipment for relevant test wires to pass through

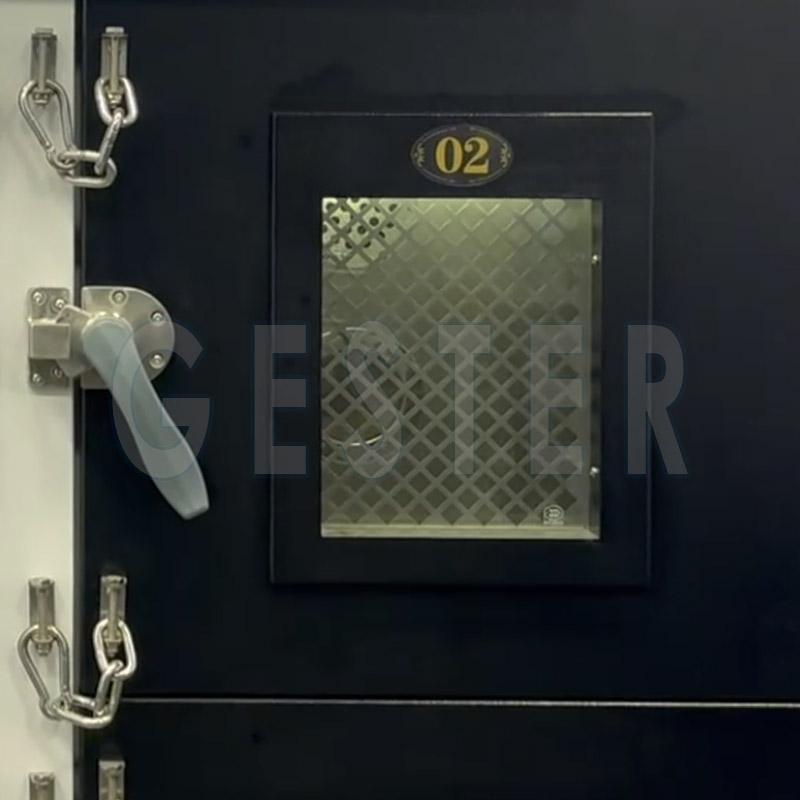

Chamber door

Fixed with high-strength hinges; equipped with at least 2 sets of explosion-proof locks for fastening

Explosion-proof pressure relief device

With exhaust and explosion-proof pressure relief function; a magnetically adsorbed pressure relief door (200×200mm) is installed at the rear of the protective chamber, which automatically opens under strong air flow impact and closes automatically to reduce explosion impact force

Smoke extraction

Induced draft fan: High-temperature resistant; rear smoke outlet diameter: 100 mm.

Explosion-proof lighting design

High-brightness explosion-proof LED light installed inside the door, illuminating the entire test space

Chamber bottom

4 universal casters for easy moving, stable parking and fixing

Equipment weight

Approx. 80kg

Power supply

AC 220V 50HZ

Power

50W
