Lithium battery internal resistance tester GT-I19

Lithium battery internal resistance tester 3.5inch, TFT-LCD display, Professional Battery Testing Equipment Manufacturer.

Brand:
GESTER
Item NO.:
GT-I19
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

Lithium battery internal resistance tester GT-I19

Product Introduction

Application:

This Battery Testing Machine is a high-precision, wide-range, battery internal resistance tester controlled by a high-performance microprocessor. Capable of checking internal resistance (IR) and battery voltage (OCV) simultaneously at high speed. The product has high resolution, good stability, short test cycle, exquisite appearance, powerful functions, rich interfaces, and is suitable for product development and automated production lines.

Feature

The Battery Testing Equipment minimum resolution of internal resistance is 0.1uΩ, and the minimum resolution of voltage is 10uV.
The Battery Testing Equipment minimum test cycle is only 10mS.
Various interfaces are standard for automated test equipment.
Strong anti-interference ability.
AC four-terminal method, high-precision measurement of low resistance.

Battery Internal Resistance Tester Key Specifications

Model		GT-I19A	GT-I19B	GT-I19C
Display		3.5inch, TFT-LCD display
Test item		AC resistance, DC voltage
Internal resistance	Accuracy	0.30%
	Test range	0.1μΩ ~ 3kΩ
Voltage	Accuracy	0.01%
	Test range	10μV~60V	10μV~150V	10μV~300V
Signal source		Measuring current frequency: 1kHz±0.2Hz; Open circuit voltage: <5V; Test current: <100mA AC resistance, DC voltage
Measure range		3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3kΩ; Seven full-scale automatic or manual test mode
Test speed		100 times/sec, 50 times/sec, 20 times/sec, 3 times/sec
Calibration		Short circuit clear in full scale
Comparators		30 groups of records, 4 bins sorting, bin counting
Other function		Data export, store in U disk
Trigger mode		Internal trigger, manual trigger, external trigger, bus trigger
Connection pot		Handler interface, RS-232/485 interface, Ethernet interface, U disk interface
Power supply		1∮, AC 100V~256V, 50Hz/60Hz, 15VA
Machine size		325 mm215 mm96.5 mm (WDH)
Weight		3kg
Accessories		CHT9363A, CHT9800, PB36 Connector, Power line

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Lithium battery internal resistance tester GT-I19

Related Tags :

Categories

New Products

Related Products

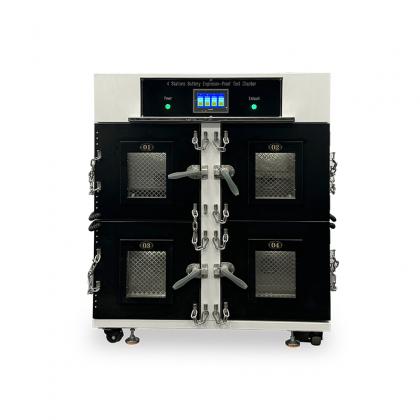

Battery Overcharge and Overdischarge Explosion-Proof Test Chamber GT-I08
