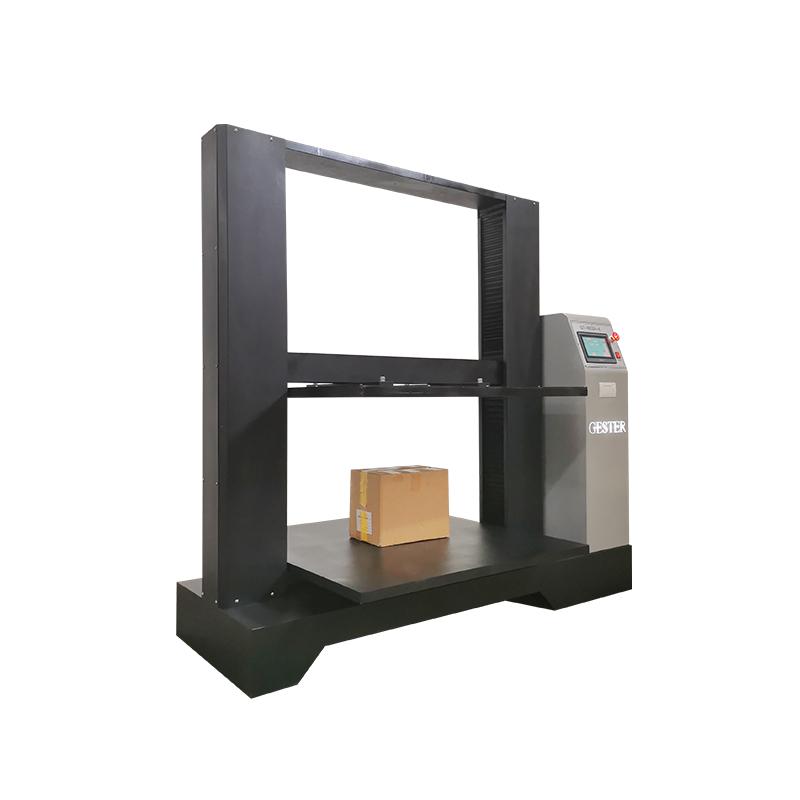

Carton Compression Tester (Computer+LCD Control) GT-N02C
Box Compression Test Machine with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.
Carton Compression Test is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.
box compression test Standards:
ISO2872, ISO2874, ASTM D642
1. Strength test
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
2. Constant Value Test
There are two parameters which are to be set in the constant value test: load force value and
deformation value. The user can set one or both of them according to the practical requirement. the measure is complete when any parameter reaches the set value.
3. Stacking Test
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).
when the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.
The overall system is in good parallelism, stationarity and high return speed.
|
Model |
GT-N02C |
|||||
|
GT-N02C-1 |
GT-N02C-2 |
GT-N02C-3 |
GT-N02C-4 |
GT-N02C-5 |
GT-N02C-n |
|
|
Plate Size |
500 x 500 |
600 x 600 |
800 x 800 |
1000 x 1000 |
1200 x 1200 |
Customized |
|
MAX stroke |
500 |
600 |
800 |
1000 |
1200 |
Customized |
|
Measuring range |
0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Option) |
|||||
|
Indication error |
±0.5% |
|||||
|
Test Speed |
0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips |
|||||
|
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
|||||
|
Display |
Computer display mode |
|||||
|
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
|||||
|
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
|||||
|
Power |
AC 220V 5A 50Hz |
|||||
