Brand:
GESTERItem NO.:
GT-LC05-2Order(MOQ):
1Payment:
100% T/T in advanceShipping Port:
Xiamen PortLead Time：
7-30 daysProduct Detail

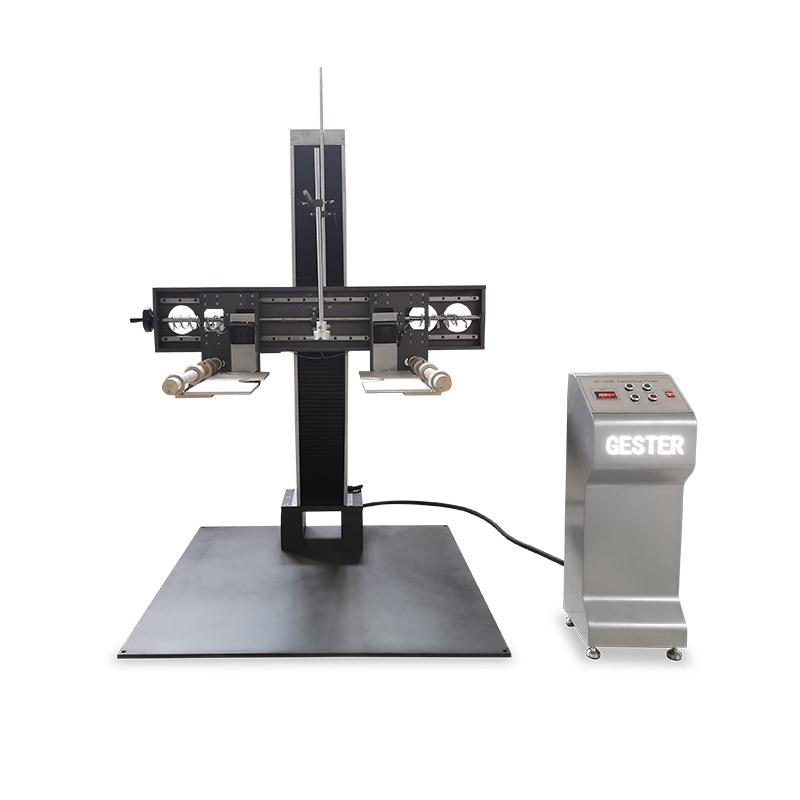

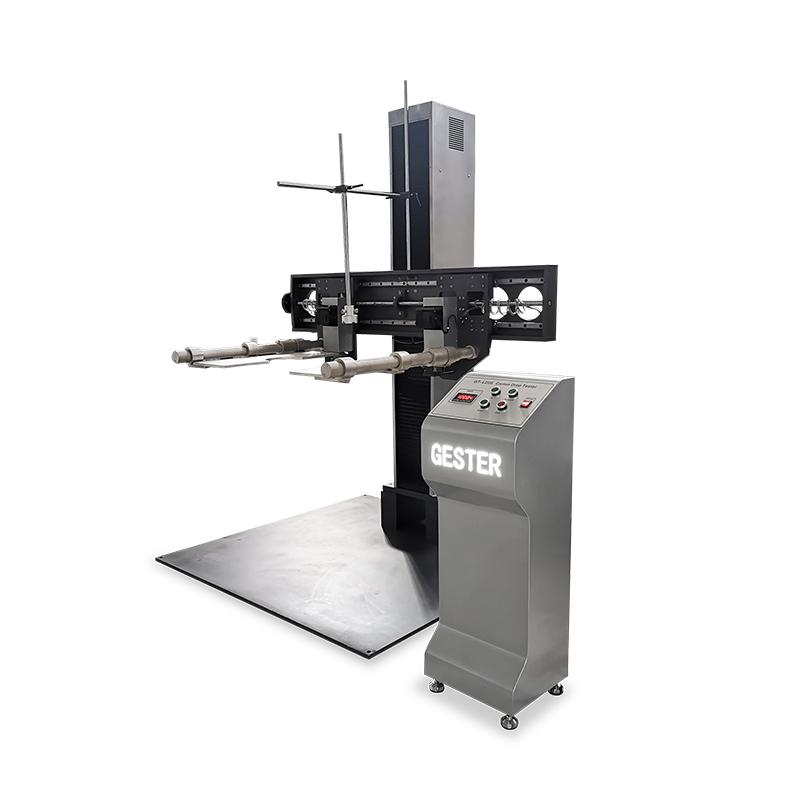

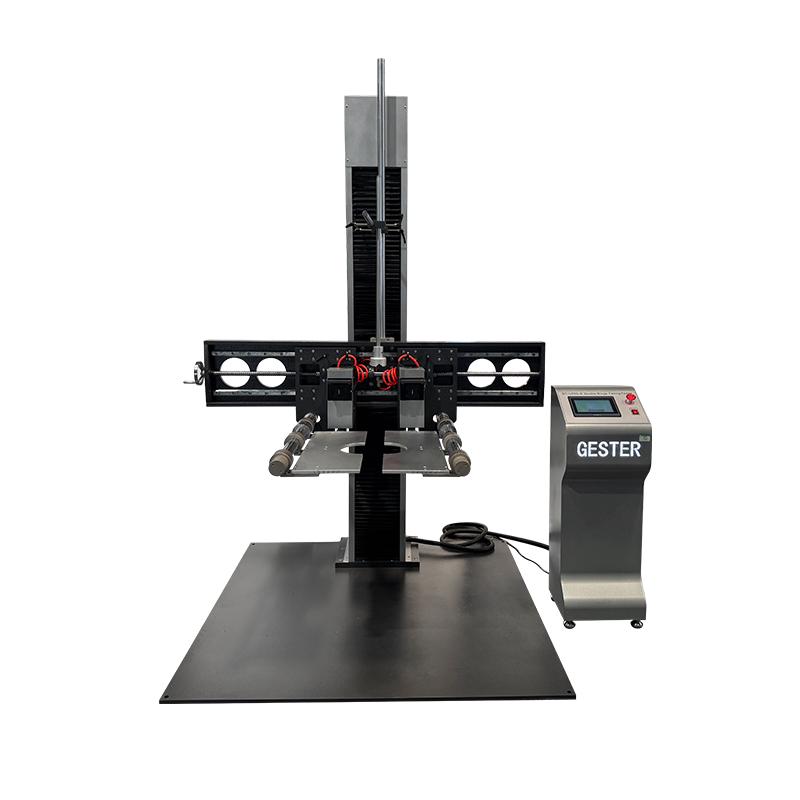

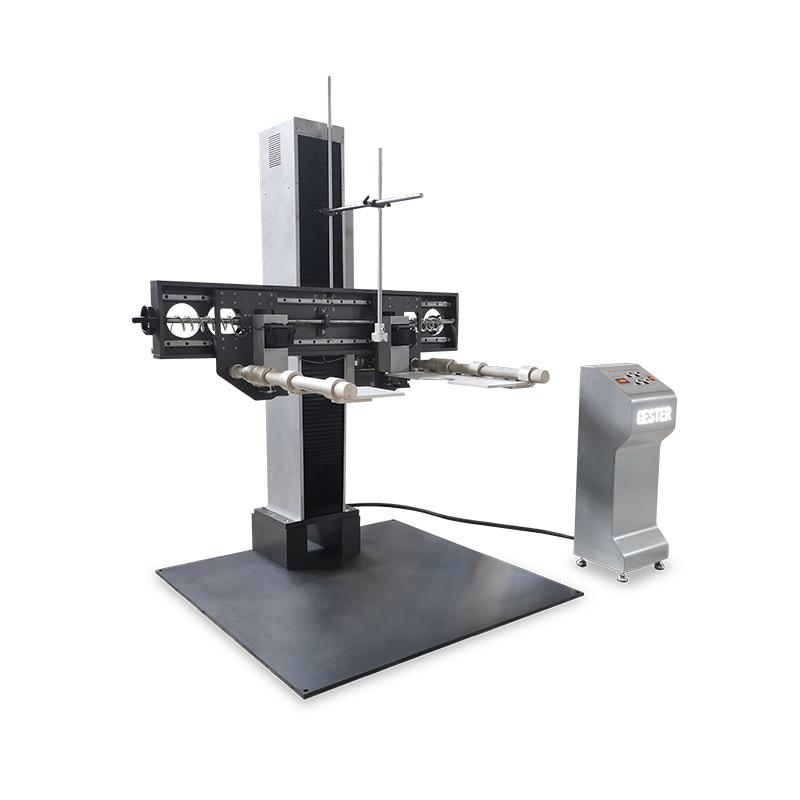

GT-LC05-2 Double Wings Drop & Falling Tester
Application:
GT-LC05-2 Double Wings Drop & Falling Tester In the process of moving or transporting the product, there may be a drop in the product and damage to the internal product. The damage can be prevented in advance, that is machine is expected to be tested for the best possible solution so that it can be minimized during transport loss.
Drop Tester Machine Standards:
ISO 2248, JIS Z0202, GB/T4857.5, ISTA
This series of drop test machine, using double column to the spring buffer, height scale instructions, stable and reliable, can be achieved edge, surface, angle drop.
|
Model |
GT-LC05-2 |
|

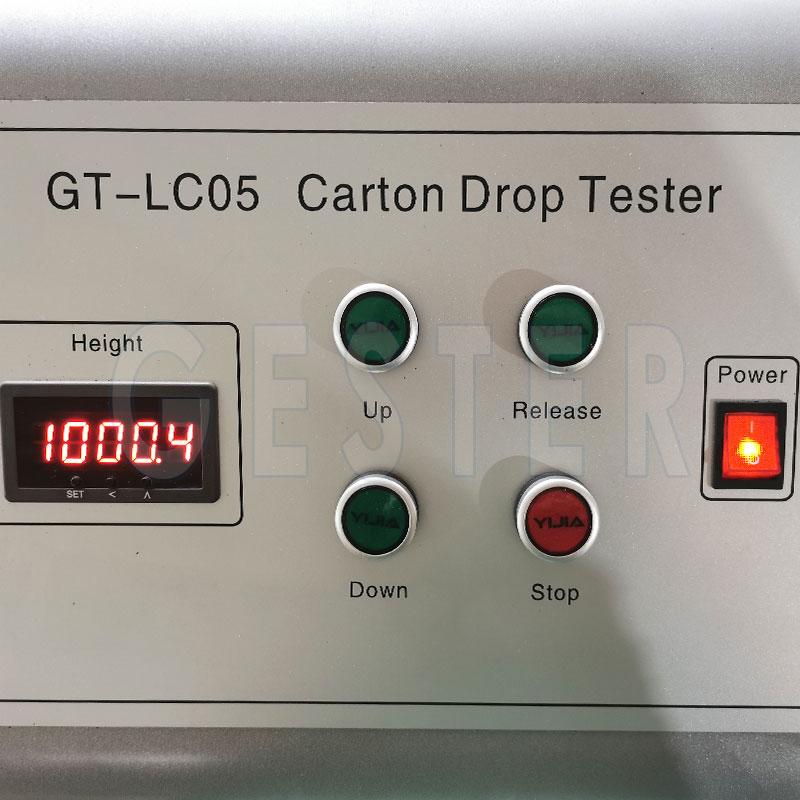

Display mode |
Digital display |
|
Drop height |
300~1500mm |
|
Dimension of drop panel |
(W×L)1700×1500mm |
|
Max weight of sample |
100kg |
|
Max dimension of sample |
(L×W×H)1000×1000×1000mm |
|
Transfer method |
Electric drive |
|

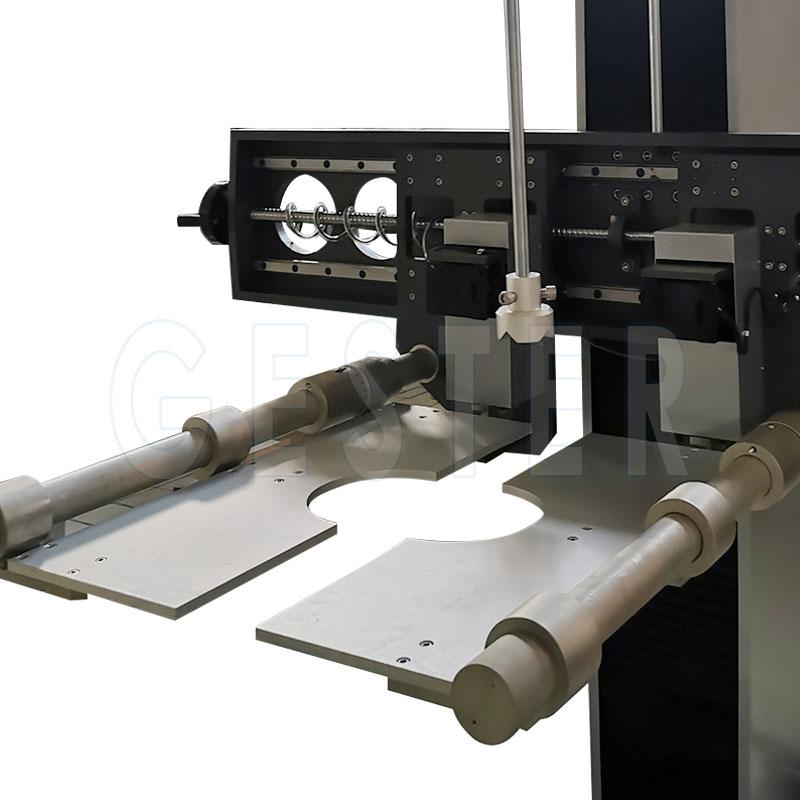

Single-wing area |
(W×L)250×700mm |
|
Power |
1∮,AC220V,50Hz, 1/2P |
|
Weight of machine |
About 1021kg |
|
Dimension |
Main body: (L×W*×H)1770×1510×2831 mm |
|
Structural material part |
|
|
Base plate |
1500×1500x15mm Iron spray |
|
Test table |
12mmHard aluminum plate |
|
Main pole |
45＃Solid steel, surface heat treatment |
|
Main force pole |
60＃Solid screw with steel cups up and down |
|
Fixture |
45＃Solid steel, surface heat treatment. Two ends with six products and angle fixed angle code |
|
Control part |
|
|
Main force |
Import 1 / 2HP motor with 20: 1 reducer 1 set |
|
Controller |
Imported Shihlin magnetic cable system and overload protection 2 sets |
|
General system: |
15A Fuji switch 1 |
|
Travel switch |
Japan imported limit switch 2 sets |
|
Control switch |
Diameter of 25mm button 5 sets |
|
Protection |
motor fault protection, high and low limit protection, emergency stop protection |
Q1: What is the main advantage of a Double Wing Drop Tester over a Single Wing model?
A: The double-wing design provides a larger, more stable supporting platform, making it ideal for oversized or heavy packages (like washing machines or large TV cartons). It ensures the specimen remains perfectly horizontal before release, preventing unwanted rotation during the fall.
Q2: Can this drop tester meet the specific height requirements of ISTA 1A/2A?
A: Yes. The GT-LC05 series supports an adjustable height range of 300–1500 mm, covering all common drop height levels—determined by weight—specified in the ISTA 1A (≤68 kg) and 2A standards. With a height tolerance of just ±10 mm, it fully complies with laboratory-grade standards.
Q3: How is synchronization maintained during the drop?
A: The GT-LC05-2 utilizes a high-speed electromagnetic control system coupled with a precision pneumatic/electric reset. This allows both wings to retract simultaneously within milliseconds, eliminating any rotational force on the specimen during its descent.
Q4: Is the equipment easy to operate for heavy-duty testing?
A: Yes. The machine includes a motor-driven lift and a digital controller for precise height adjustment. The automatic reset function and dual-column stability mean operators can perform repetitive tests on heavy items with minimal physical effort and maximum safety.
