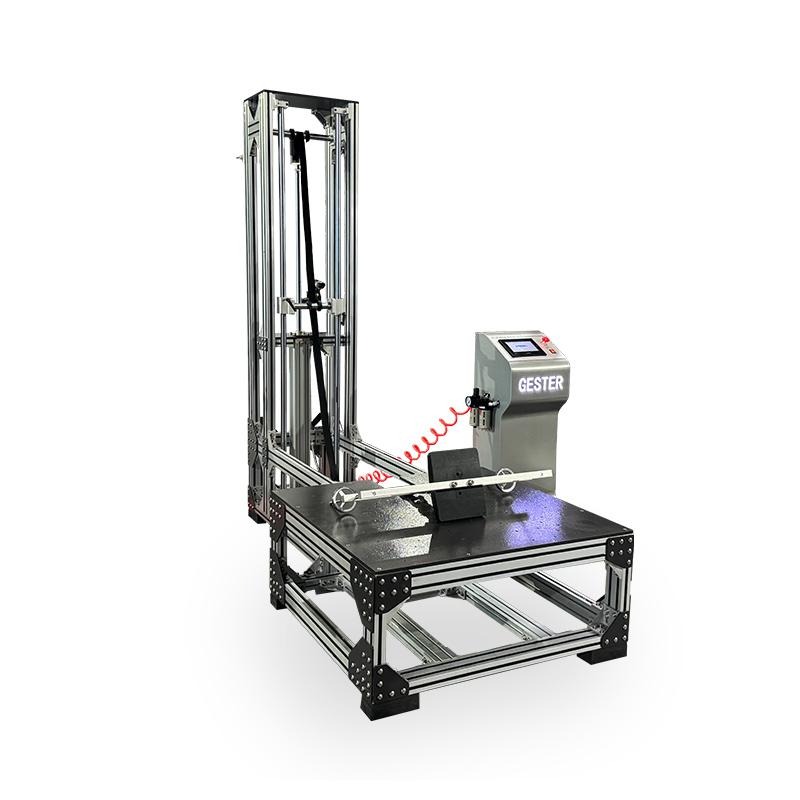

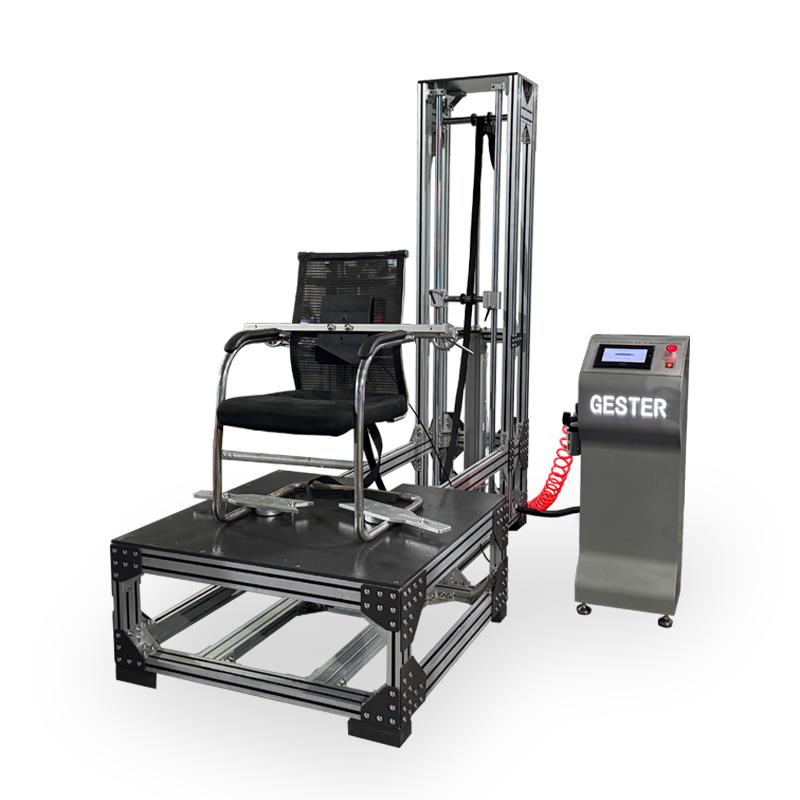

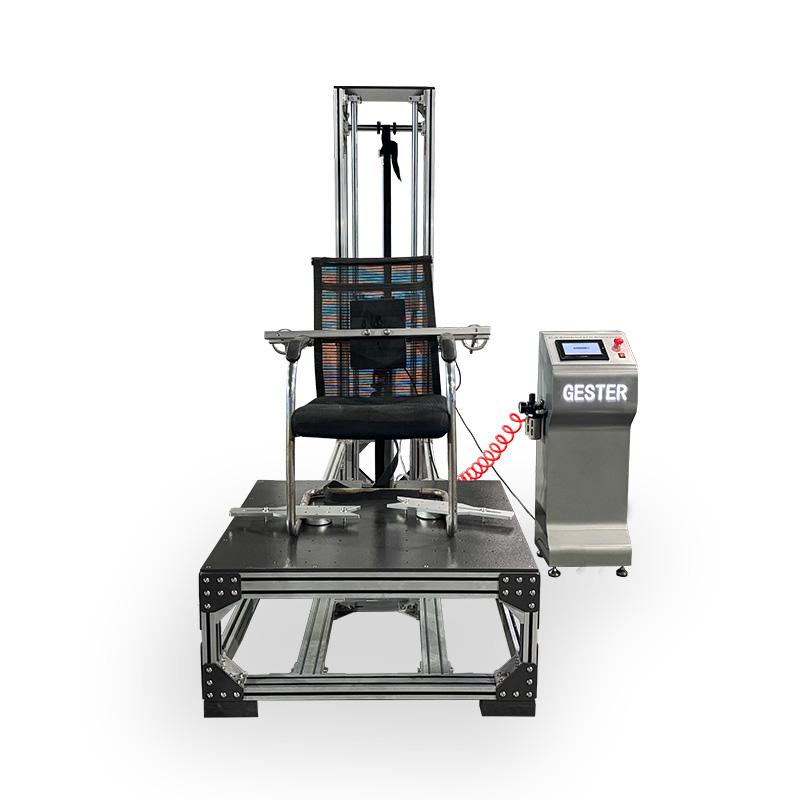

Chair Backrest and Tilt Mechanism Durability Tester GT-LB13B

Product Introduction

The latest design of the machine has two test functions:

First test is to evaluate the ability of the chairs to withstand fatigue stresses and wear caused by rearward force on the backrest of the chair.
Second test is to evaluate the ability of the tilt mechanism to withstand the fatigue stresses and wear caused by repeated tilting.

Standards:

ANSI/BIFMX5.1 Part 10 ,15,16

Key Specifications

Model	GT-LB13B
Loading method	Pull

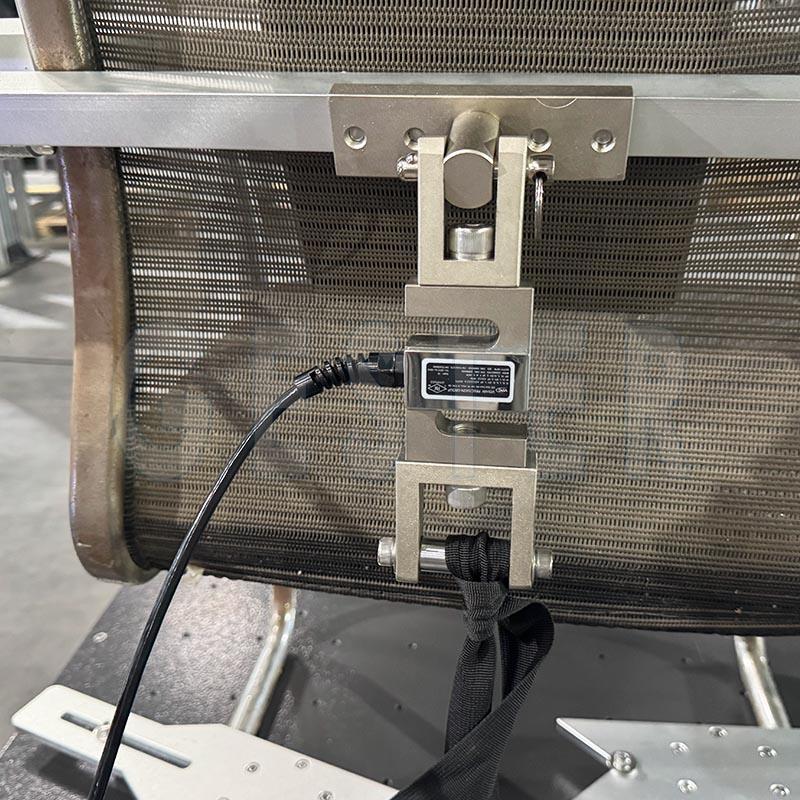

Load cell capacity	2000N
Seat load weights	109kg(240Lb) or 122kg(270Lb)（weights Accumulation）
Back loading force value	334N(75Lb)/445N(100Lb)/ 667N(150Lb)/1001N(225Lb)/Can be set
Back loading position	Backrest height>452mm	406mm
	Backrest height<452mm	Load on the top of backrest
Back loading force direction	Angle	90°±10° ( Adjustable)
Test speed	10~30 times/min
Test Times	0~999 999 times, settable
Force adjustment method	Servo valve + Force sensor
Control	PLC touch screen control
Dimensions(WDH)	150100170 cm
Gas source	Stable gas supply(> 6kgf/cm^2)
Power	1∮,AC220V, 50/60 HZ 3A

Accessories

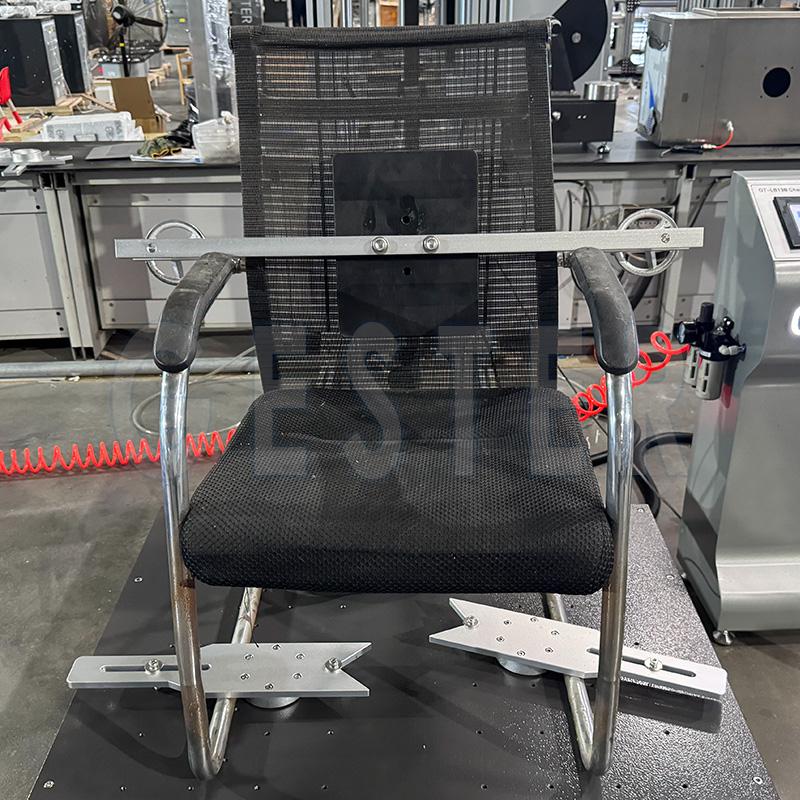

Standards accessories	1pc	Stationary fixture
	1pc	Stops
	1pc	GT-LB01-10B BIFMA Cumulative Weight
Optional accessories	Optional	GT-MA12B air compressor

Applications Industry

All kinds of chair products can be tested on the Chair Backrest and Tilt Mechanism Durability Testing Machine
