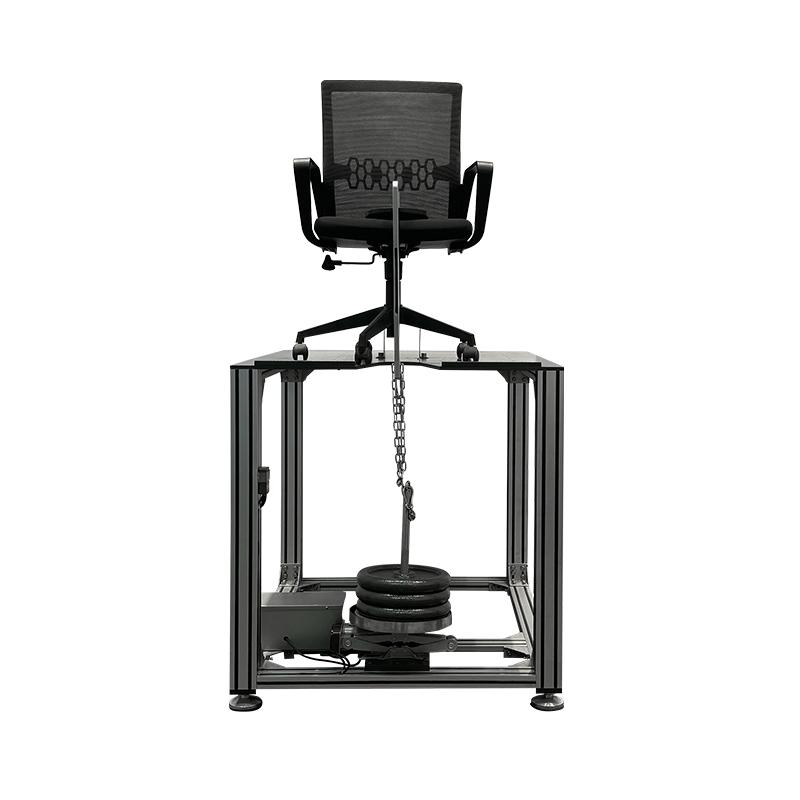

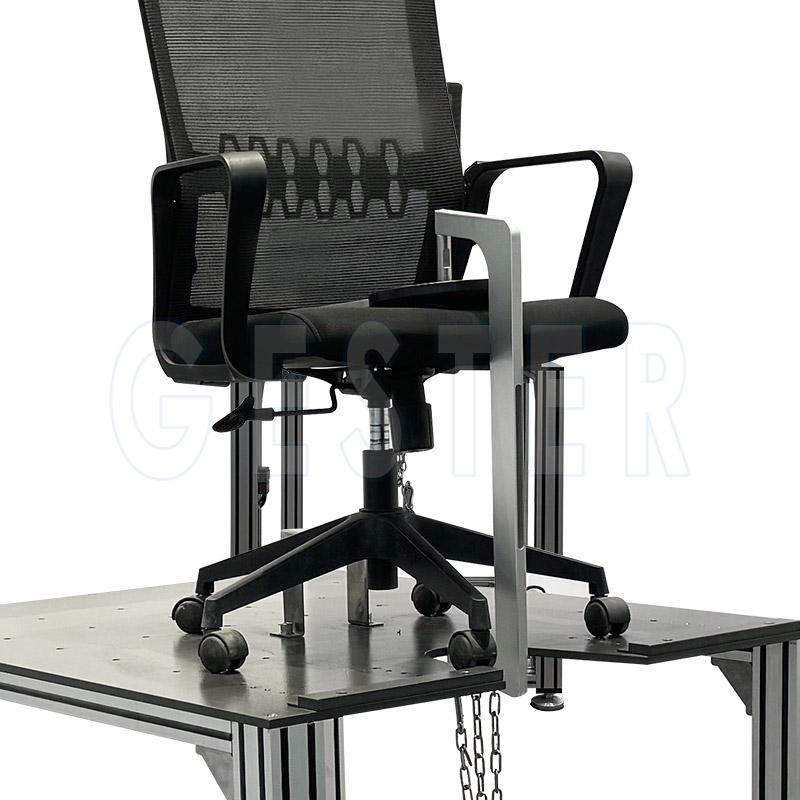

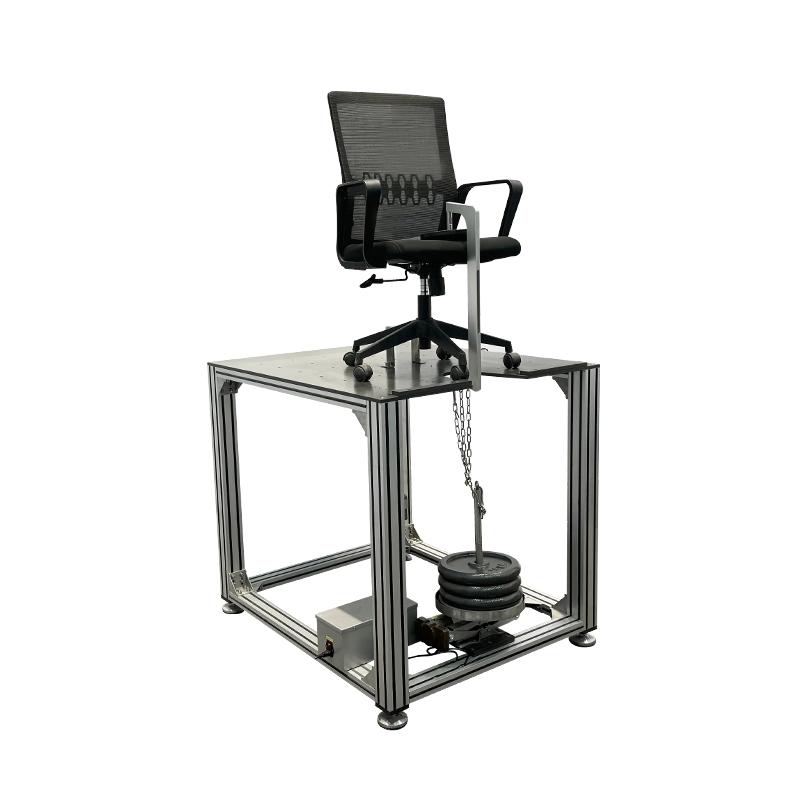

Chair Front Stability Testing Machine GT-LB06A

This machine is suitable for testing seat, office chair forward stability test.

  • Brand:

    GESTER
  • Item NO.:

    GT-LB06A
  • Order(MOQ):

    1
  • Payment:

    100% T/T in advance
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-30 days
  • Product Detail

Chair Front Stability Testing Machine GT-LB06A


Product Introduction

Application:

This Chair testing machine is suitable for testing seat, office chair forward stability test.



Standards:

ANSI/BIFMA X5.1 - 2017 Section 11.4, EN 1335-3-2009 Section 7.1.2, 7.1.3,
EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, 7.3.1, 7.3.2, EN 16139 Section 4.3.2





Key Specifications



Model

 GT-LB06A

Test load

 600N (135 lbf.) (Accumulated weight)

Loading point number

 1 ponit

Loading point

 Seat surface center, 60mm from front edge

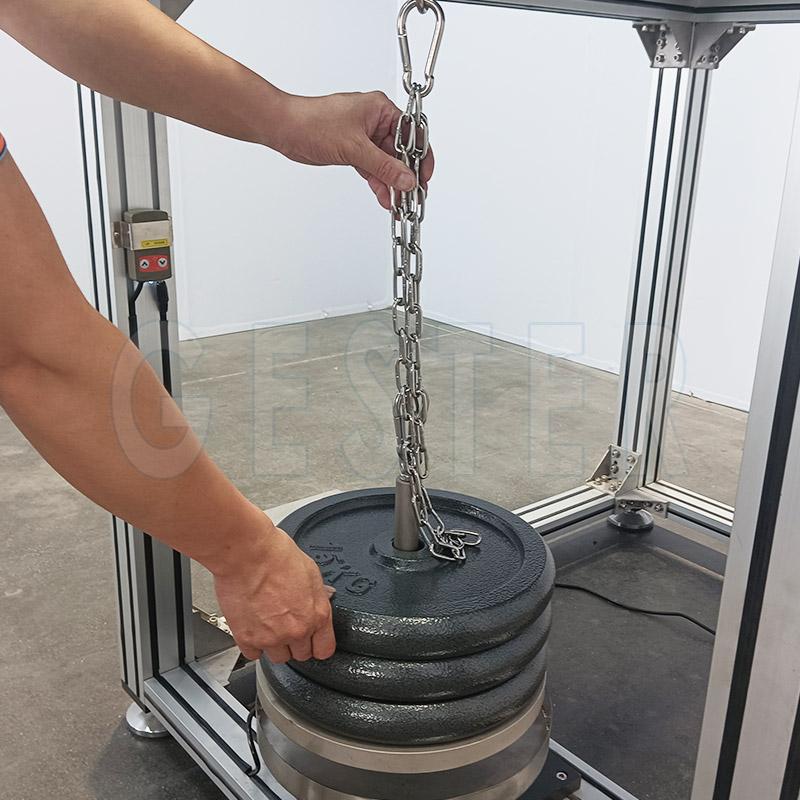

Weights basket

 Manual controlled lifting

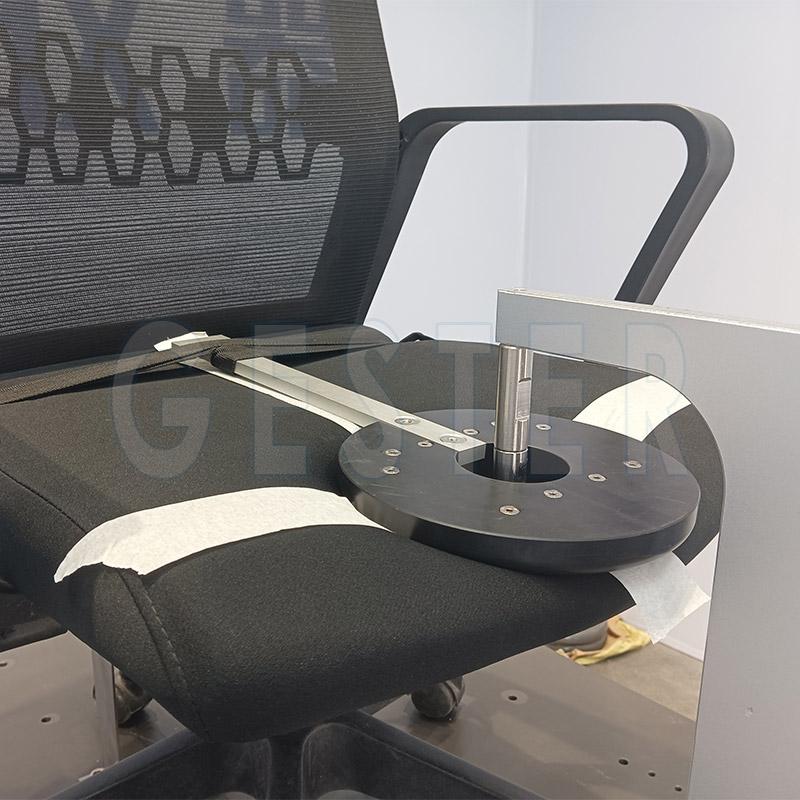

Seat surface load pad

 Diameter: 200mm, camber surface: R300mm

Loading rod

 Diameter

 19mm

 End

 A type: Spherical SR19mm

 B type: 45°Taper

Dimensions

 120×100×90cm

Weights

 300Kg

Standard Accessories

 Weights basket            1 pc

 Seat surface load pad     1 pc

 600N Load weights         1Set

 Weights holding device    1 pc

Option Accessories

 FB-200N IMADA push pull scale

 500N Load weights for EN 1335-3-2009 Section 7.1.3

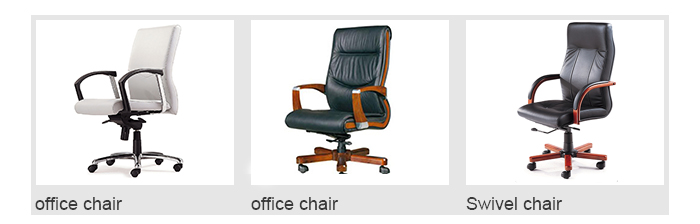

Applications Industry

All kinds of chair products can be tested on the Chair Front Stability Testing Machine
