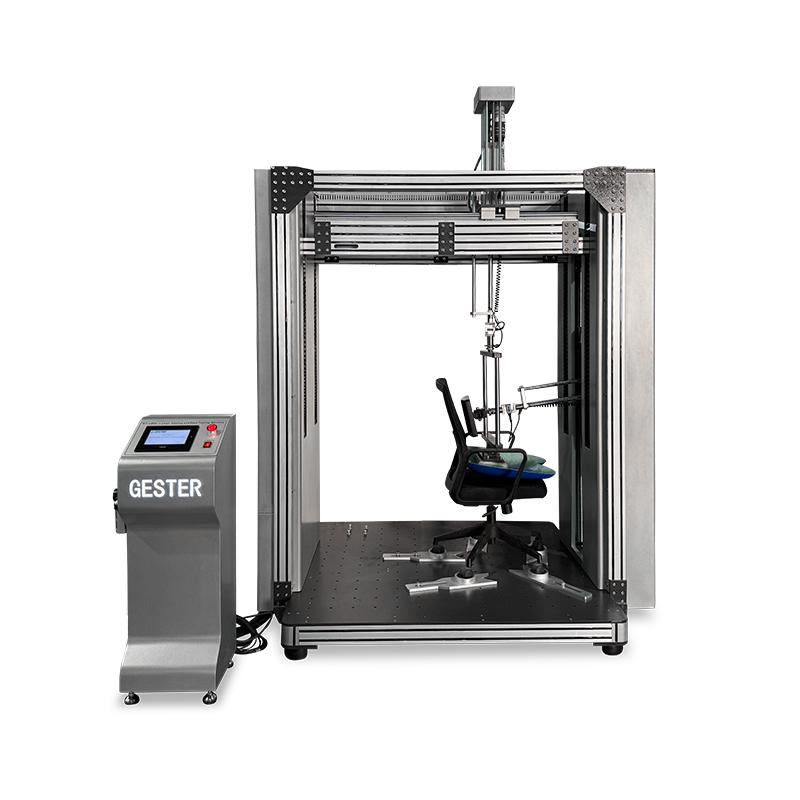

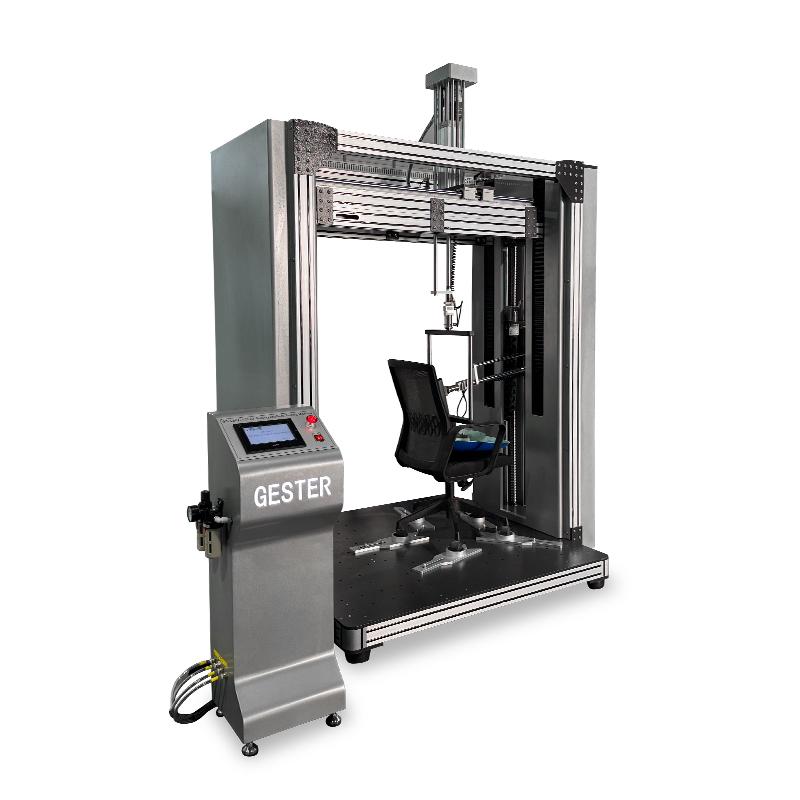

Chair Seating and Back Testing Machine GT-LB04-1


Product Introduction

Application:

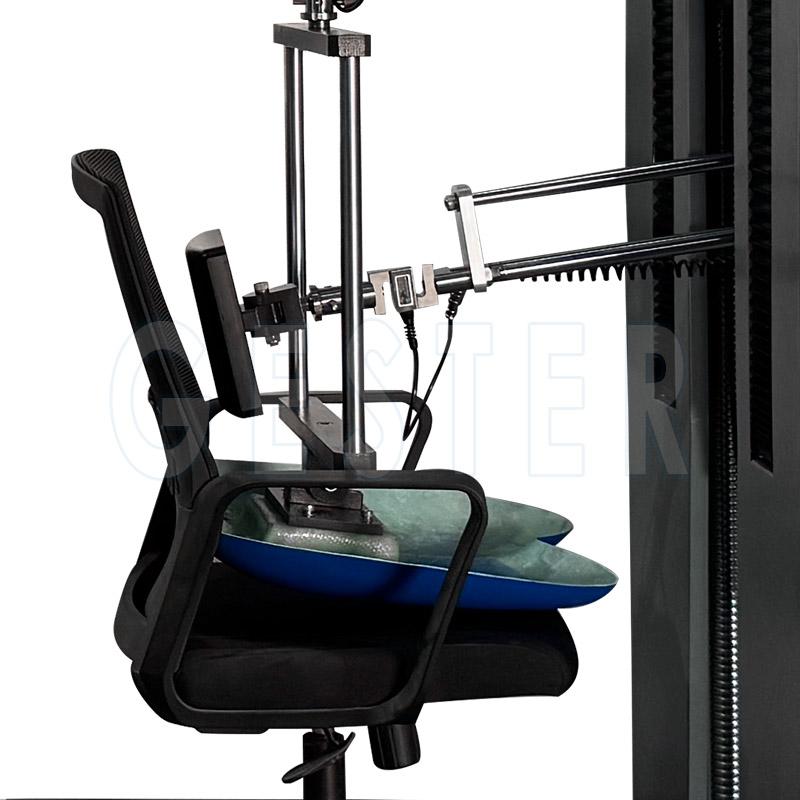

The Chair Seating and Back test machine is to simulate the daily use of the process of loading the seat on the seat and back to test the durability. Firstly, the seat surface loading module is used to load the seat surface. Secondly, the back loading module is loaded to the seat back and then unloaded. Thirdly, the seat surface loading module is unloaded to complete a loading. The loading operation is repeated a certain number of times to test the durability performance of the seat .


Feature:

1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.

2. Servo motor drive, test loading control is more accurate, and the noise is even smaller.

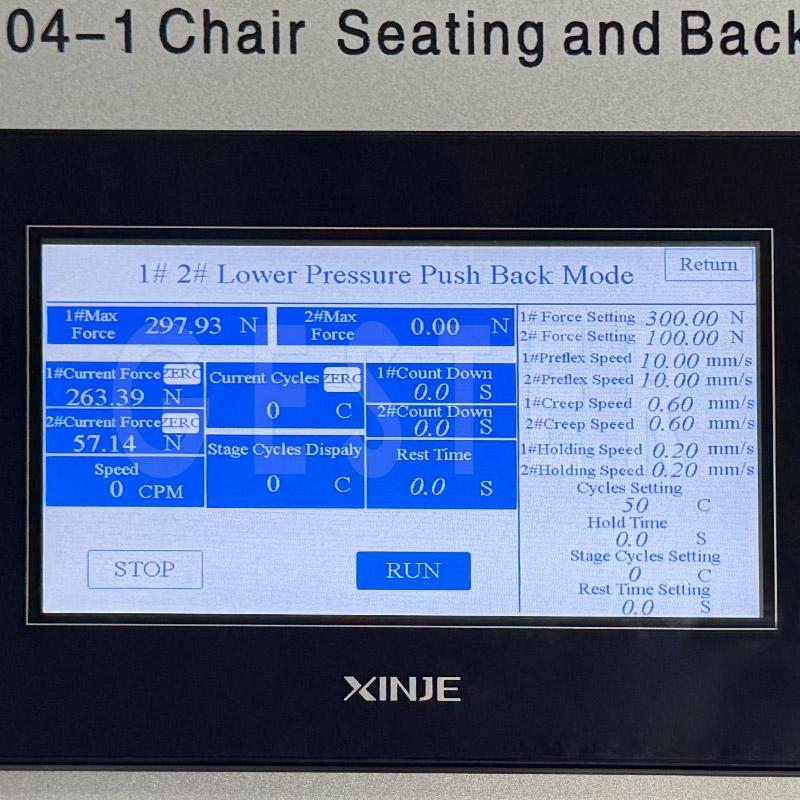

3. PLC touch screen control makes the operation more convenient.

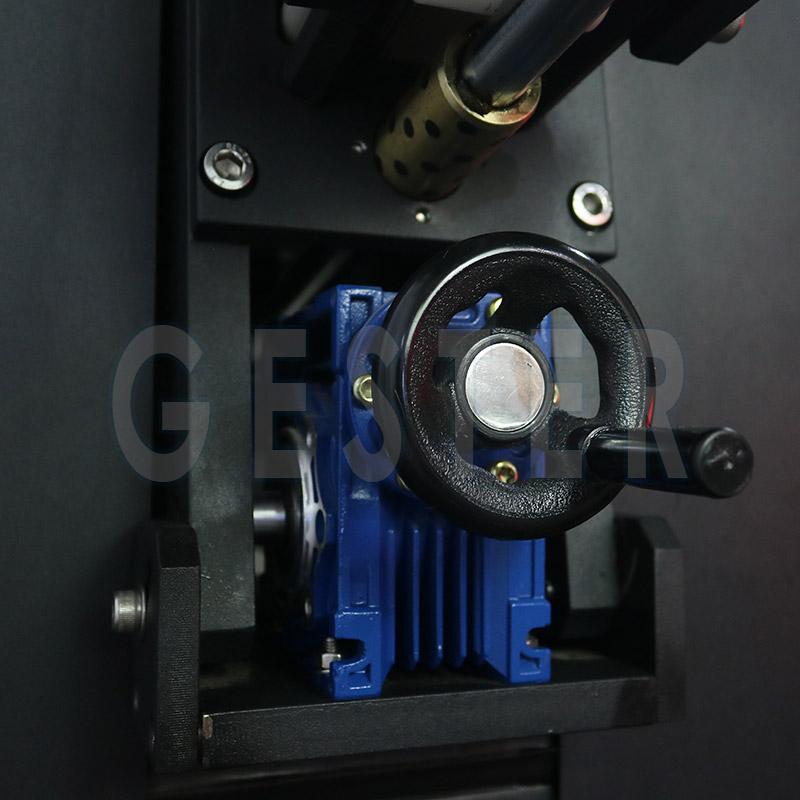

4. In addition, the machine loading device using electric control movements, more extensive test space.



Standards:

EN 1728-2012 Section 6.4, 6.5, 6.7, 6.12, 6.15, 6.16, 6.17, 7.3, 7.4,7.9, 8.2, 8.4.1,8.5 (6.25, 6.26 optional accessories)

EN581-2-2015 (corresponding with EN1728-2012),

EN1335-3 -2009 Section 7.2.1, 7.2.2, 7.3.1

EN 1729-2-2012 Section 5.3.2, 5.3.3, 5.3.5, 5.3.6, (5.3.8 need the optional accessories)

ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.5, 7.6, 7.7, 7.8, (7.11,7.12 need the optional accessories)

GB/T 10357.3 -2013 Section 4.3, 4.4,4.7,4.8,4.10,4.11, (4.13,4.14 need the optional accessories)

BIFMA X5.1 - 2017 Section 5,6,17 (9,14,15 need the optional accessories)

EN 16139-2013 (corresponding with EN1728-2012)

BS5459-2-2000 Section A5.1 (A5.3, A7.4 need the optional accessories)

QB/T 2280-2007 Section 6.6.4, 6.6.9 (6.6.10, 6.6.11need the optional accessorie)

Key Specifications



Model

GT-LB04-1

Working position

1

Seat surface load capacity

2000N

backrest load capacity

2000N

Seat surface height

15 - 70cm

Testing time

0-99999 ( can be adjustment)

Control method

PLC touch screen control

Lifting method

Automatic lifting

Power

1 phase AC 220V 50/60Hz

Dimension (WxDxH)

180x150x200cm

Weight

500kg

Standard Accessories

GT-LB01-1A Loading point template   1 pc

GT-LB01-2A Seat loading pad    1 pc

GT-LB01-3 Smaller seat loading pad    1 pc

GT-LB01-4 Back loading pad    1 pc

GT-LB01-5 Local loading pad    1 pc

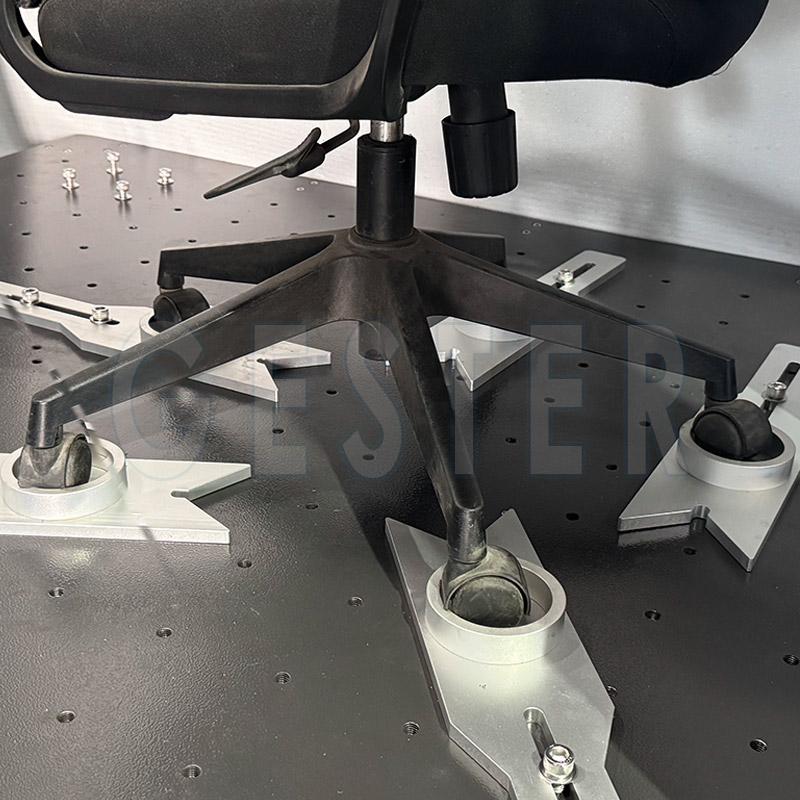

Stationary fixture    1 pc

Stops    1 pc

Optional Accessories

GT-LB01-7 Impact hammer

GT-LB01-1B Loading point template

GT-LB01-2B Seat loading pad

GT-LB01-10 BIFMA cumulative Weight




Applications Industry

All kinds of chair products can be tested on the Chair Seating and Back Testing Machine
