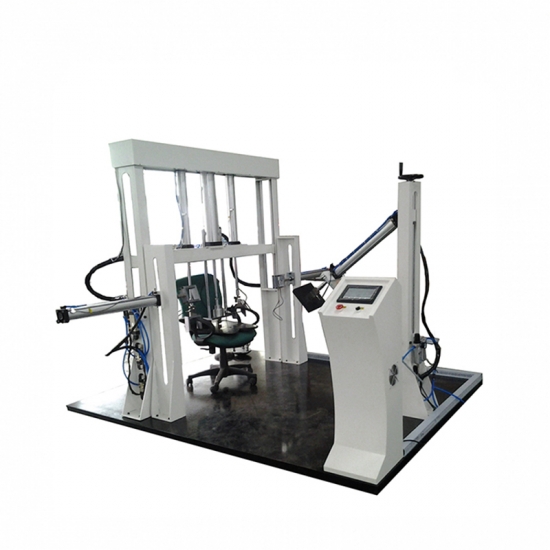

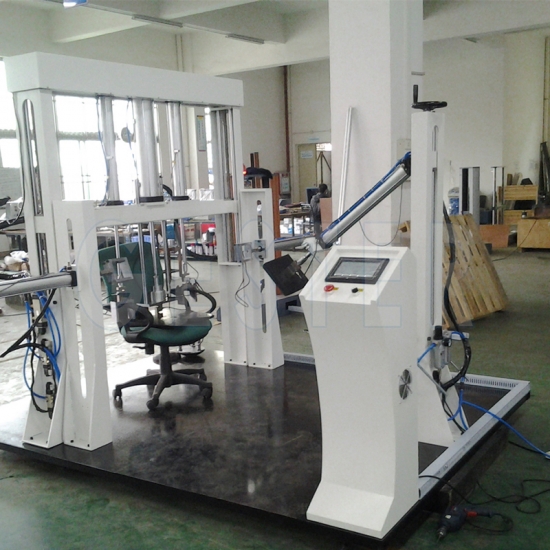

Chair Assembly Testing Machine GT-LB08-2

Chair Assembly Testing Machine used for the strength and durability of seats and stools.

Brand:
GESTER
Item NO.:
GT-LB08-2
Order(MOQ):
1
Payment:
100% T/T in advance
Shipping Port:
Xiamen Port
Lead Time：
7-30 days

Inquire now

Product Detail

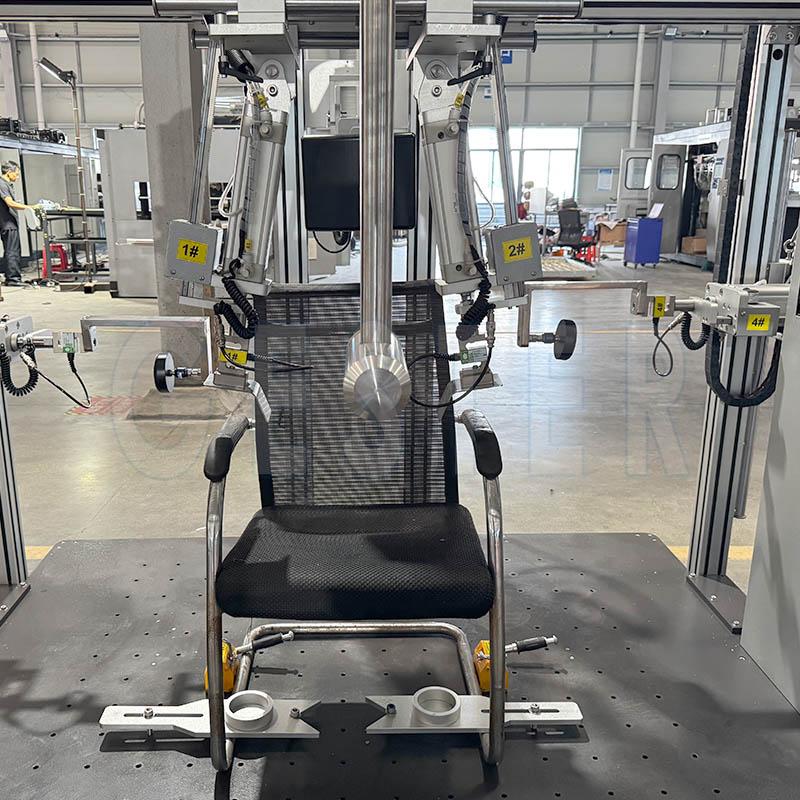

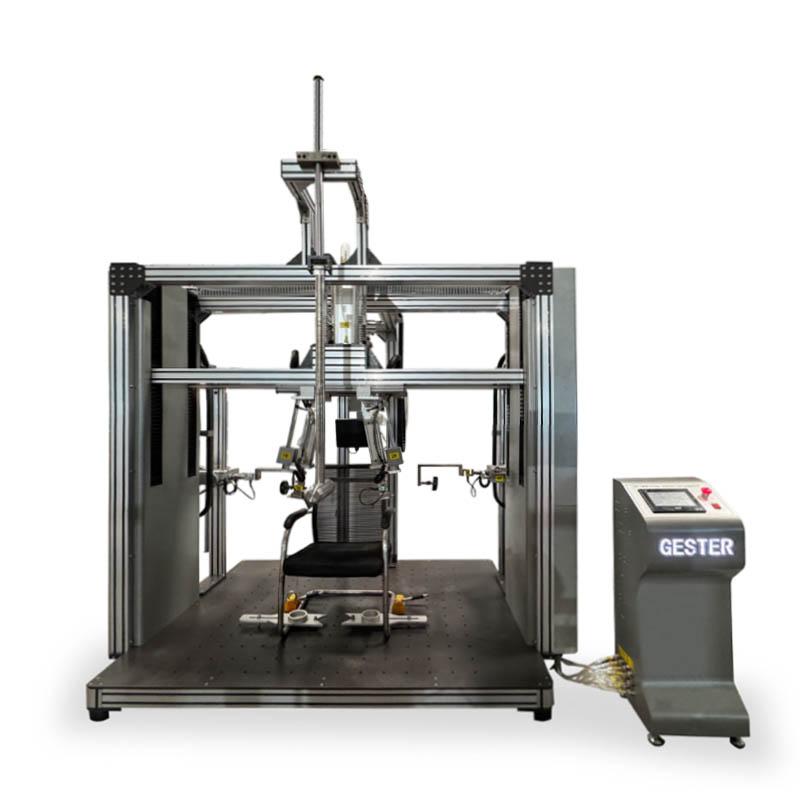

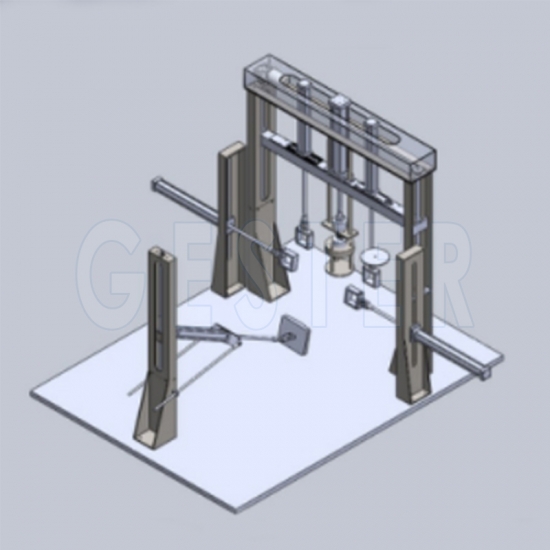

GT-LB08-2 Chair Assembly Testing Machine

Product Introduction

Application:

This Chair Testing Equipment is according for the standard EN 1728 and combination with different methods:

Seat static load and back static load test
Seat and back durability test
Seat front edge static load test
Seat front edge durability test
Seat impact test
Back rests vertical load test
Back rests horizontal forward static load test
Headrest static load test
Foot rest static load test or durability test
Back impact test
Leg rest static load test
Leg forward or sideways static load test
Arm rest sideways static load test
Arm rest downwards static load test
Arm rest durability test
Auxiliary writing surfaces static load test and durability test
Arm rests vertical upwards static load test

Standards:

EN 1728-2012 Section 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6.11, 6.12, 6.13, 6.14, 6.15, 6.16, 6.17, 6.18, 6.20, 6.21, 6.22, 6.24, 6.25, 6.26, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.12
EN581-2-2015 (correspond EN1728-2012),
EN 16139-2013 (correspond EN1728-2012)
EN1335-3 -2009 Section 7.2, 7.3.1, 7.3.2, 7.3.4,
EN 1729-2-2012 Section 5.3
ISO 7173-1989 Section 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12
GB/T 10357.3 -2013 Section 4.3, 4.4, 4.5,4.6, 4.7, 4.8,4.9, 4.10,4.11, 4.12, 4.13 , 4.14

BS5459-2-2000 Section A5.1, A5.2, A5.3, A5.5, A7.2, 7.3, A7.4, A7.7, A7.9

Feature:

1. This chair testing machine is single station comprehensive test instrument, which could only test one function of chair every time.

2.The cylinder together with servo motor, make test load control more accurate, and noise small.

3.The crossbeam could be lifted automatically, which make test space more extensive.

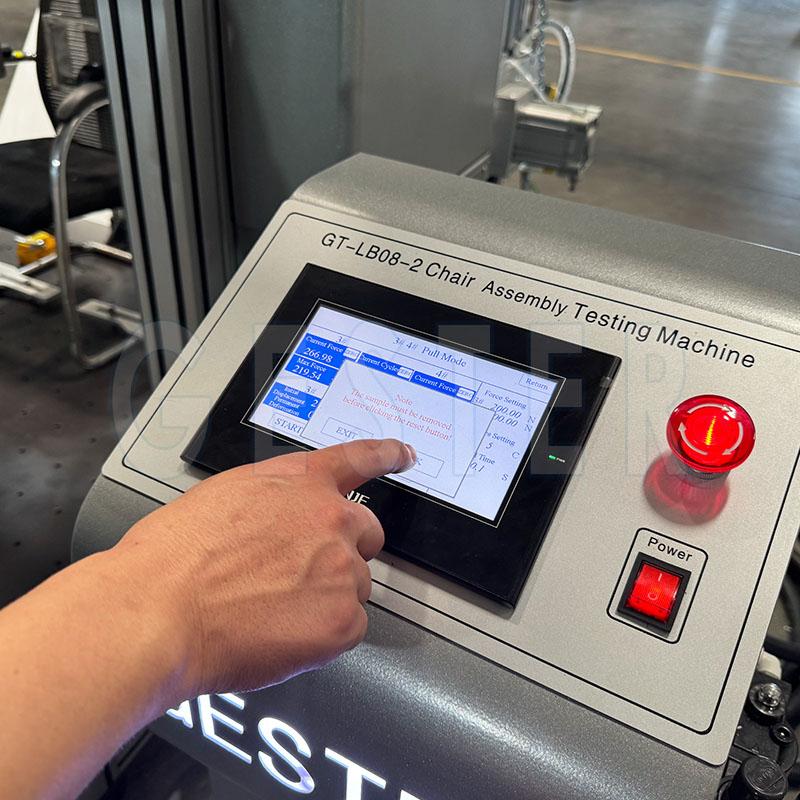

4.Chair Assembly Testing Machine is easy to operate with PLC touch screen.

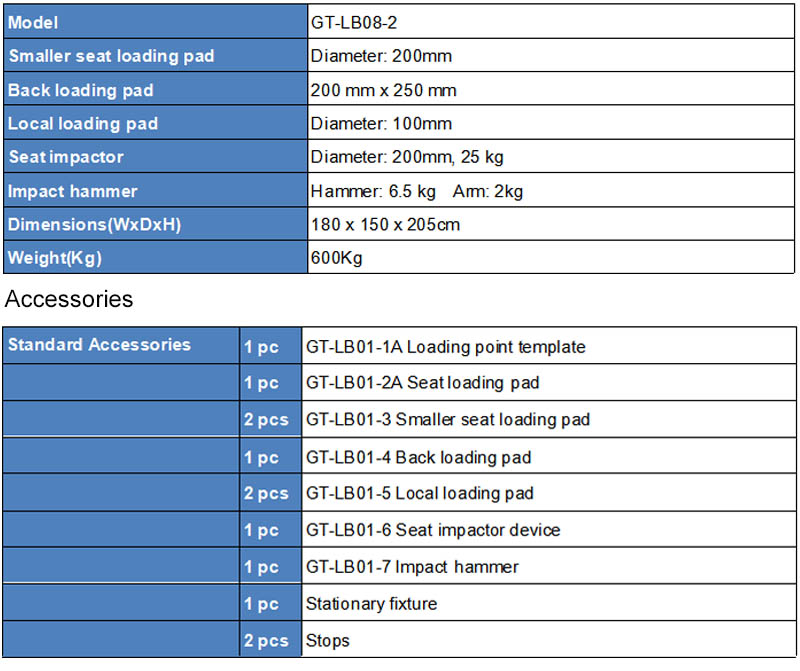

Key Specifications

Model	GT-LB08-2
Smaller seat loading pad	Diameter: 200mm
Back loading pad	200 mm x 250 mm
Local loading pad	Diameter: 100mm
Seat impactor	Diameter: 200mm, 25 kg
Impact hammer	Hammer: 6.5 kg Arm: 2kg
Dimensions(WxDxH)	180 x 150 x 205cm
Weight(Kg)	600Kg

Accessories

Standard Accessories	1 pc	GT-LB01-1A Loading point template
	1 pc	GT-LB01-2A Seat loading pad
	2 pcs	GT-LB01-3 Smaller seat loading pad
	1 pc	GT-LB01-4 Back loading pad
	2 pcs	GT-LB01-5 Local loading pad
	1 pc	GT-LB01-6 Seat impactor device
	1 pc	GT-LB01-7 Impact hammer

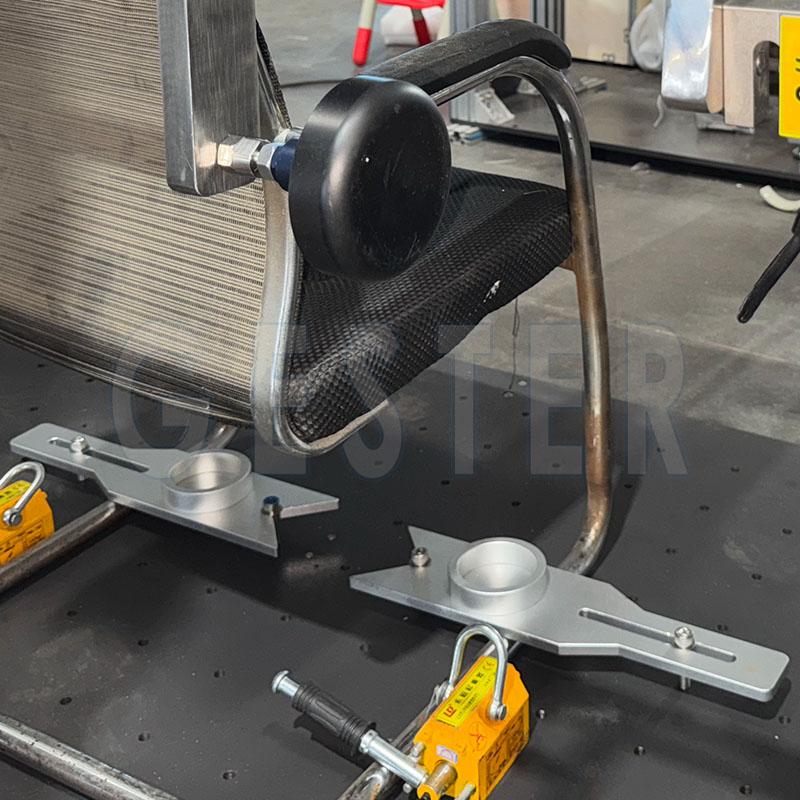

	1 pc	Stationary fixture
	2 pcs	Stops
