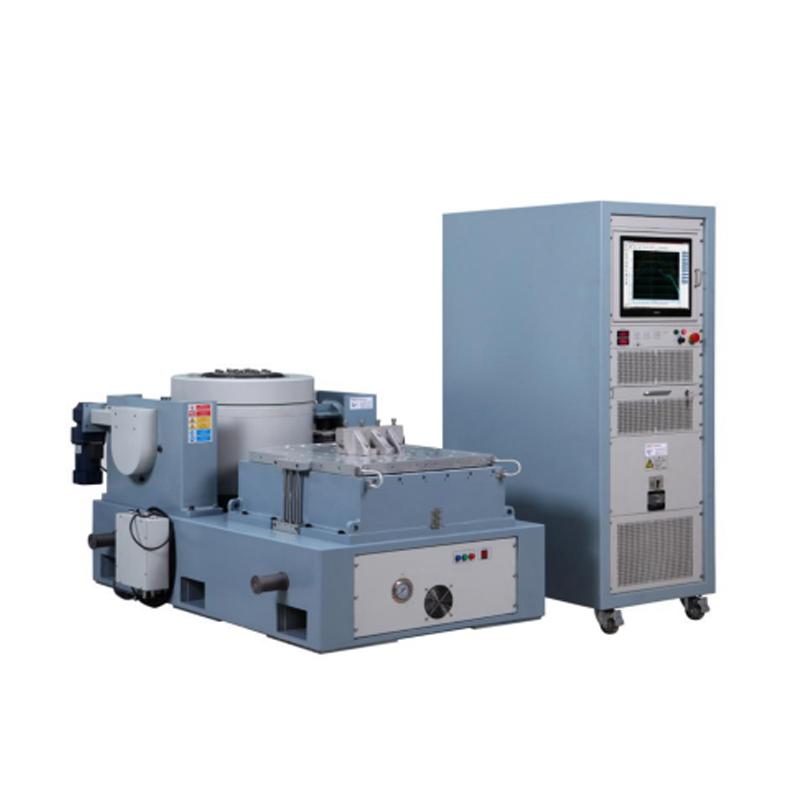

Electromagnetic Random Vibration Tester GT-N48

Packaging Testing Equipment Manufacturers | vibration test system

Brand:
GESTER
Item NO.:
GT-N48
Order(MOQ):
1
Lead Time：
15-30 days

Inquire now

Product Detail

Electromagnetic Random Vibration Tester GT-N48

Product Introduction

Application:

Vibration testing involves applying excitation or shock to a component or device to observe its response under real-world environmental conditions. Vibration testing is used in an extremely wide range of industrial products from circuit boards, aircraft, naval vessels, rockets, missiles, automobiles, and household appliances.

Vibration Machine Selection Formula And Vibration Generator Structure Diagram

This equipment is usually customized according to the customer's test requirements. Before the quotation, the customer needs to provide the weight and size of the test sample.
Test types: Sine sweep, Random
Frequency range: 1-3000Hz
Formulas: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2 F=M(kg) ×A(g)

Key Specifications

A03S15 Electrodynamic Vibration Generator Specifications
Maximum Sine Force	300Kg.f peak
Maximum Random Force	300Kg.f r.ms
Maximum Shock Force	600Kg.f peak
Frequency Range	1～4000 Hz
Maximum Displacement	40mm p-p
maximum speed	2m/s
Maximum Acceleration (No Load)	100G(980 m/s2)
Maximum Payload	120 kg
Isolation Frequency	2.5 Hz
Armature Diameter	Ф150 mm
Armature Mass	3kg
Table Threads	13×M8
Magnetic Leakage	＜10gauss
Dimensions	780mm×570mm×670mm
Weight	About 460KGS
SA03K Digital Switching Power Amplifier
Output Power	3KVA
Output Voltage	120V
Output Current	30A
Dimensions	910mm×610mm×1150mm
Weight	330KGS
Servo Protection System
Functions	Temperature, Air Pressure, Over-displacement, Over-voltage, Over-current, Input Under-voltage, External Fault, Control Power, Logic Fault, Phase Loss, etc.
Digital Vibration Controller VCS-2
Hardware	2 Input Channels, 1 Output Channel Capabilities: Sine, Random, Classic Shock
Control PC	Branded Industrial PC with LCD Monitor (Keyboard/Optical Mouse Included)
Software	Chinese/English Interface, Time/Frequency Domain Analysis, Signal Source, Sine Sweep Analysis, Automatic WORD Report Generation
Operating system	Windows 10
Accelerometer LTE	Frequency Range: 1—7000Hz Sensitivity: 30PC/g Temperature Range: -40 - 160℃
VT40 Vertical Extension Platform
Material	Aluminum/Magnesium Alloy
Table Size	400 mm×400 mm
Mounting Threads	M8 Stainless Steel Inserts
Maximum Frequency	2000 Hz
Weight	14KGS
H40 Hydrostatic Slip Table
Material	Aluminum/Magnesium Alloy
Table Size	400 mm×400 mm
Mounting Threads	M8 Stainless Steel Inserts
Maximum Frequency	2000 Hz
Weight	25KG
B751D Cooling Blower (with Silencer)
Power	0.75 KW
Air Flow	11 m3/min
Dimensions	500630850mm
Weight	45KGS
Electrical Requirements:
Power Supply	3-phase 380V/50Hz, 7kVA
Ground Resistance	≤4Ω

Configuration Description and Accessories

Shaker Body	A03S15 Electromagnetic Excitation Generator	1 Unit
	B751D Cooling Blower (with Silencer)	1 Unit
	VT40 Vertical Extension Platform 400mm×400mm	1 Unit
	H40 Horizontal Oil-Film Slide Table 400mm*400mm	1 Set
Digital Switching Power Amplifier	SA03K Digital Switching Power Amplifier	1 Unit
	Servo Protection System	1 Set
	Excitation Power Supply	1 Set
Digital Vibration Controller	Digital Vibration Controller Mainframe	1 Unit
	System Accelerometer	2PCS
	Control PC	1 Set
	Control Software Installation Disc	1 Set
Standard accessories	Extension Cables & Air Ducts	1 Set
	Auxiliary special tools	1 Set
	Vibratory Press Bar/Strip Fixture	1 Set
	Vibration Isolation Air Spring	4PCS
