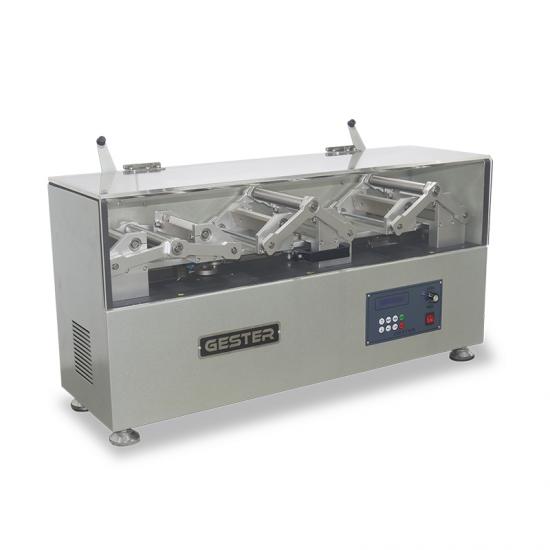

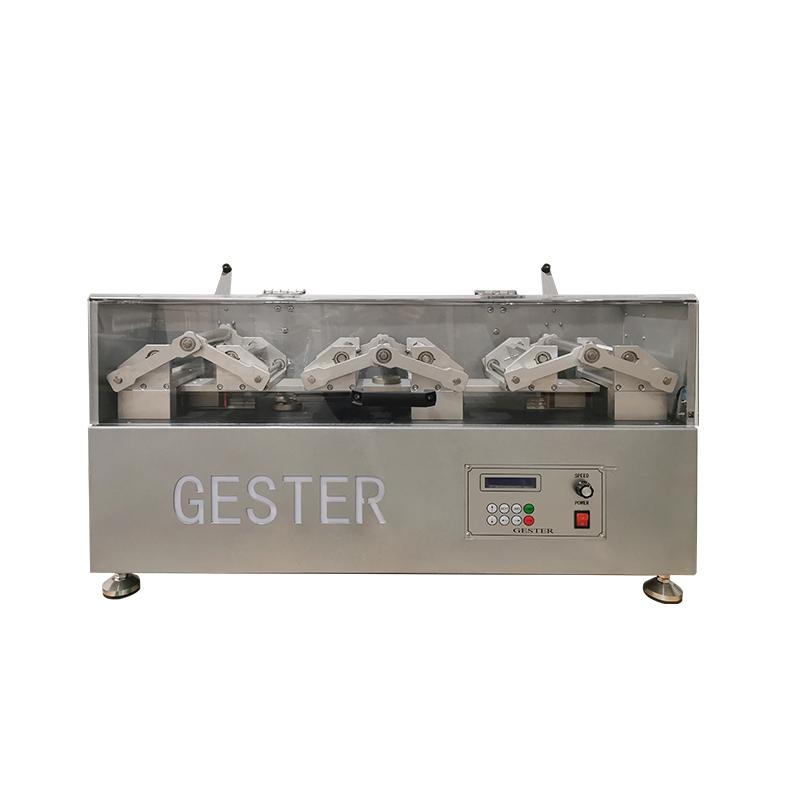

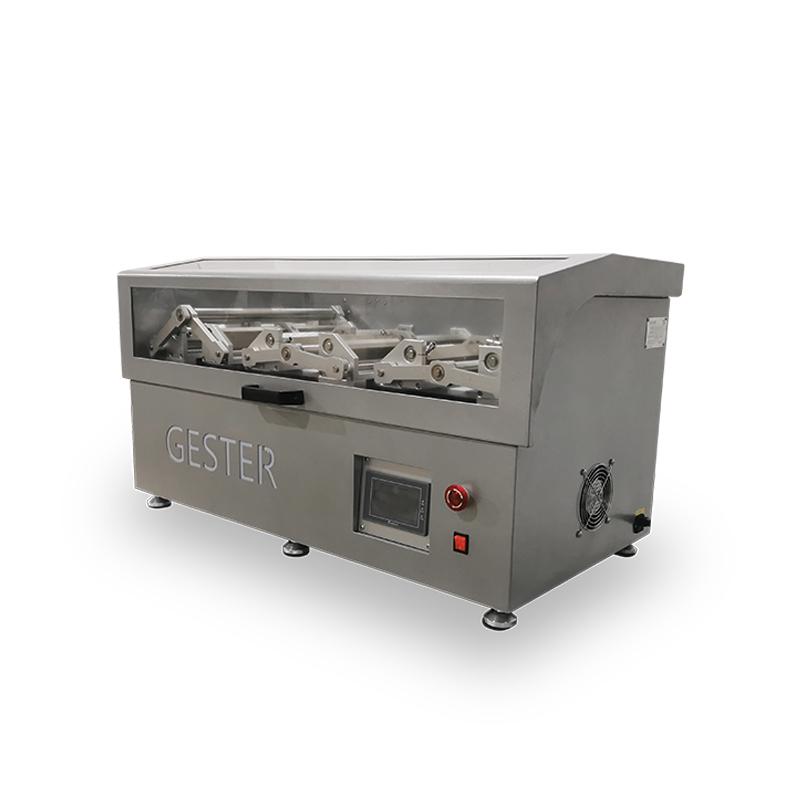

EN Sole Flexing Tester GT-KB06

Sole Flexing Tester is used to measure the flexing resistance of shoe soles under continuous movement.
  • Brand:

    GESTER
  • Item NO.:

    GT-KB06
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

EN Sole Flexing Tester GT-KB06


Product Introduction

Application:

This EN Sole Flexing Tester is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

Standards:
SATRA TM161, ISO 17707, ISO20344-2020 section8.6 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991section8.4.2, QB/T 2885, DIN 53543

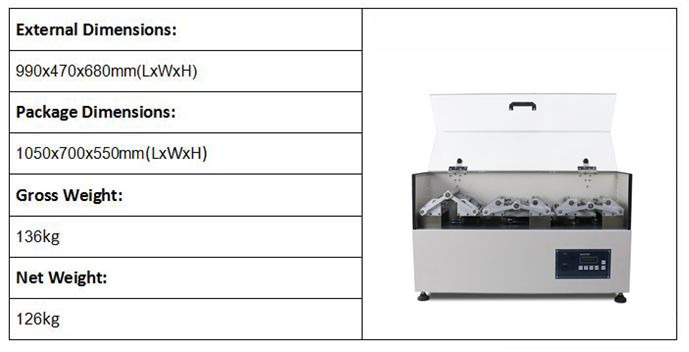

Dimensions
EN Sole Flexing Tester GT-KB06


Feature

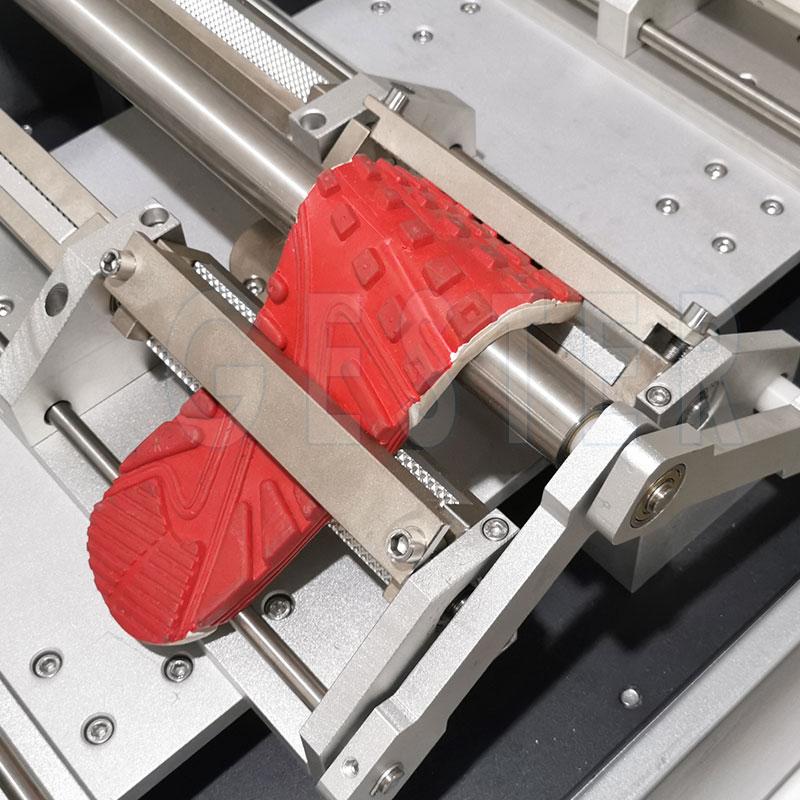

Plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

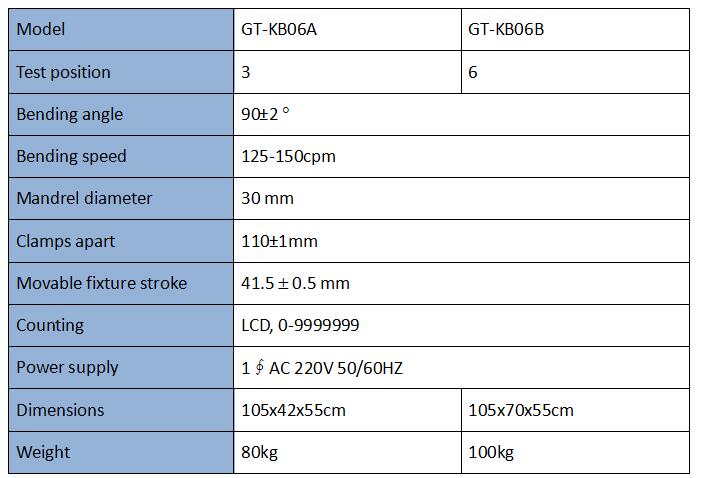

Key Specifications


Model

GT-KB06A

GT-KB06B

Test position

3

6

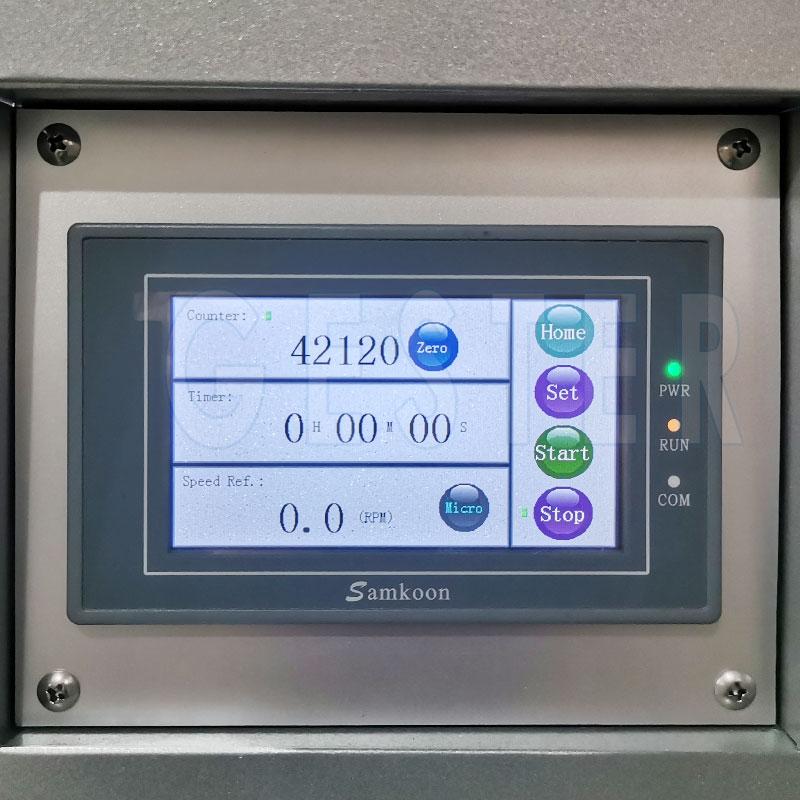

Control mode

Touch screen controlled

Bending angle

90±2 °

Bending speed

125-150cpm

Mandrel diameter

30 mm

Clamps apart

110±1mm

Movable fixture stroke

41.5 ± 0.5 mm

Counting

0-9999999

Power supply

1∮AC 220V 50/60HZ

Dimensions

105x42x60cm

105x60x60cm

Weight

About 90kg

160kg

Accessories

Standard accessories

1set

Spanner

1pcs

Chisel cutter(2mm)

1pcs

Power line



Application Industry
All the material blow can be tested on the EN Sole Flexing Tester
