Upper and Vamp Material Cold Flexing Tester GT-KC04B

This Upper and Vamp Material Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue.
  • Brand:

    GESTER
  • Item NO.:

    GT-KC04B
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    10-30 days
  • Product Detail

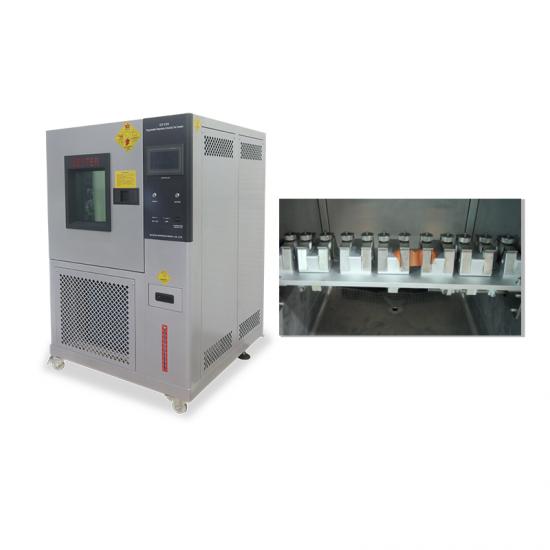

Upper and Vamp Material Cold Flexing Tester GT-KC04B


Product Introduction

Application:

This Upper and Vamp Material Cold Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature or with dry specimens at sub zero temperatures. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles


Standards:

ISO 5423 section 5.2, EN ISO 20344 Section 6.5, ISO 4643 (Annex B), AS/NZS 2210.2 Section 6.5.2
SATRA TM25, EN ISO 22288, ISO 5402-2, GB/T 20991 Section 6.5.2, GB20265 section 4.1, QB/T 2224, ISO4643


Dimensions

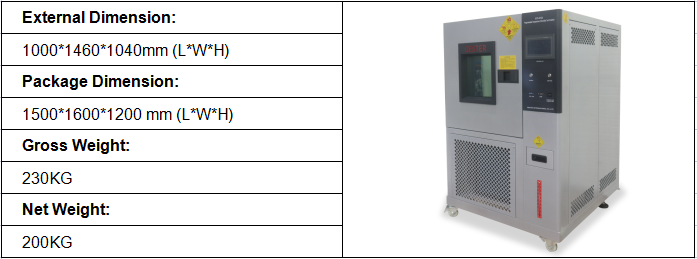

Upper and Vamp Material Cold Flexing Tester Dimensions

Feature

Its principle: A square specimen of the material is folded over two inverted V-shaped clamps. The

clamps are able to move relative to one another so that as they become closer the specimen is

flexed to produce one downward crease surrounded by four upward creases. During the test the

clamps oscillate at a constant speed so that the specimen is repeatedly flexed. After a

predetermined number of cycles the test is stopped and the specimen is visually examined for

signs of damage or salt spue.


Key Specifications


Model

GT-KC04B

Grip

40degree V-shaped

Number of specimen

12pcs

Counter

LCD, 0- 999, 999

Test stroke

19mm

Flexing speed

90±9CPM

Sample size

64x64mm

Control System

Programmable Microprocessor Control

Temperature range

-40~100℃

Power Supply

1∮AC220V 50/60HZ

Dimensions

100X146X104cm

Weight

200kg

Standards accessories

12sets

Stainless steel grip



1pc

Power line

Optional accessories

GT-KD20 Pneumatic Sample Cutting Machine

(Cutting die: 64x64mm)


Application Industry

All kinds of leather materials can be tested on theUpper and Vamp Material Cold Flexing Tester.

Vamp Material Cold Flexing Tester
