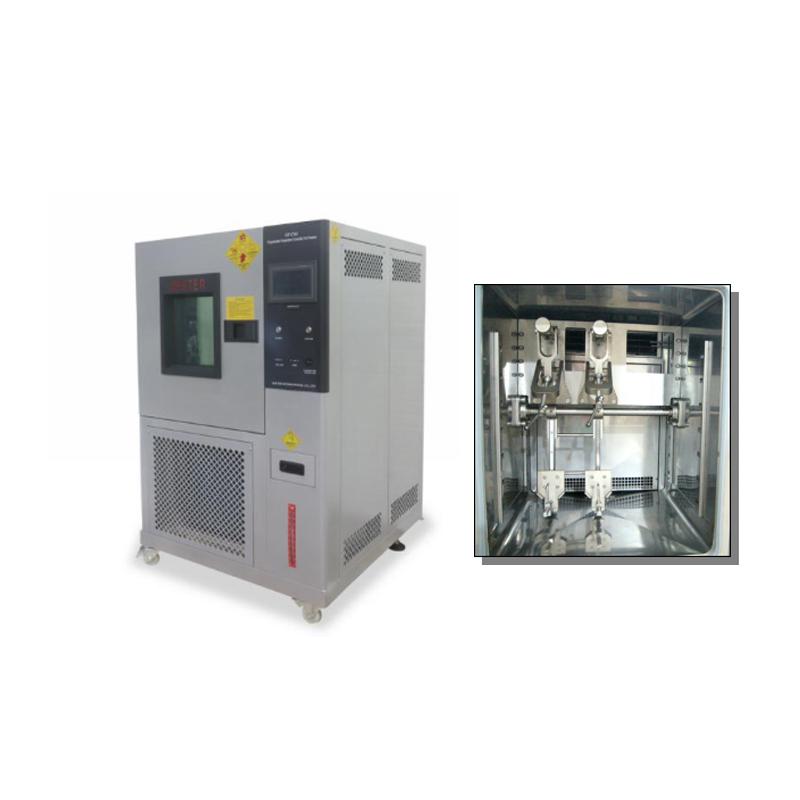

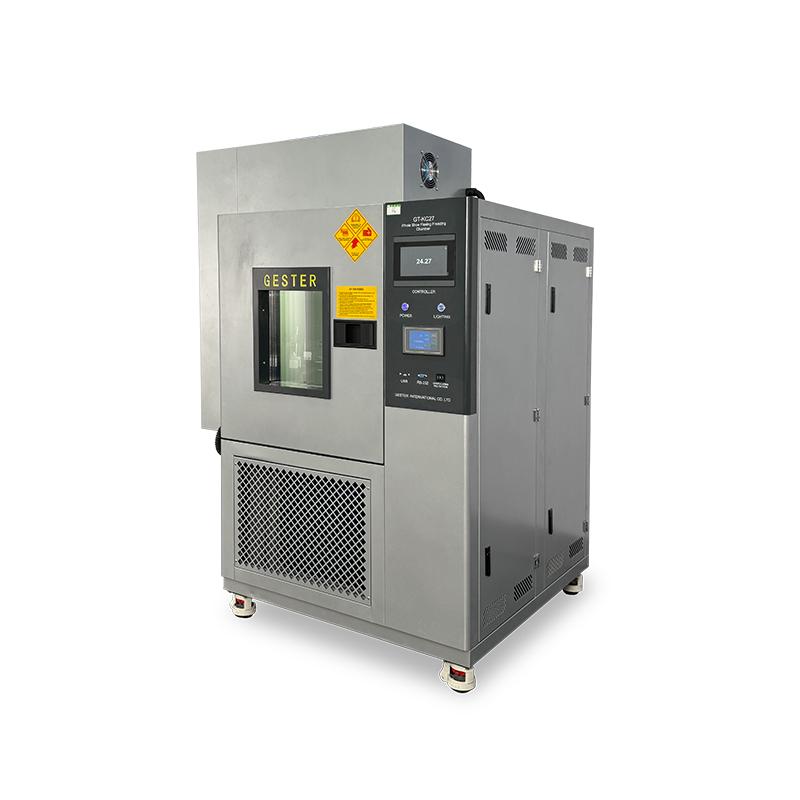

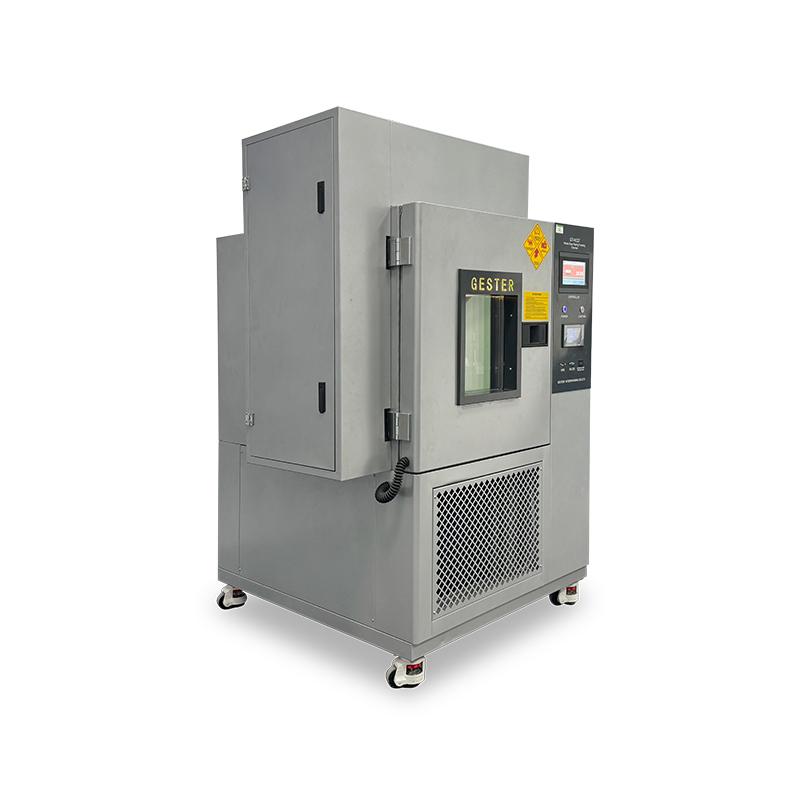

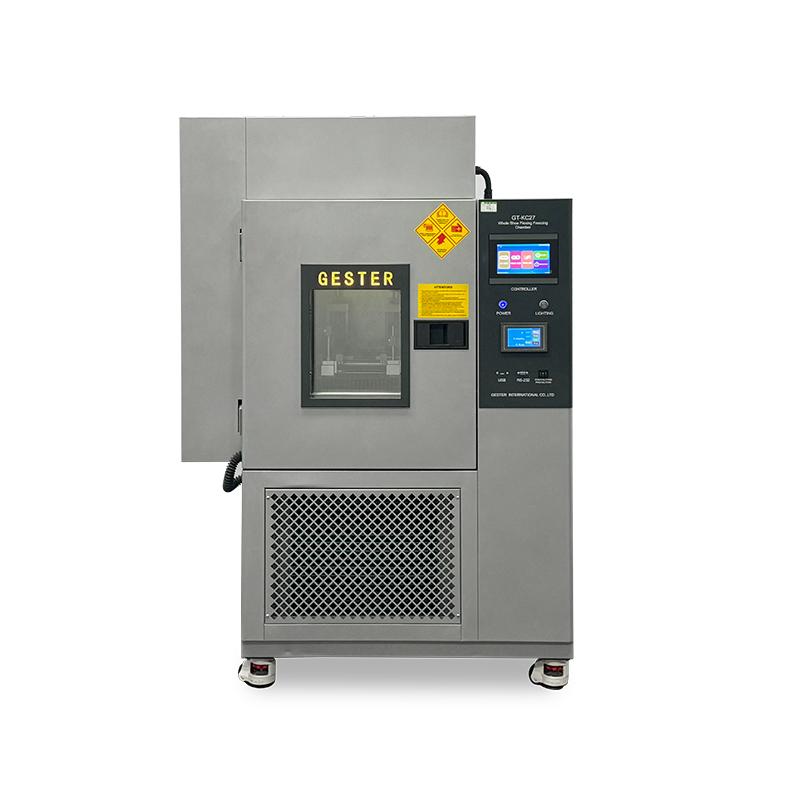

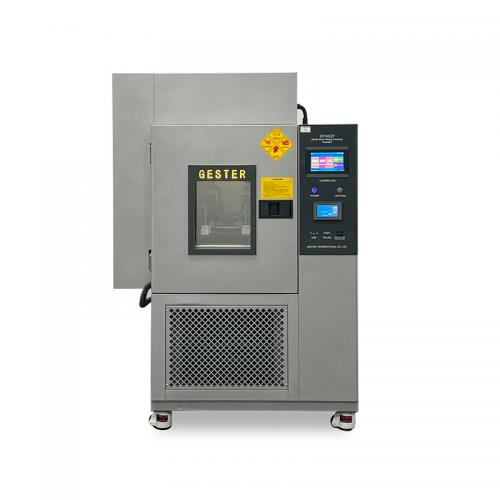

Whole Shoe Flexing Freezing Chamber GT-KC27
|
Application: This Whole Shoe Flexing Freezing Chamber is specially used for low temperature flexing test of whole shoes, such as sports shoes, cause shoes, safety shoes etc. Under the low temperature condition, to assess the flex resistance or cracking after a period of reciprocating flexing movement under the specified frequency and angle. Principle: Press the shoe palm, flexing the shoe heel continuously.Standards: SATRA TM92 |
Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
With vacuum glass observation window, more efficient to observe the testing situation.
Temperature control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groups.
The flexing system has separate controller with function of power off memory and automatic stop when test done.

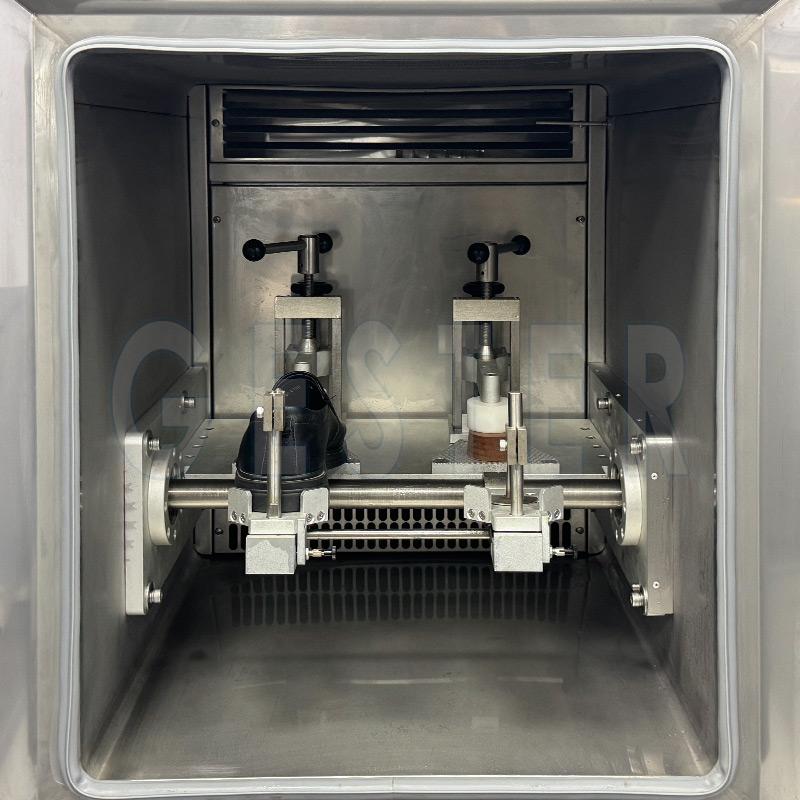

All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.
|
Model |
GT-KC27 |
|
|
Flexing Parameters |

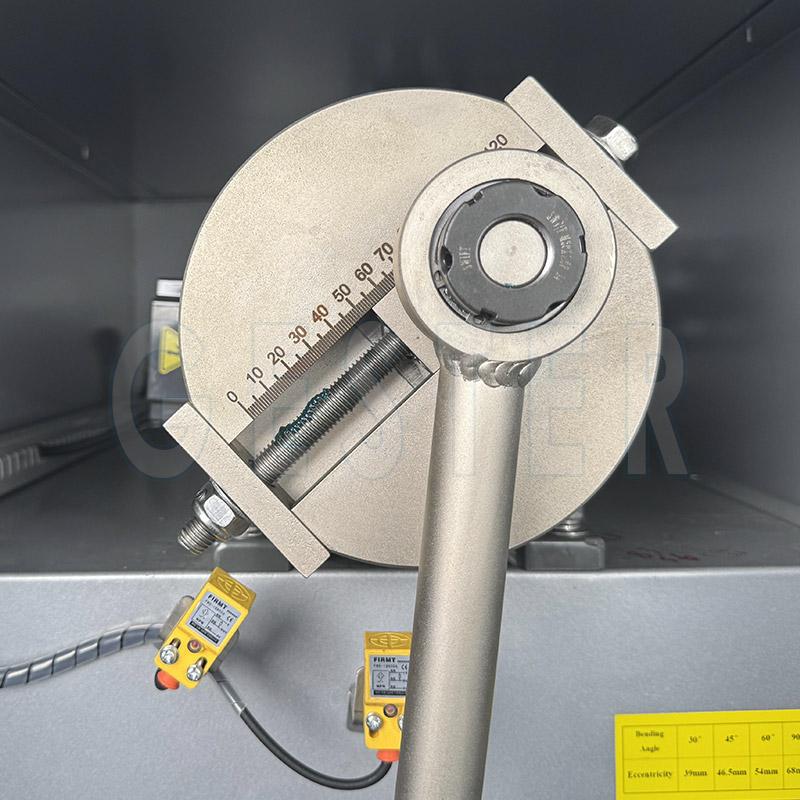

Bending angle |
45°, 60 ° and 90° (can be adjusted) |
|
Testing Sample |
2 samples |
|
|
Counter |
LCD display, 0-99,999,99 (8 digits) |
|
|
Control System |
Touch Screen Programmable Microprocessor Control |
|
|
Temperature range |
-40 ~100℃ |
|
|
Temperature Accuracy |
+/-0.5℃ |
|
|
Inside Chamber Capacity |
150L |
|
|
Chamber Material |
SUS # 304 Stainless Steel and Painted |
|
|
Power Supply |
1∮AC220V 50/60HZ |
|
|
Dimensions |
110X170X180 cm |
|
|
Weight |
400kg |
|
Accessories
|
Standards accessories |
1 Set |
Heel clamp |
|
1 Set |
Spanner |
|
|
1 Set |
Plastic pad |
|
|
1 pc |
Power line |
