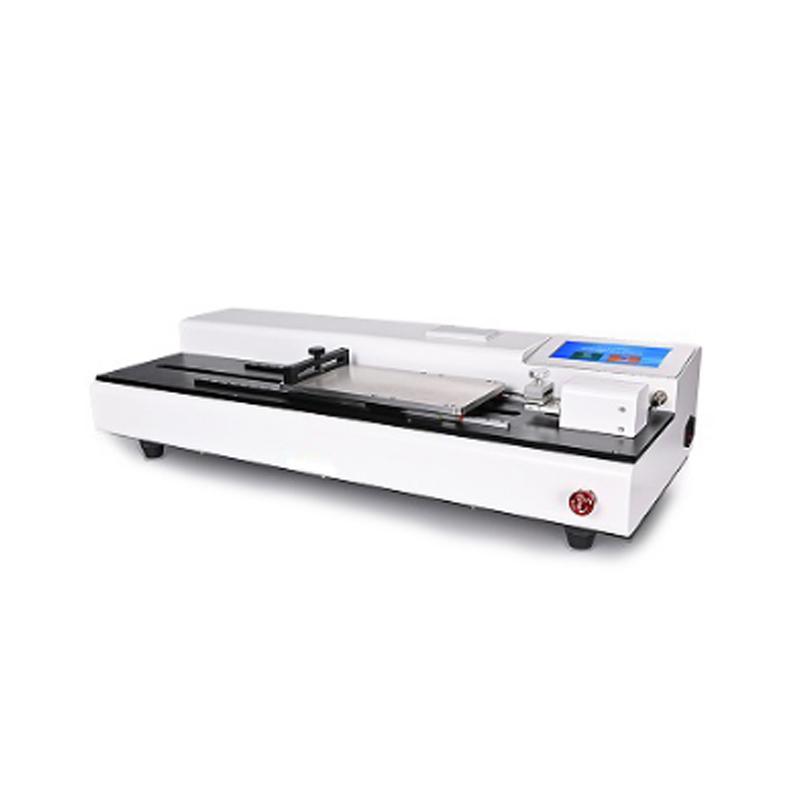

Friction Coefficient / Peel Tester GT-N35B

Friction Coefficient / Peel Tester GT-N35B

Application:

COF tester has dual test functions of friction coefficient and 180° peel strength, that is, it can meet various national standards and other international standard methods to test the static friction coefficient and dynamic friction coefficient of plastic films, sheets, foils, paper, cardboard, woven bags, fabric styles, metal composite belts for communication cables and optical cables, conveyor belts, textiles, and papermaking. The friction coefficient/peel tester can also meet the small force peel strength determination of various adhesive composite products, medical patches, release paper, protective films, mobile phone touch screens and other products.

Friction coefficient: Lay one of the two film materials involved in the test flat on the test table, and fix the other on a slider of a certain weight. Place the two test surfaces flat together, and move the two surfaces relative to each other under a certain contact pressure. Record the required friction force. The test force divided by the weight of the slider is the friction coefficient value.

Peel test: Place the test sample adhesive surface against the standard test plate, roll it three times with a standard pressure roller, clamp it on the peel tester, peel the sample and the test plate at 180°, and the force sensor records the force value during the peeling process. The average force value divided by the sample width is the peel strength.

Advantages

• COF testing equipment two test modes: peeling and friction coefficient.
• Non-magnetic design of the test table fully meets the standard requirements.
• Imported microcomputer control technology, open structure, friendly human-machine interface operation, simple and convenient to use.
• Precision screw drive, stainless steel panel, high-quality stainless steel guide rails and reasonable design structure ensure the stability and durability of the instrument.
• High-precision force sensor, measurement accuracy better than 0.5 level.
• Precision differential motor drive, smoother transmission, lower noise, more accurate positioning, better repeatability of test results.
• 7-inch LCD touch screen, English, real-time curve display, fully automatic measurement, with test data statistical processing Function.
• High-speed micro printer prints out, prints quickly, has low noise, does not need to change ribbon, and is easy to change paper rolls.
• Uses a slider running device and a fixed-point force method for the sensor to effectively avoid errors caused by movement vibration of the sensor.
• The double-guide plate dynamic design is more stable, and multiple fixtures are flexible to choose; the slider stroke can be preset and has a wider adjustment range.
• Friction coefficients are available in Chinese standards, American standards, and free modes.
• Built-in dedicated calibration program, which is convenient for measurement and calibration departments (third parties) to calibrate the instrument.
• Friction Peel Strength Tester has the advantages of advanced technology, compact structure, reasonable design, complete functions, reliable performance, and easy operation.
