Furniture Universal Testing Machine For Desk GT-LD09

Furniture Universal Testing Machine For Desk And Tables

Brand:
GESTER
Item NO.:
GT-LD09
Order(MOQ):
1
Payment:
100% T/T in advance
Shipping Port:
Xiamen Port
Lead Time：
7-30 days

Inquire now

Product Detail

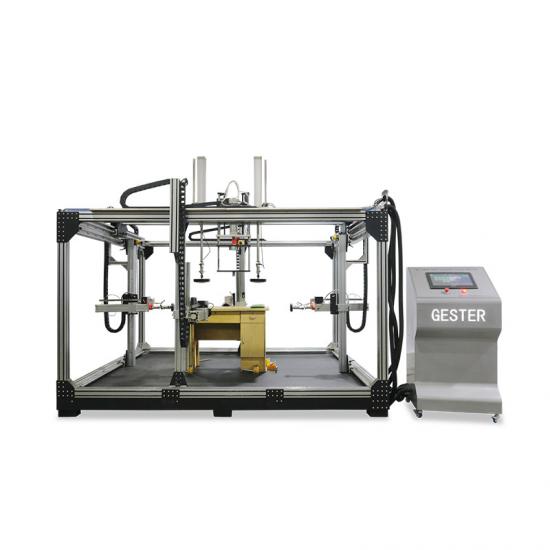

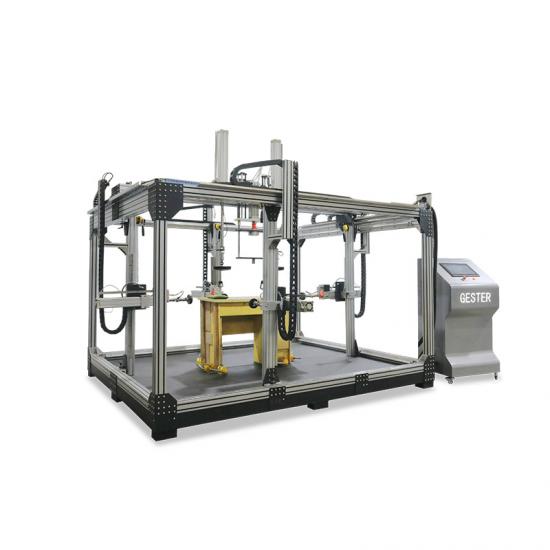

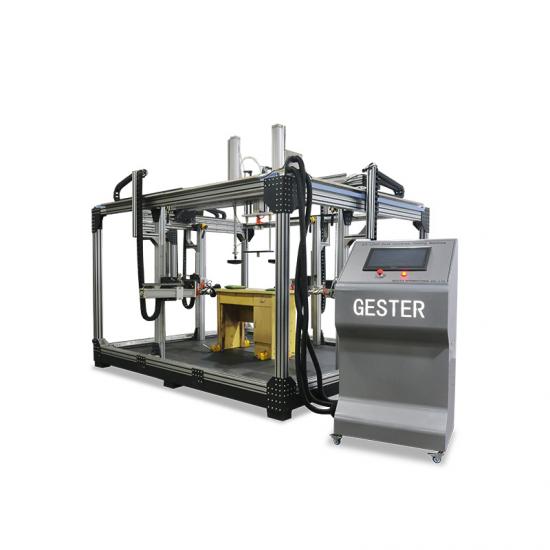

Furniture Universal Testing Machine For Desk GT-LD09

Product Introduction

Application:

This Furniture Universal Testing Machine is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.

Feature:

1.The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2.The frame adjustment part of the tester adopts pulley structure design. Can easily adjust the loading position to adapt to different specifications of the sample. Positioning handle makes the positioning easier and improve the efficiency.
3.The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4.PLC controller to control the actions of the instrument; the operation is intuitive and simple.
5.Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6.Removable loading pad, can easily change the different loading pad to meet the different test requirements.

Key Specifications

Model	GT-LD09
Control mode	PLC control
The Max. length of specimen	3m
Force sensor	2.5KN
Drive mode	Servo motor+Cylinder
Machine Dimensions	320cm×250cm×200cm(L×W×H)
Test Standards	Desk: EN 1730-2012 Section 6.2, 6.3, 6.4, 6.5, 6.6, 7.2, 7.3, BS EN 15372-2016 Test1, Test2, Test3, Test5, Test6, Test8, Test10, AS NZS 4610.3-1999 Annex B, D, E, G, N, P, R AS NZS 4442-1997 Annex A, B, H, J

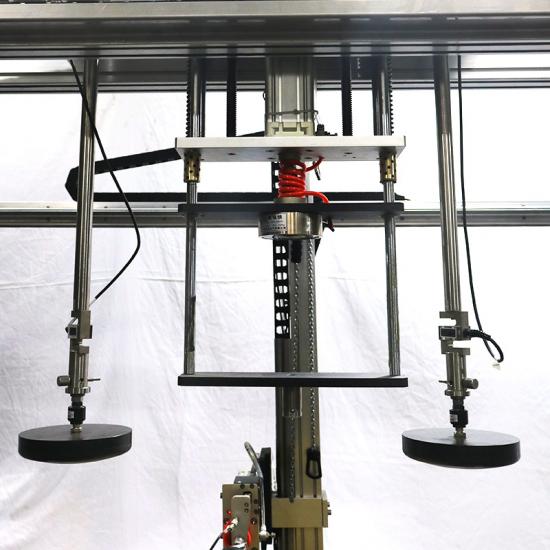

Testing Methods --- Desk Standard EN 1730	6.2 Horizontal static load test 6.3 Vertical static load tests 6.4 Horizontal durability and stiffness test 6.5 Vertical durability test 6.6 Vertical impact test 7.2 Stability under vertical load 7.3 Stability for tables with extension elements

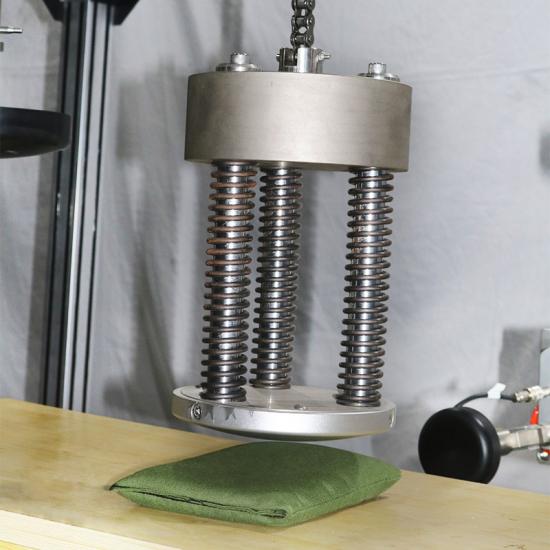

Standard Accessories	- Horizontal loading device 4 sets - Vertical loading device 2 sets - Impact device 1 set - Local loading pad 6 pcs - GT-LB01-6 Seat impactor device 1Set - Force sensor 6 pcs - Stoppers 4 pcs
