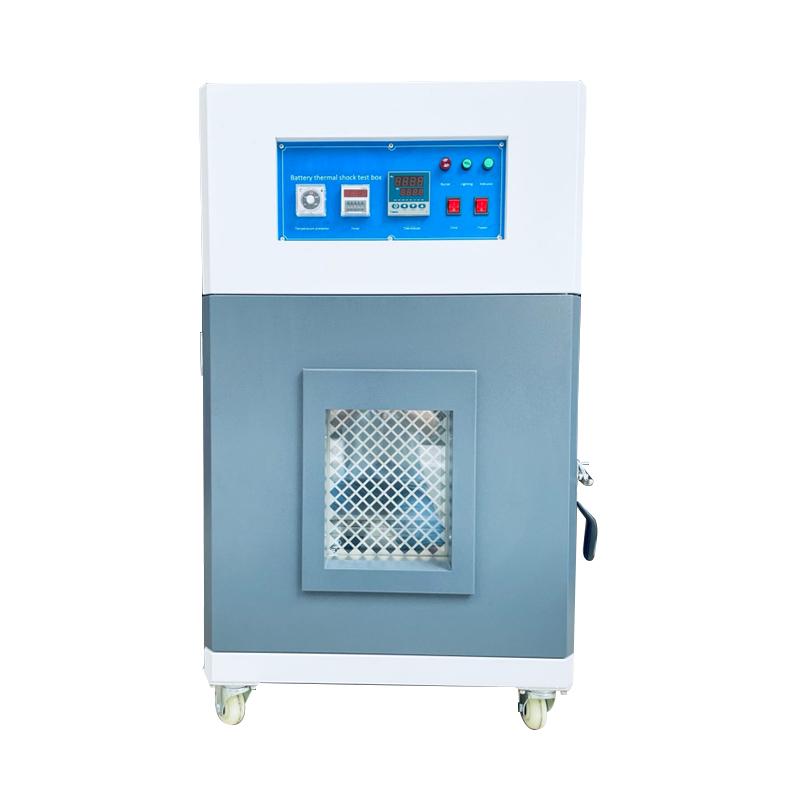

Thermal Abuse Case Stress Test Chamber GT-I13
Product Introduction
This battery testing chamber mainly used for furnace heat test, heating test and other battery safety performance detection.
Standards:
GB 31241-2022 Safety Requirements for Lithium-Ion Batteries and Battery Packs for Portable Electronic Products
IEC62133
UL1642
GB 38031
Standard Requirement:
Fully charge the battery according to the specified test method and place it in the test chamber. The test chamber heats up at a rate of (5±2)℃/min, and maintains a constant temperature of 130℃±2℃ for 30 minutes after reaching the temperature.
Acceptance Criterion: The battery shall not catch fire or explode.
Feature
-
Adopts PID control system, intuitive and easy to operate, with full automatic constant temperature and rapid temperature compensation function.
-
Thermal Abuse Case Stress Test Chamber equipped with over-temperature protection and automatic power-off system for over-load.
-
New high temperature resistant long-shaft motor.
-
Four casters at the bottom for easy moving and fixing.
-
Circulation system: forced horizontal air supply circulation.
-
Heating system: PID+SSR.
-
Timing function: power-off and alarm indication when the set temperature is reached and the holding time is elapsing.
Battery Thermal Abuse Test Chamber Key Specifications
|
|
Model
|
GT-I13
|
|
Temperature range
|
RT+10～+150℃ (adjustable at will, 130℃ for common use)
|
|
Temperature deviation
|
±2.0℃ (no-load)
|
|
Temperature accuracy
|
±0.5 °C
|
|
Temperature rise rate
|
5°C ± 2°C/min (linearly adjustable)
|
|
Storage shelf
|
Load capacity ≥30Kg; 1 shelf provided, made of SUS201 stainless steel
|
|
Inner chamber material
|
SUS304 stainless steel
|
|
Sealing strip
|
Corrosion-resistant silica gel
|
|
Temperature controller
|
Ambient temperature RT+10℃~150℃
Temperature rise rate: 5±2℃/min (linearly configurable)
Temperature fluctuation: 0.5℃
Temperature uniformity: ±2℃
|
|
Timing setting
|
99H59M59S can be set
|
|
Cooling method
|
Natural cooling
|
|
Test hole
|
1 reserved 50mm diameter test hole on the side of the equipment
|
|
Inner chamber dimension
|
W500×D500×H500mm
|
|
Overall dimension
|
W750×D700×H1350mm
|
|
Power supply
|
AC 220V (±10%), 50HZ
|
|
Power
|
2.2KW
|
|
Weight
|
Approx. 200Kg
|
|
|
|
