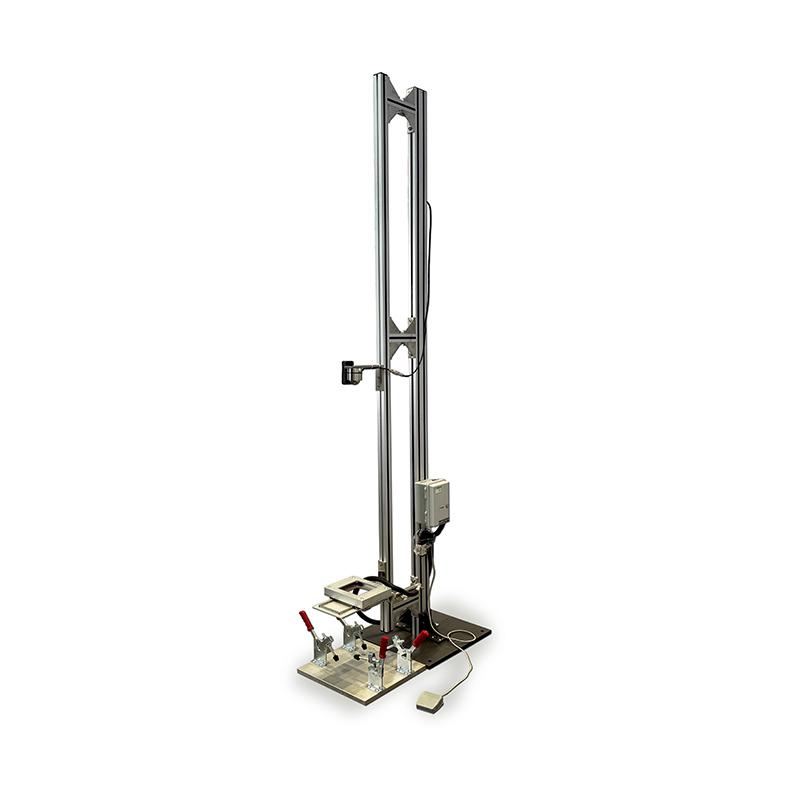

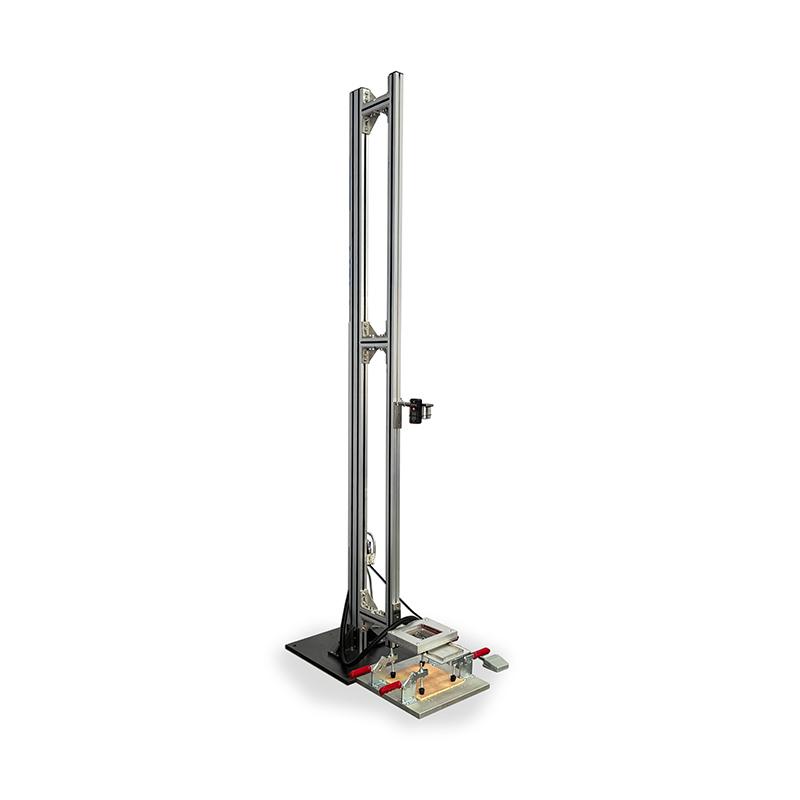

Large Ball Impact Tester GT-LD51

Product Introduction

Application

A specimen from the laminate under test, bonded to dry process fibreboard, is covered with a sheet of carbon paper and subjected to the impact of a steel ball which is allowed to fall from a known height. Impact resistance is expressed as the maximum drop height which can be achieved without incurring visible surface cracking or producing an imprint greater than a specified maximum diameter. This test is applicable only to flooring grade laminates.

Standards:

IS17637-2021Annex B, ISO4586-2-2018 Section 26, EN438-2-2016 Section 21

Feature

1. The main structure of the machine is made of aluminum, beautiful and easy to maintain.

2. Electromagnet and Foot Switch, easy to operate.

Key Specification

Model	GT-LD51
Drop Height	2,400mm-adjustable
Specimen clamp	270mm×270mm
Steel Ball	324g±5.0g with diameter 42.8mm±0.2mm
Power	1Phase AC 220V 50/60Hz
Dimensions	L900* W450* H2500mm
Weights	90kg
