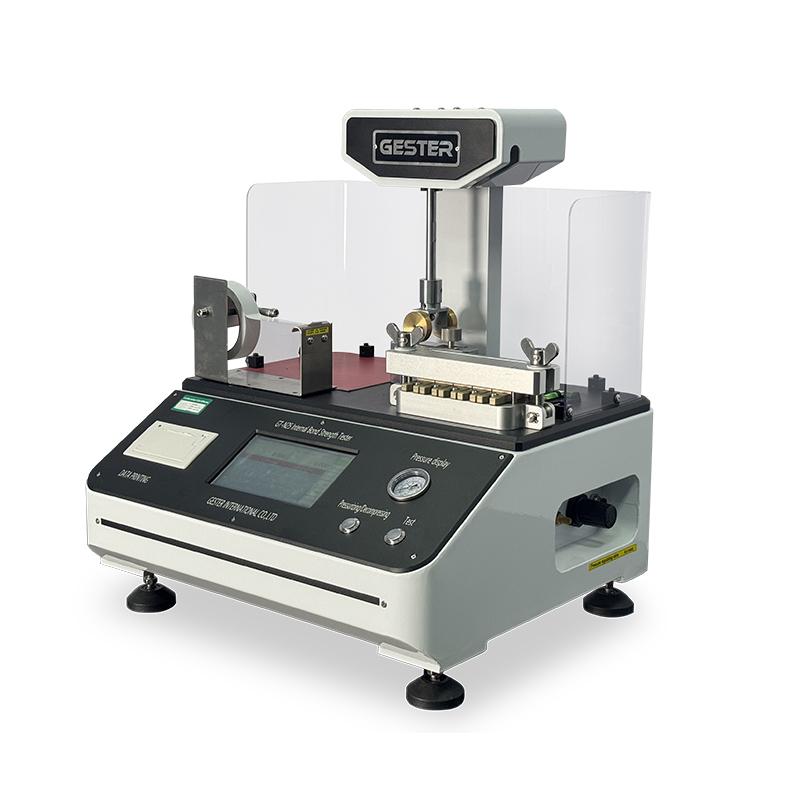

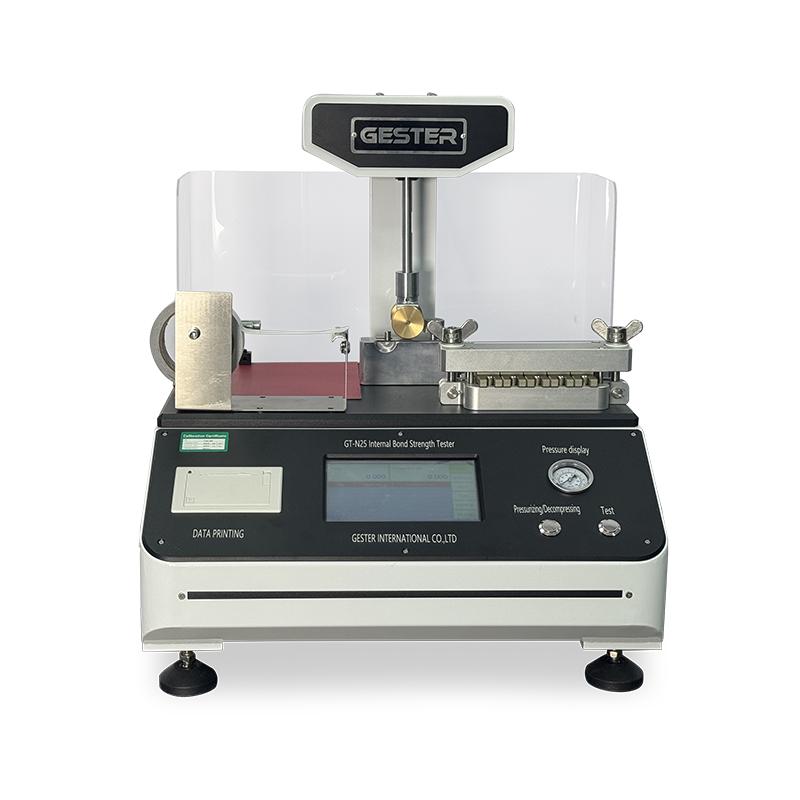

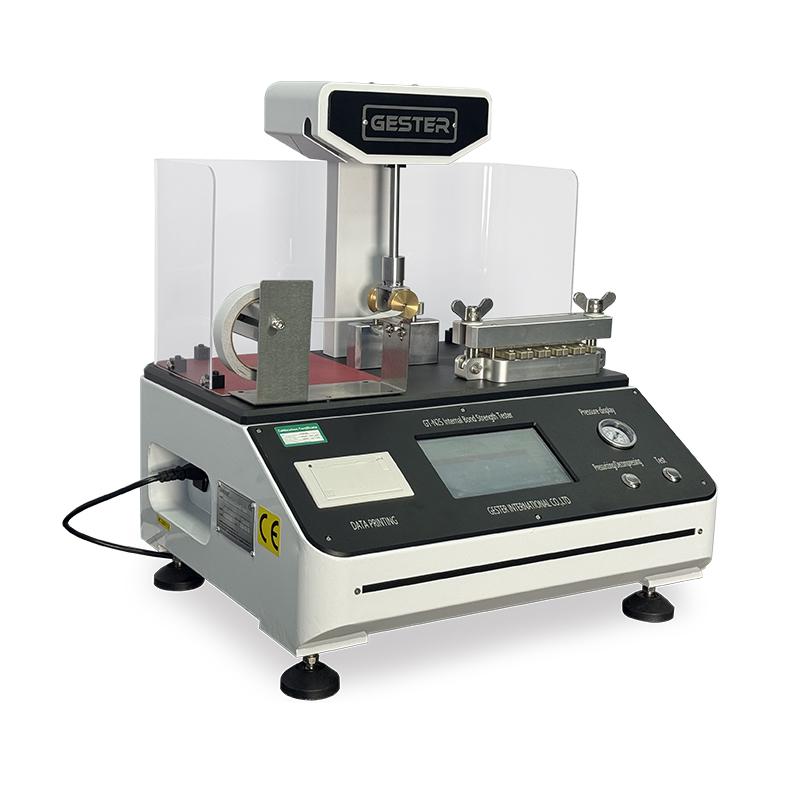

Internal Bond Strength Tester GT-N25

Product Introduction

Application:

This instrument is use to internal bond strength for paper and cardboard (among paper layers, paper internal bonding). It also can be used for internal bond strength testing for paper composite materials, film composite materials and other slice materials. Such as bobbin fibre paper, whiteboard, brown paper, linerboard, aluminum foil composite packaging materials etc.

Standards:

GB/T 26203, ASTM T569 pm-00, DIN ISO 16260, TAPPI-UM403, TAPPI T833pm-94, TAPPI T569pm-00

Principle:

The combination of double-sided tape+sample+ double-sided tape forms a sandwich structure, which is pressed between a metal anvil and an aluminum block. The inner surface of the upper part of the aluminum block is hit with a pendulum, causing the aluminum block to flip and damage the sample in the Z direction. Calculate the energy absorbed by the sample during the destruction process by measuring the position of the swing, expressed in J/m2.

Feature

Touch screen display,support switching between Chinese and English
Pressure adhesive sample, pressure can be adjusted automatically
Capable of statistical processing of test data
It has strong rigidity and stable structure, avoiding energy loss caused by vibration during testing

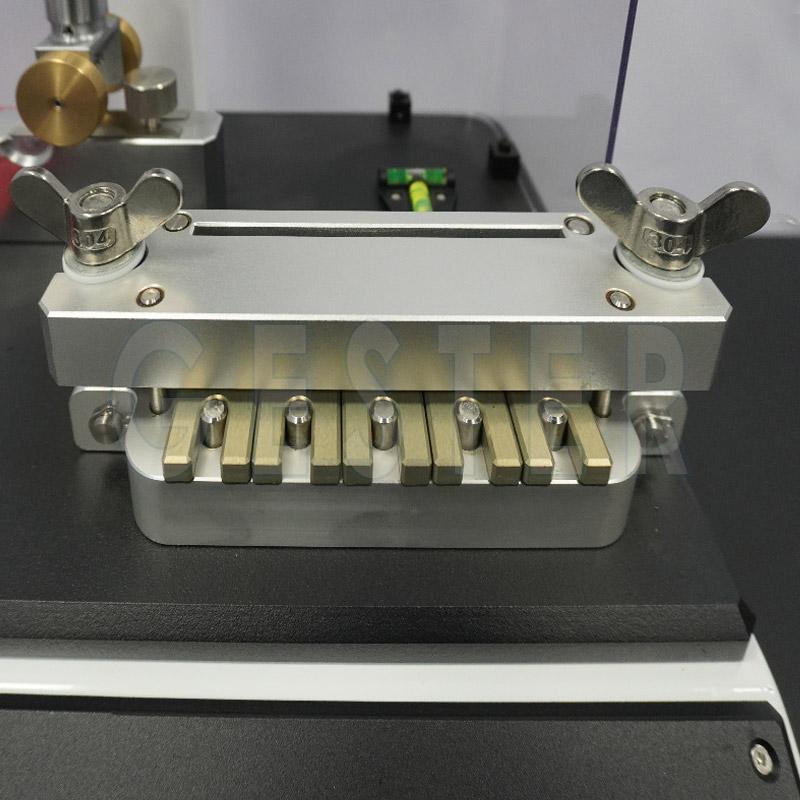

Reliable sample clamping and positioning, reducing errors caused by sample sampling
Can be connected with computer, automatically drawing real-time test data curve graph (optional purchase)

Key Specifications

Model	GT-N25
Specimen size	25.4mm×25.4mm
Sampling number	25.4×128mm, 5pcs / time
Specimen thickness	(0.1~5) mm
Impact angle	90°
Release way	Automatic release
Testing range	0~100)J/M²(A range: (0~500)J/M², B range: (500~1000)J/M²)
Indication error	A range: ±1J/M² B range: ±2J/M²
Accuracy	0.001J/M²
Unit	J/M2, lbf/in² interchange
Resolution	0.001lbf/in², 5000 pulse high precision encoder
Human-computer interface	7 inch touch screen control
Printing	Modular integrated thermal printer
Dimension	500m×400mm×650mm
Weight	≈70KG

Accessories

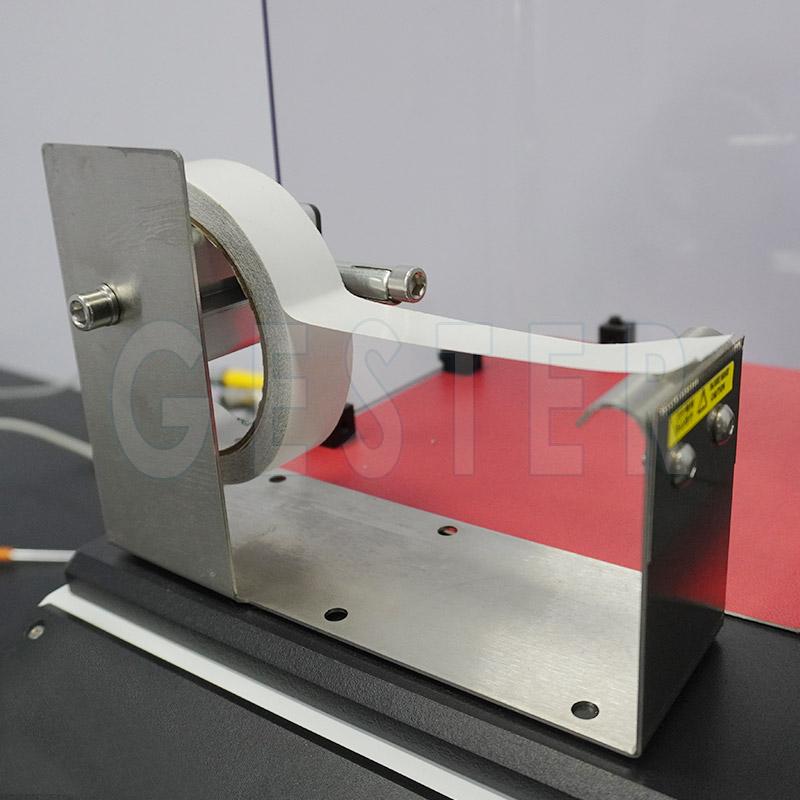

Standard accessories	1roll	Double-sided tape
Standard accessories	1roll	Thermal paper
Optional accessories	/	Sampler for inter layer bond
	/	Computer software
	/	Telecommunication cable
