Hook Loop Fastener Fatigue Tester is applicable for repeatedly open and close motion for touch and close fasteners.
Brand:
GESTERItem NO.:
GT-K19-2Order(MOQ):
1Lead Time：
10-30 daysProduct Detail

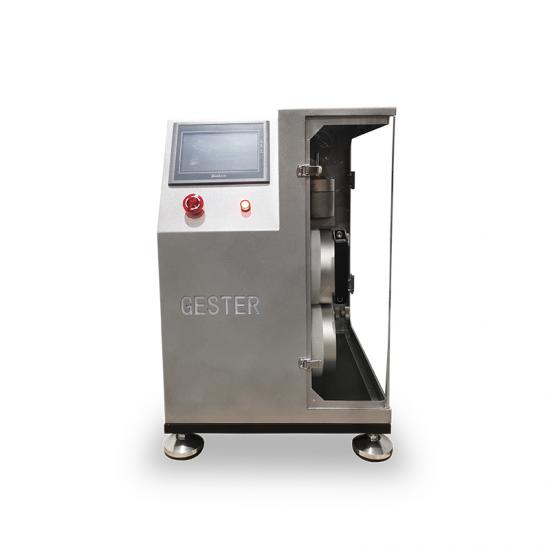

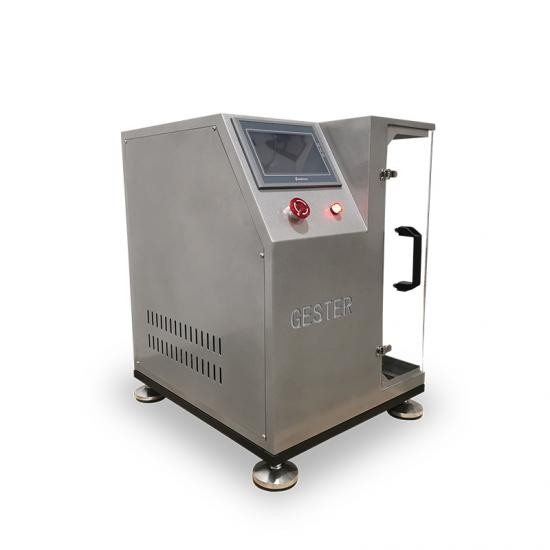

LCD Touch Control Hook Loop Fastener Fatigue Tester GT-K19-2
|
Application:
Hook Loop Fastener Fatigue Tester is applicable for repeatedly open and close motion for touch and close fasteners.
Standards: DIN EN 1414 |

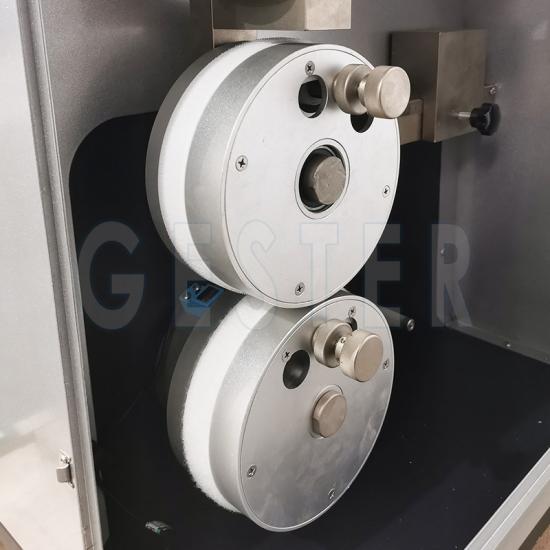

Install the hook and annular respectively on two rollers of this device. Stick them together under certain load and to generate repeated opening and closing motion through a certain times of forward and reversal rotating. After that, remove the sample and determine its peeling and shear strength testing on tensile tester.
|
Model |
GT-K19-2 |
|
Control method |
LCD Touch screen controlled |
|
Sample dimension |
Length 540±10mm |
|
Upper idling drum |
Diameter 162.5±0.5mm |
|
Under driven drum |
Diameter 160±0.5mm |
|
Drum width |
110mm |
|
Clamp slot |
Width 4mm, length about 95 mm |
|
Test speed |
60±5r/min |
|
Reversal intervals |
30±5 s |
|
Test load |
1±0.1N/mm ( Total Range 5N~ 90N) |
|
Test times |
5000 cycles |
|
Power supply |
1∮AC 220V 50/60HZ |
|

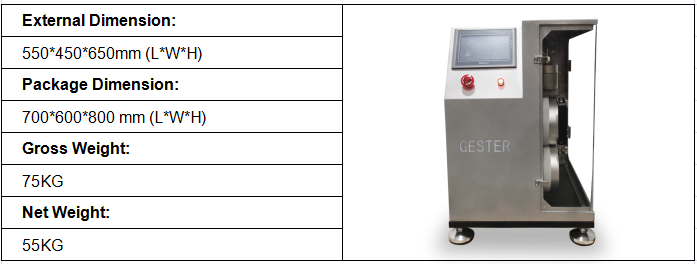

Dimensions( L x W x H ) |
55 cm ×45 cm ×65 cm |
|
Weight |
57kg |
|
Standards |
DIN EN 1414 |
Standard Accessories
|
10N Weights |
1 pc |
To exert load on rotating wheel |
|
20N Weights |
2 pcs |
To exert load on rotating wheel |
|
Power Line |
1 pc |
Current transport |
Optional Accessories
|
GT-K01 Universal Tensile Tester |
Optional |
Peeling and shear strength test |
