Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester GT-KB40

Seam Fatigue Tester is the measurement of failures in the three most commonly used upholstery seams - warp sewn to warp (wale to wale), filling sewn to filling (course to course), and warp sewn to filling (wale to course).

Brand:
GESTER
Item NO.:
GT-KB40
Order(MOQ):
1
Payment:
T/T, L/C
Lead Time：
10-30 days

Inquire now

Product Detail

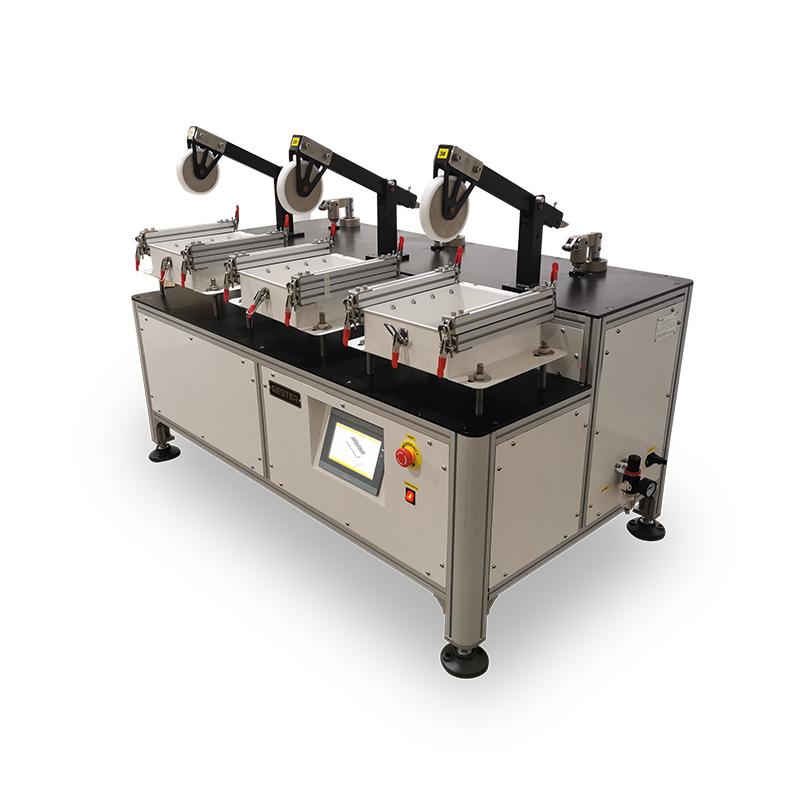

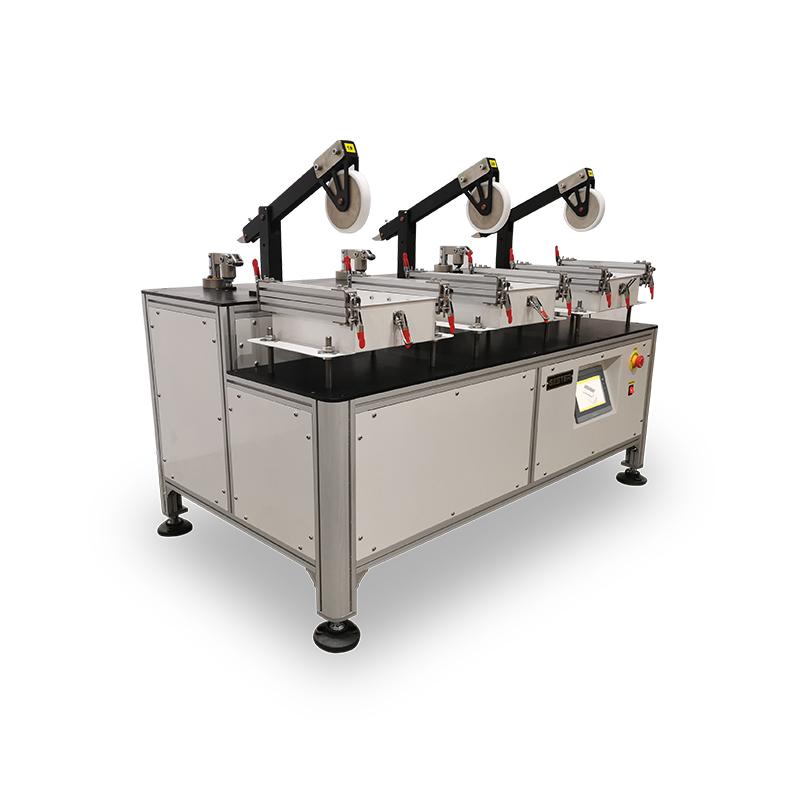

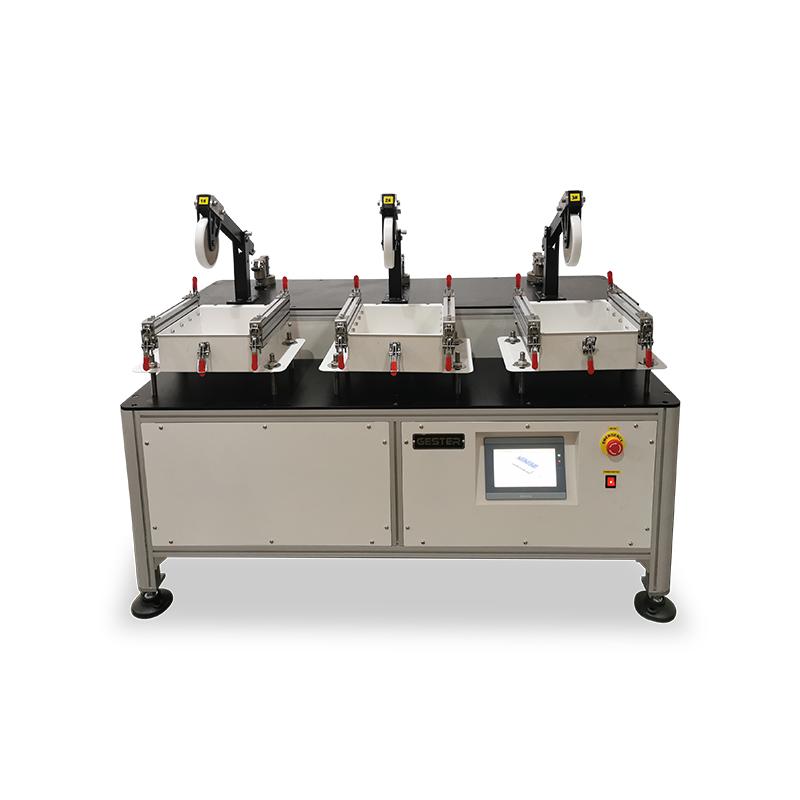

Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester GT-KB40

Product Introduction

Application:

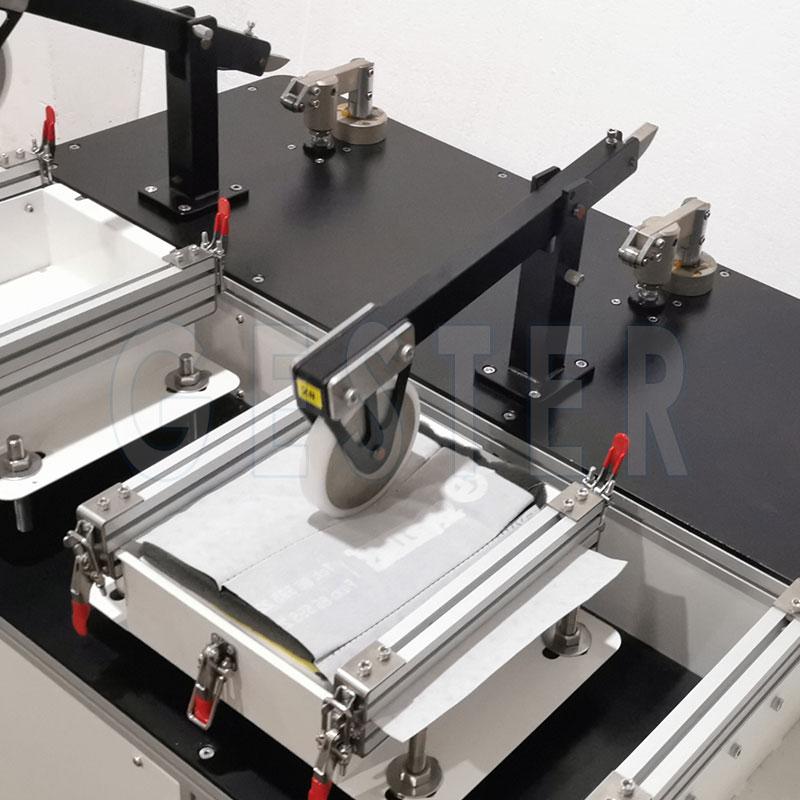

Sewn Seam Dynamic Fatigue Tester is to measurement of or visual evaluation of yarn slippage and other types of failures in the three most commonly used upholstery seams - warp sewn to warp (wale to wale), filling sewn to filling (course to course), and warp sewn to filling (wale to course). The stresses at the seam are created by imposing a cyclic, impact, and penetrating load which fatigues the seam construction.

Standards:
ASTM D4033

Feature

The stresses at the seam are created by imposing a cyclic, impact, and penetrating load which fatigues the seam construction.

Key Specifications

Model	GT-KB40
Test position	3
Drive mode	Cylinder drive
Impact speed	(0.4±0.03)Hz, (25±2)cycles/min
Testing times	7 000cycles
Impact wheel mass	3.75kg (8.25LB)
Dropping height	150 mm (6 in.)
Testing sample	190mmx255mm
Power supply	1∮AC 220V 50/60HZ
Dimensions	160x90x145cm
Weight	150kg
Standards	ASTM D4033

Accessories

Standards accessories	1set	Fixture
	1pc	Air pipe
	1pc	Power line
Optional accessories	Optional	Air compressor
